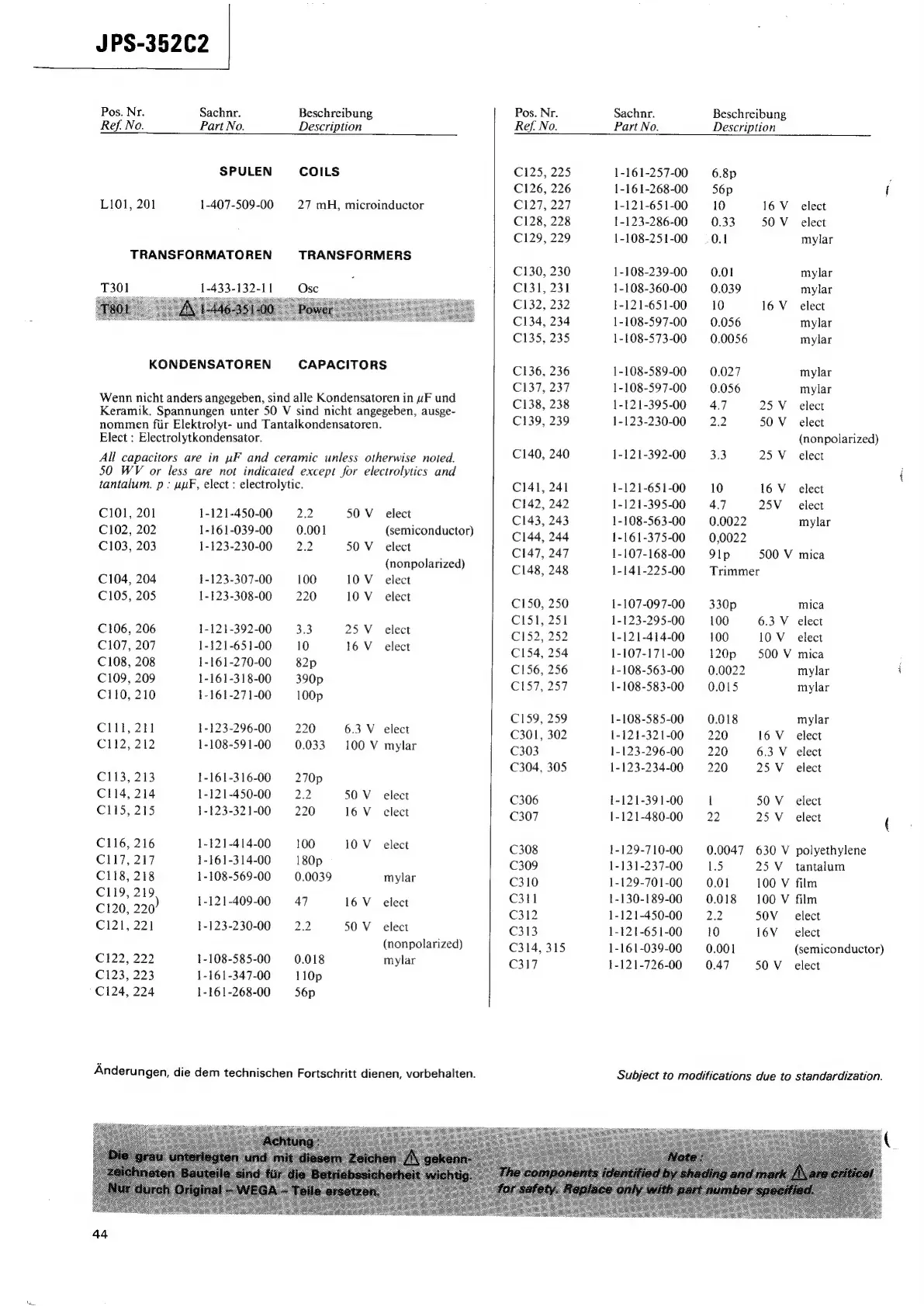

JPS-352C2
Pos. Nr. Sachnr. Beschreibung
Ref. No. Part No. Description
SPULEN COILS
L101, 201 1-407-509-00 27 mH, microinductor
TRANSFORMATOREN TRANSFORMERS
T301 1-433-132-11 Osc
KONDENSATOREN
CAPACITORS
Wenn nicht anders angegeben, sind alle Kondensatoren in uF und
Keramik. Spannungen unter 50 V sind nicht angegeben, ausge-
nommen fir Elektrolyt- und Tantalkondensatoren.
Elect : Electrolytkondensator.
All capacitors are in uF and ceramic unless otherwise noted.
50 WV or less are not indicated except for electrolytics and
tantalum. p : upF, elect : electrolytic.
C101, 201
C102, 202
C103, 203
C104, 204
C105, 205
C106, 206
C107, 207
C108, 208
C109, 209
C110, 210
C111, 211
C112, 212
C113, 213
C114, 214
C115, 215
C116, 216
C117, 217
C118, 218
C119, 219
C120, 220
C121, 221
C122, 222
C123, 223
C124, 224
Anderungen,
die
dem
technischen
Fortschritt
dienen,
vorbehalten.
1-121-450-00
1-161-039-00
1-123-230-00
1-123-307-00
1-123-308-00
1-123-296-00
1-108-591-00
1-161-316-00
1-121-450-00
1-123-321-00
1-121-414-00
1-161-314-00
1-108-569-00
1-121-409-00
1-123-230-00
1-108-585-00
1-161-347-00
1-161-268-00
2.2 50 V
0.001
2:2 50 V
100 10 V
220 10 V
3:3 25 V
10 16V
82p
390p
100p
220 6.3 V
0.033 100 V
270p
2.2 50 V
220 16 V
100 10V
180p
0.0039
47 16 V
2.2 50 V
0.018
110p
56p
elect
(semiconductor)
elect
(nonpolarized)
elect
elect
elect
elect
elect
mylar
elect
elect
elect
mylar
elect
elect
(nonpolarized)
mylar
Pos. Nr. Sachnr. Beschreibung
Ref. No. Part No. Description
€1255,225 1-161-257-00 6.8p
C126, 226 1-161-268-00 56p
C127, 227 1-121-651-00 10 16V
C128, 228 1-123-286-00 0.33 50 V
C129, 229 1-108-251-00 = 0.1
C130, 230 1-108-239-00 0.01
C131, 231 1-108-360-00 0.039
C132, 232 1-121-651-00 10 16 V
C134, 234 1-108-597-00 0.056
C135, 235 1-108-573-00 0.0056
C136, 236 1-108-589-00 0.027
C137, 237 1-108-597-00 0.056
C138, 238 1-121-395-00 4.7 25V
C139, 239 1-123-230-00 2.2 50 V
C140, 240 1-121-392-00 3.3 25V
C141, 241 1-121-651-00 10 16 V
C142, 242 1-121-395-00 4.7 25V
C143, 243 1-108-563-00 0.0022
C144, 244 1-161-375-00 0,0022
C147, 247 1-107-168-00 9Ip 500 V
C148, 248 1-141-225-00 Trimmer
C150, 250 1-107-097-00 330p
C151, 251 1-123-295-00 100 6.3V
C152, 252 1-121-414-00 100 10 V
C154, 254 1-107-171-00 120p 500 V
C156, 256 1-108-563-00 0.0022
C157, 257 1-108-583-00 0.015
C159, 259 1-108-585-00 0.018
C301, 302 1-121-321-00 220 16 V
C303 1-123-296-00 220 6.3 V
C304, 305 1-123-234-00 220 25V
C306 1-121-391-00 l 50 V
C307 1-121-480-00 22 25V
C308 1-129-710-00 0.0047 630 V
C309 1-131-237-00 1.5 25. V
C310 1-129-701-00 0.01 100 V
C311 1-130-189-00 0.018 100 V
C312 1-121-450-00 2.2 50V
C313 1-121-651-00 10 16V
C314, 315 1-161-039-00 0,001
C317 1-121-726-00 0.47 50 V
elect
elect
mylar
mylar
mylar
elect
mylar
mylar
mylar
mylar
elect
elect
(nonpolarized)
elect
elect
elect
mylar
mica
mica
elect
elect
mica
mylar
mylar
mylar
elect
elect
elect
elect
elect
polyethylene
tantalum
film
film
elect
elect
(semiconductor)
elect
Subject to modifications due to standardization.
