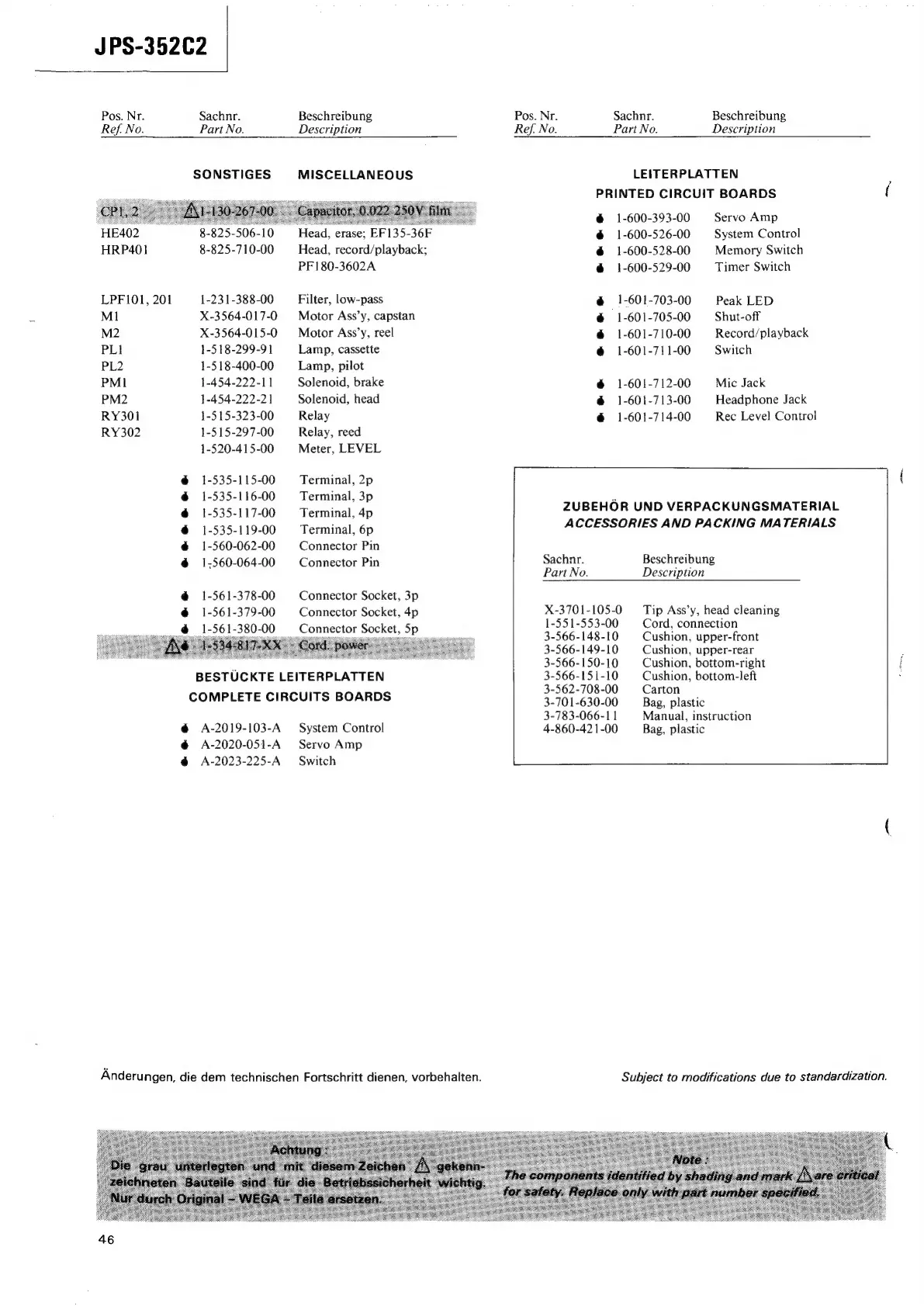

JPS-352€2
Pos. Nr. Sachnr. Beschreibung Pos. Nr. Sachnr. Beschreibung
Ref. No. Part No. Description Ref. No. Part No. Description
SONSTIGES MISCELLANEOUS LEITERPLATTEN
PRINTED CIRCUIT BOARDS
oh a . oo @ 1-600-393-00 Servo Amp
HE402 8-825-506-10 Head, erase; EF135-36F @ 1-600-526-00 System Control
HRP401 8-825-710-00 Head, record/playback; @ 1-600-528-00 Memory Switch
PF180-3602A @ 1-600-529-00 Timer Switch
LPF101, 201 1-231-388-00 Filter, low-pass @ 1-601-703-00 Peak LED
Mi X-3564-017-0 | Motor Ass’y, capstan @ 1-601-705-00 Shut-off
M2 X-3564-015-0 Motor Ass’y, reel @ 1-601-710-00 Record/playback
PLIi 1-518-299-91 Lamp, cassette @ 1-601-711-00 Switch
PL2 1-518-400-00 Lamp, pilot
PMI 1-454-222-11 Solenoid, brake 6 1-601-712-00 Mic Jack
PM2 1-454-222-2] Solenoid, head @ 1-601-713-00 Headphone Jack
RY301 1-515-323-00 Relay @ 1-601-714-00 Rec Level Control
RY302 1-515-297-00 Relay, reed
1-520-415-00 Meter, LEVEL
@ 1-535-115-00 Terminal, 2p
@ 1-535-116-00 Terminal, 3p sa
@ 1-535-117-00 Terminal, 4p ZUBEHOR UND VERPACKUNGSMATERIAL
@ 1-535-119-00 Terminal, 6p ACCESSORIES AND PACKING MATERIALS
@ = 1-560-062-00 Connector Pin
@ 1-560-064-00 | Connector Pin Sachnr. Beschreibung
Part No. Description
@ = 1-561-378-00 Connector Socket, 3p
@ 1-561-379-00 Connector Socket, 4p eh Lee Rick head cleaning
ae 3.566-148-10. Cushion, upper-front
3-566-149-10 Cushion, upper-rear
3-566-150-10 Cushion, bottom-right
BESTUCKTE LEITERPLATTEN 3-566-151-10 Cushion, bottom-left
COMPLETE CIRCUITS BOARDS a ees0On Bee oak
3-783-066-1 1 Manual, instruction
@ A-2019-103-A System Control 4-860-421-00 Bag, plastic
@ A-2020-051-A
@ A-2023-225-A
Anderungen, die dem technischen Fortschritt dienen, vorbehalten.
Servo Amp
Switch
Subject to modifications due to standardization.
