17

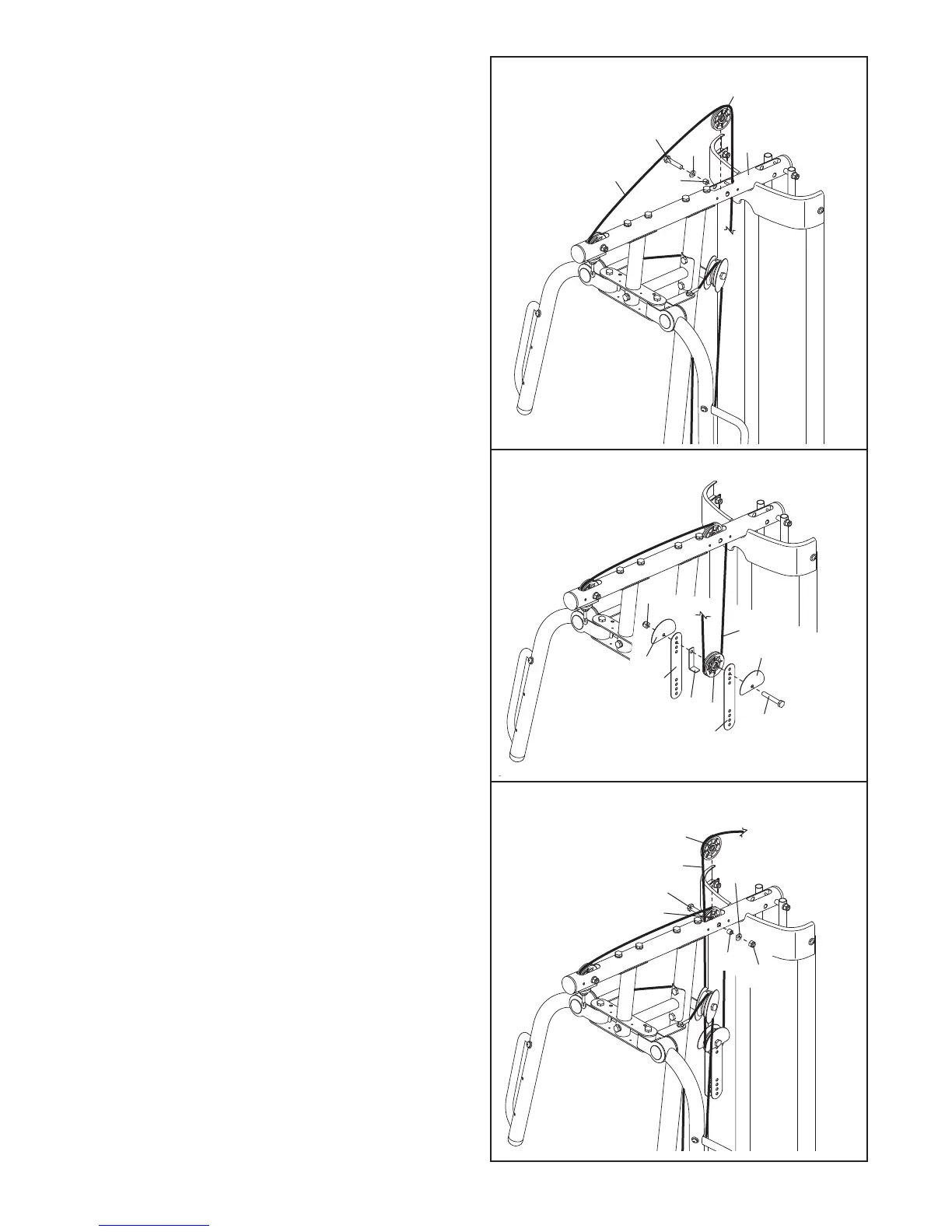

25. Route the Lat Cable (49) over a Thin Pulley (24)
a
nd down through the Top Frame (4). Hold the
Thin Pulley inside the Top Frame. Insert an M10 x
80mm Bolt (84) through an M10 Washer (80), a
19mm Spacer (67), the Top Frame, and the Thin
Pulley.
26. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) at the second hole from the
top of the two Pulley Plates (60) with an M10 x
50mm Bolt (97) and an M10 Nylon Locknut (77).
Make sure the Cable Trap and Half Guards are
oriented as shown.
27. Route the Lat Cable (49) up through the Top
Frame (4) and wrap the Cable over a Thin Pulley
(24). Pull the M10 x 80mm Bolt (84) out of the
Top Frame until it is flush with the first Thin Pulley
from step 24.
Do not remove the Bolt com-
pletely from the Top Frame.
Hold the second Thin Pulley (24) inside the Top
Frame (4) and attach it with the M10 x 80mm Bolt
(84), a 19mm Spacer (67), an M10 W
asher (80),
and an M10 Nylon Locknut (77).
2
5
26
77
55
55
49
97
4
24
84
80
67
49
60
56
48
60
27
67
77
80
84
49
24
1
13
To Next Page
