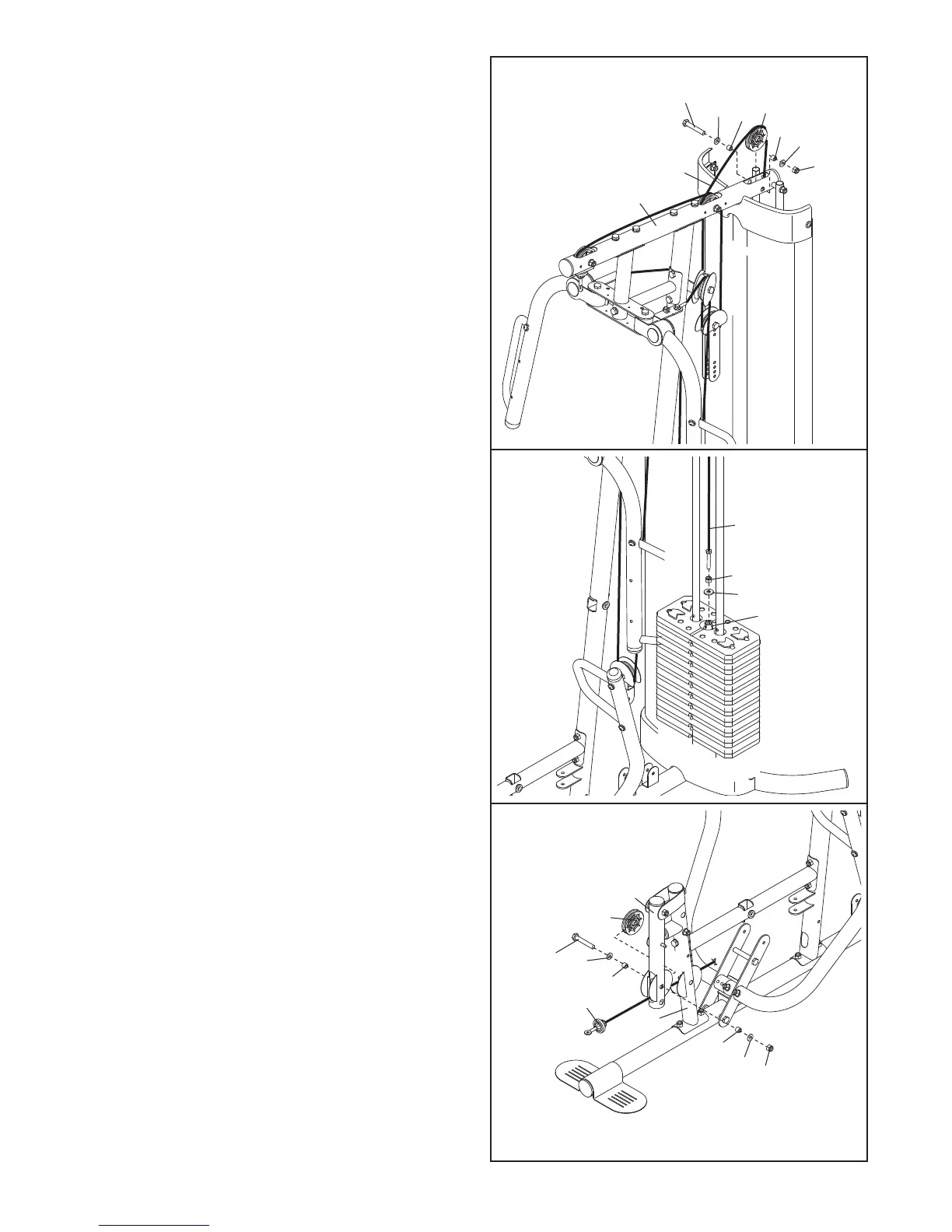

28. Wrap the Lat Cable (49) around a 90mm Pulley
(48) and route the Cable down through the Top
F
rame (4). Attach the Pulley to the Top Frame
with an M10 x 80mm Bolt (84), two M10 Washers
(
80), two 19mm Spacers (67), and an M10 Nylon
Locknut (77).
29. Set an M12 Large Washer (98) on top of the
Weight Tube (20). Thread the M12 Nut (112) all
the way onto the Lat Cable (49).
Thread the Lat Cable (49) into the Weight Tube
(20)
two turns. Tighten the M12 Nut (112)
against the M12 Large Washer (98).
30. Identify the Leg Lever Cable (51). Route the
Cable through the Leg Lever (12) and the Front
Leg (10).
Insert a 90mm Pulley (48) into the Leg Lever (12)
from behind it as shown. Attach the 90mm Pulley
with an M10 x 65mm Bolt (85), two M10 W
ashers
(80), two 13mm Steel Spacers (109), and an M10
Nylon Locknut (77).
