This chart is provided to help you identify the small parts used in assembly. The number in parentheses below
e
ach part refers to the key number of the part from the PART LIST near the end of this manual. IMPORTANT: If
you cannot find a part in the hardware kit, check to see if it has been preassembled.
38mm x 50mm Inner Cap (8)
38mm Square Inner Cap (16)
3/4" Round Inner Cap (7)
M6 x 48mm Screw (4)
50mm Round Outer Cap (9)
M6 x 16mm Screw (5)
M10 x 70mm Bolt (14)
M10 Locknut (13)

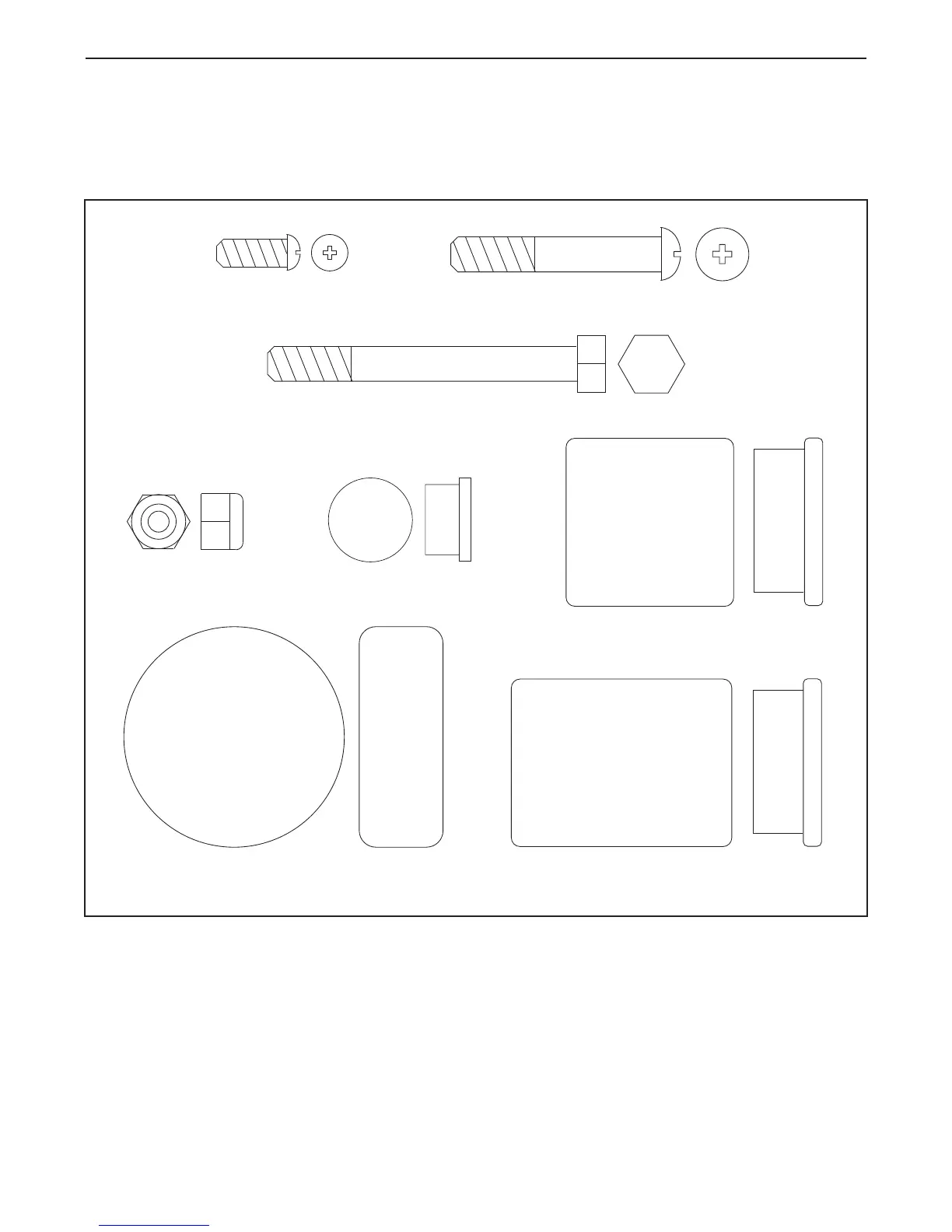

PART IDENTIFICATION CHART
