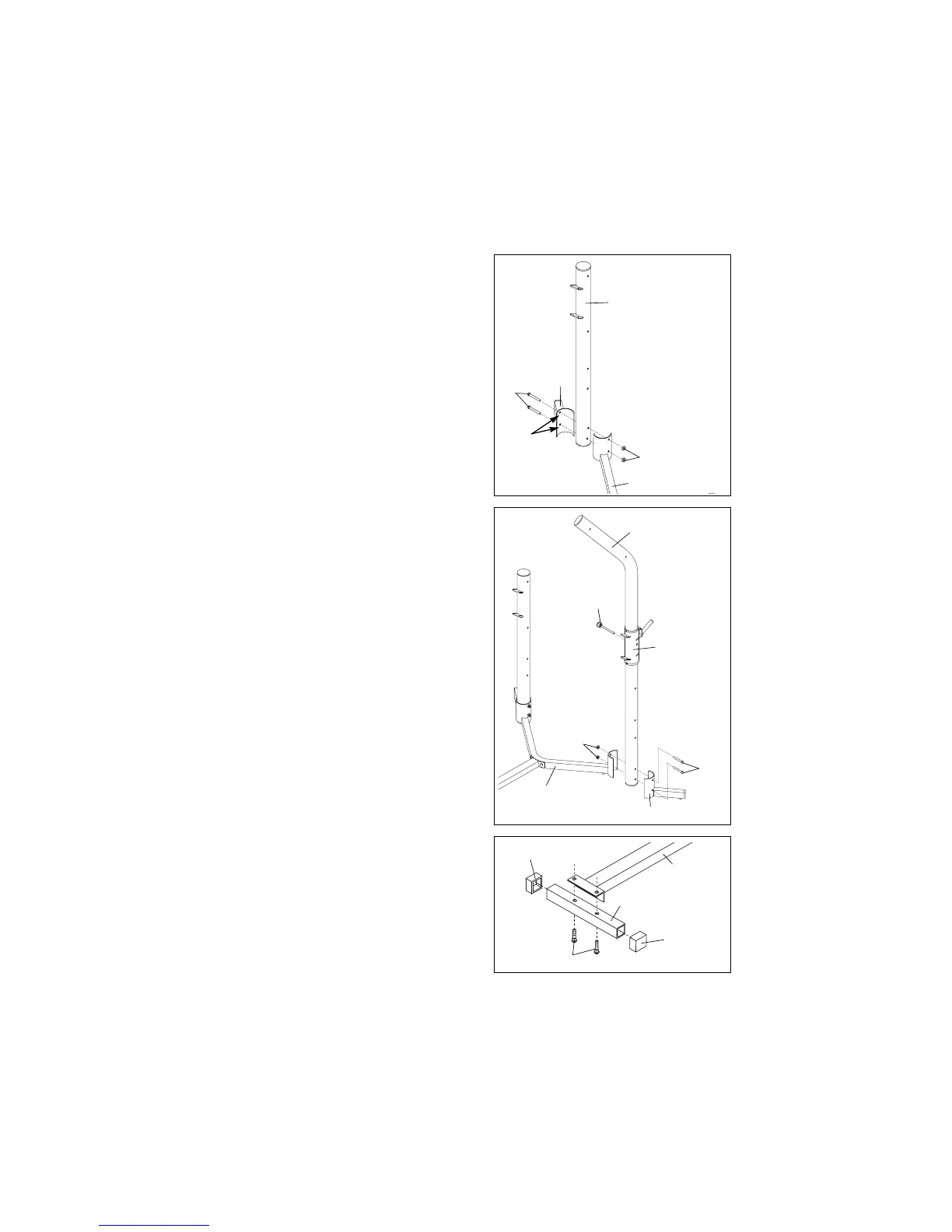

2. Identify the Right Base Extension (33) by looking at
the indicated holes. Orient the Base Extension as
shown in the drawing. Note: See the drawing on
page 4 to identify the right and left side of the
bench.
Attach the Upright (49) and the Right Base Extension
(33) to the indicated bracket on the Tower Base (57)
with two 3/8Ó x 3 1/4Ó Bolts (32) and two 3/8Ó Jamnuts
(11). Do not tighten the Jamnuts yet.
49
32
11
57
Holes
33
3. Lubricate the inside of the Weight Carriage (23). Slide
the Weight Carriage onto the Lat Upright (34) and
lock it in the indicated position with the Carriage Pin
(38).
Attach the Lat Upright (34) and the Left Base
Extension (27) to the indicated bracket on the Tower
Base (57) with two 3/8Ó x 3 1/4Ó Bolts (32) and two
3/8Ó Jamnuts (11). Do not tighten the Jamnuts yet.
3
34
38
57
11
27
23
32
2
4. Press a 1 1/2Ó x 1 1/2Ó Outer Cap (58) onto each end
of the Stabilizer (21).
Insert two 5/16Ó x 2Ó Carriage Bolts (22) up trough the
Stabilizer (21). Note: The rubber bumpers on the
Stabilizer must be facing the floor.
Place the Stabilizer (21) on the floor next to the Seat
Base (50). Gently lift up the end of the Seat Base and
place the bracket over the 5/16Ó x 2Ó Carriage Bolts
(22) in the Stabilizer.
4
58
22
21
58
50
