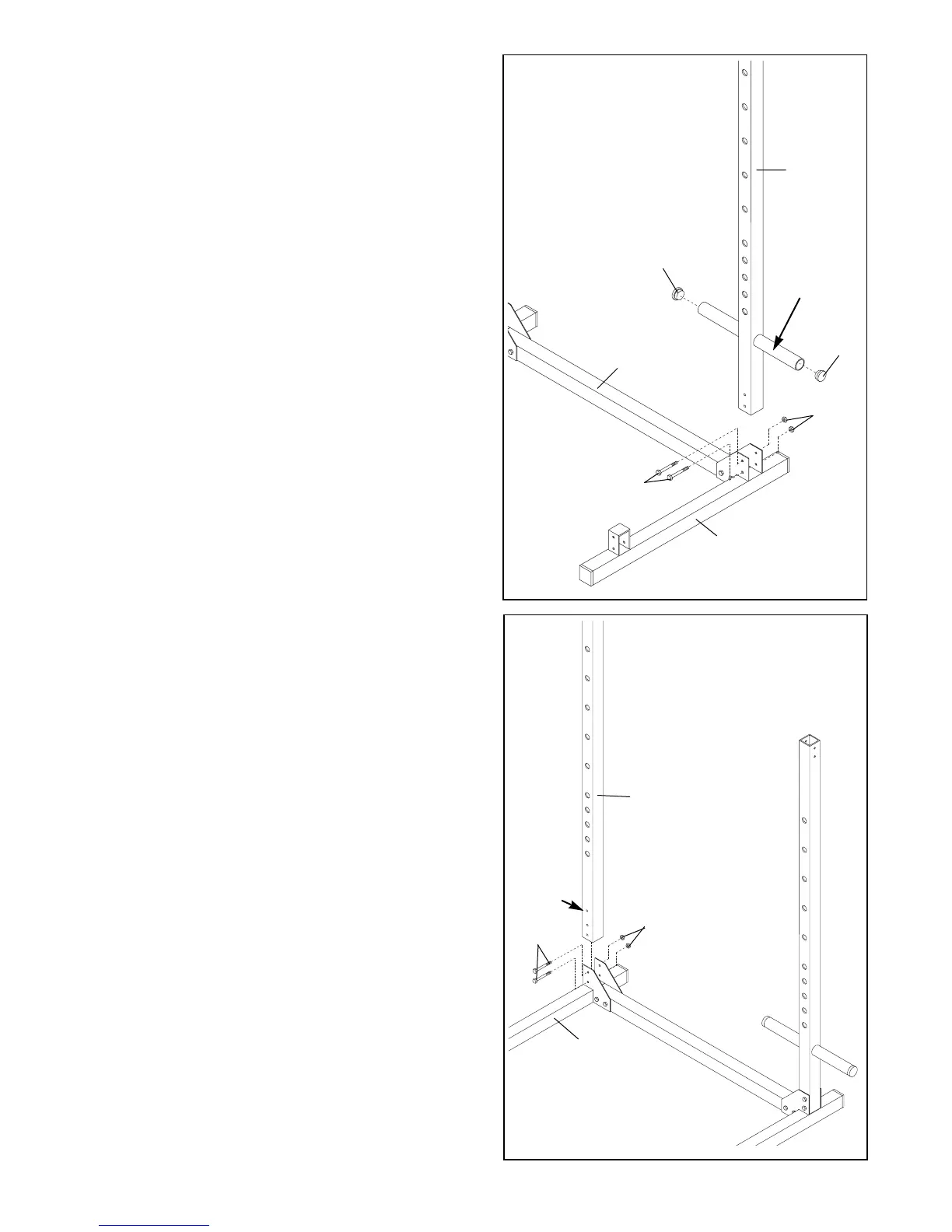

12. Identify the Right Rear Upright (60) which is the only
Upright with the indicated hole near the lower end.
Place the lower end of the Right Rear Upright (60)
inside the bracket on the Right Base (7) and secure it
with two M10 x 78mm Bolts (33) and two M10 Nylon
Locknuts (11). Note: Do not tighten the Nylon
Locknuts yet.
12
11. Identify the Left Rear Upright (25) which is the only
Upright with weight tubes on it.
Press a 48mm Round Inner Cap (54) into the end of
each weight tube.
Place the lower end of the Left Rear Upright (25)
inside the bracket on the Left Base (2) and secure it
with two M10 x 78mm Bolts (33) and two M10 Nylon
Locknuts (11). Note: Do not tighten the Nylon
Locknuts yet.
11
33
54
54
11
Hole
7
60
17
11
33
2
25
Weight
Tube
