Wel-Bilt M141300A - Page 38

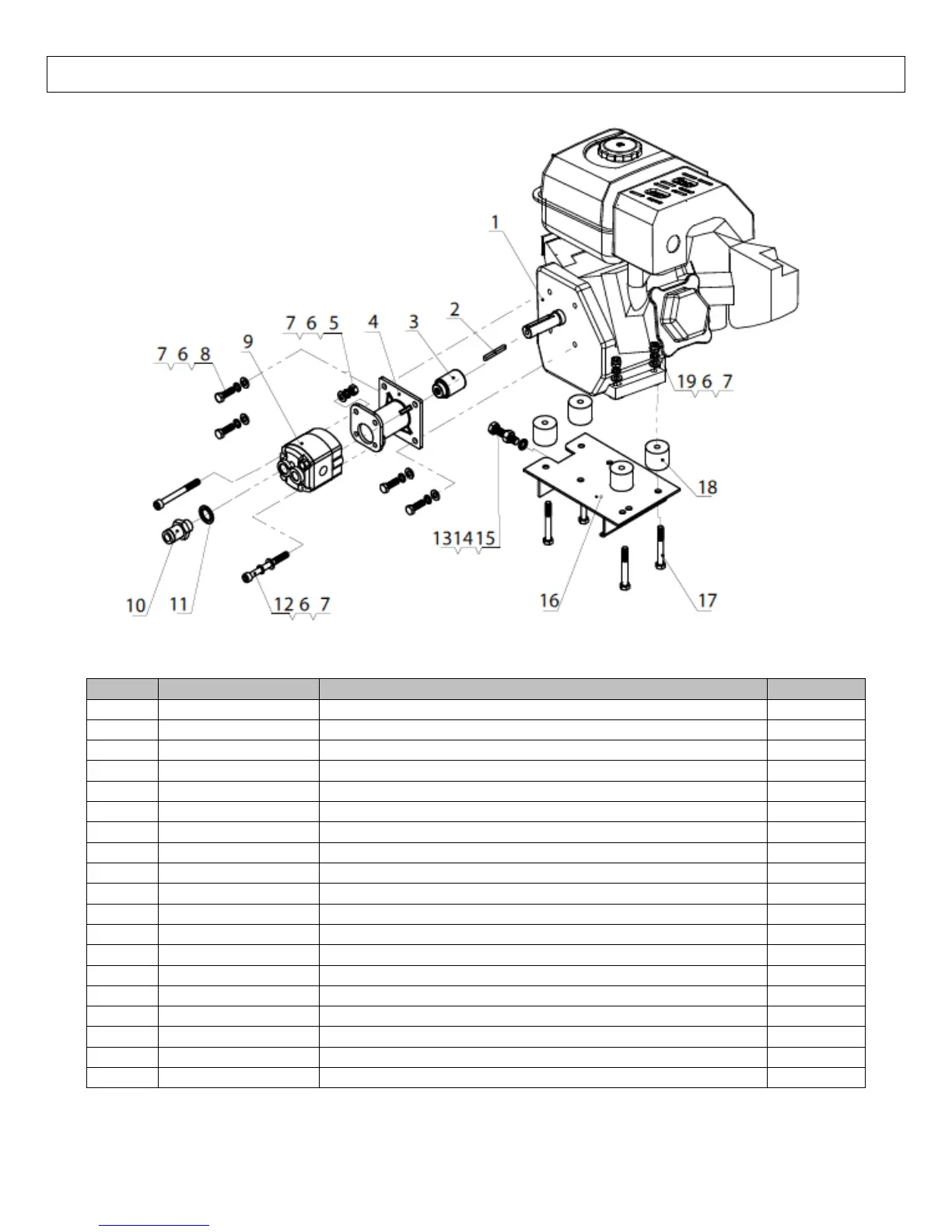

Parts Breakdown – Exploded View 141300 Rev. A
38
Item
Part Number
Description
Quantity
1
787570
Engine
1
2
Kit # 4
Key
1
3
Kit # 4
Engine Connector
1
4
Kit # 4
Gear Pump Stand
1
5
Kit # 4
Nut M8
1
6
Kit # 4/ Kit # 5
Lock Washer Ø8
10
7
Kit # 4 / Kit # 5
Flat Washer Ø8
10
8
Kit # 4
Hex Bolt M8x25
4
9
Kit # 4
Gear Pump
1
10
Kit # 4/ Kit #
Suction Hose Connector
1
11
Kit # 4/ Kit #
Seal Washer Ø18
1
12
Kit # 4
Inner Hex Bolt M8x80
2
13
Kit # 5
Lock Washer Ø10
1
14
Kit # 5
Nut M10
1
15
Kit # 5
Hex Bolt M10x45
1
16
Kit # 5
Engine Mounting Plate
1
17
Kit # 5
Hex Bolt M8x65
4
18
Kit # 5
Rubber Block
4
19
Kit # 5
Lock Nut M8
4
