weltico A400 - Page 4

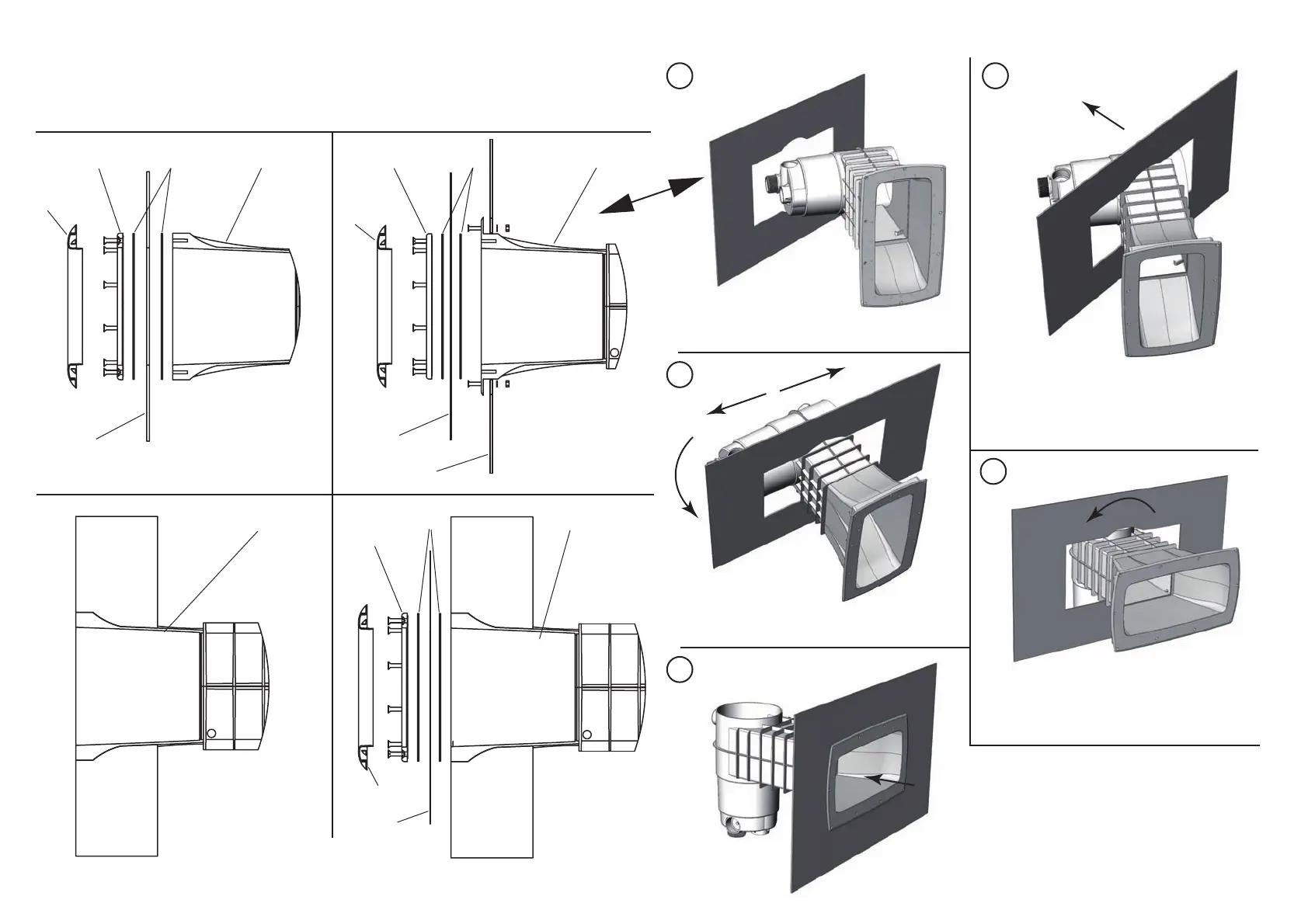

INSTALLATION OF THE
PANEL / LINER / SHELL / CONCRETE SKIMMER
PREFABRICATED OR
SHELL WALL
INSTALLATION
PANEL WALL
INSTALLATION
CONCRETE WALL
INSTALLATION
CONCRETE /
LINER WALL
INSTALLATION
93286
93386
93086
93286
CONCRETE
1
INSTALLING THE PANEL SKIMMER
A B
C
D
E
1
2
WALL
SKIMMER
SEAL
COUTER-FLANGE
SCREW CAP
LINER
SEAL
WALL
SKIMMER
LINER
SKIMMER
SEAL
SKIMMER
Step 1 : place the
skimmer in this position.
Step 2 : To engage
the skimmer rear side.
Step 3 : Swivel to slide
the skimmer .
Step 4 : swivel it into the
normal position.
Step 5 : place it in the clamping position.
SCREW CAP
SCREW CAP
COUTER-FLANGE
COUTER-FLANGE
CONCRETE
