12

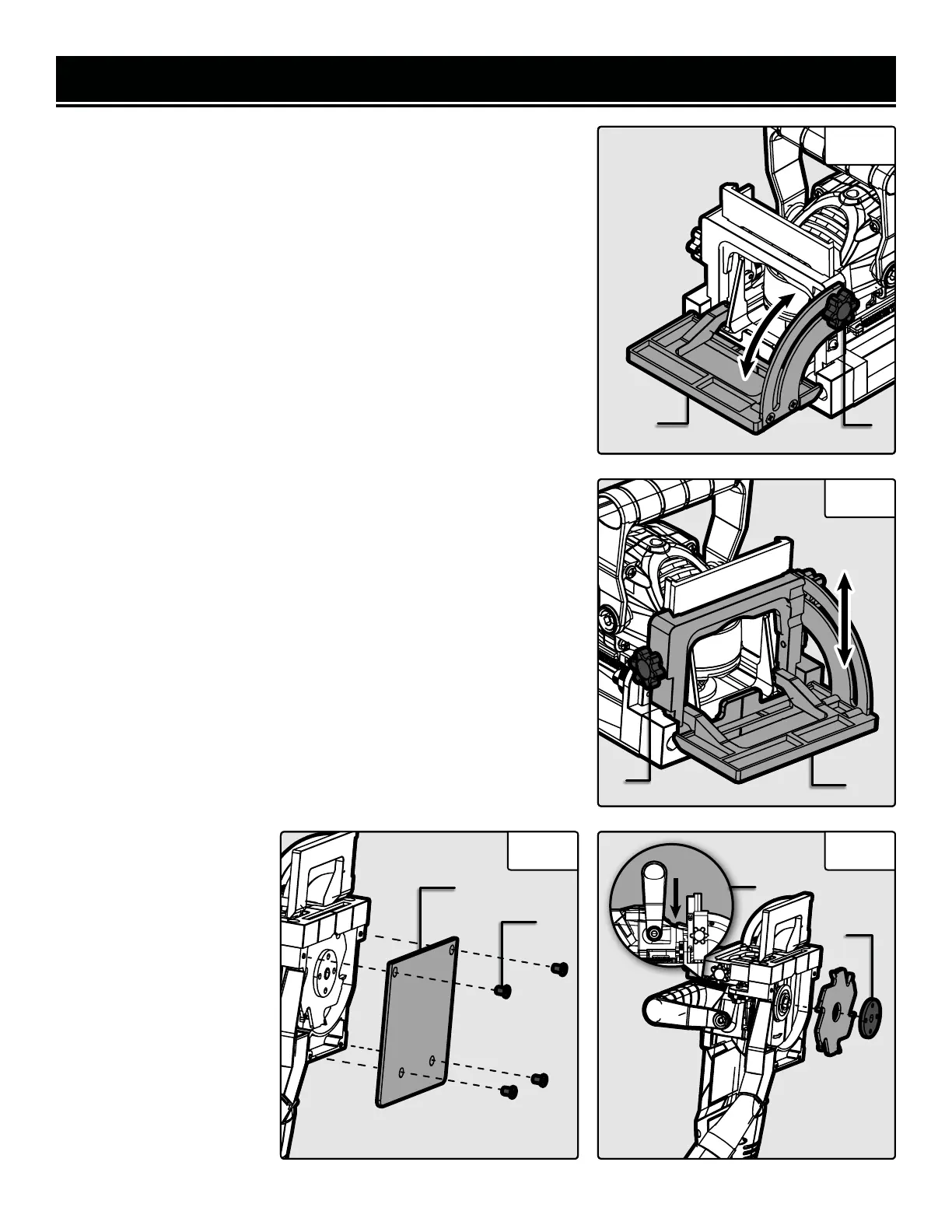

ASSEMBLY & ADJUSTMENTS
SETTING THE HEIGHT OF CUT
The height fence allows the biscuit slot to be cut at different heights.
The height of the cut is set by adjusting the angle fence and the height
fence.
1. Loosen the angle lock knob (Fig. 6 - 1) and rotate the angle fence
(Fig. 6 - 2) to 90° or the desired cutting angle.
2. Loosen the height locking knob (Fig. 7 - 1) to raise or lower the fence
assembly (Fig. 7 - 2) to the desired height.
3. Tighten the height lock knob. Check that the fence assembly is secure
before cutting into the workpiece.
CHANGING THE BLADE
1. Remove the four M4x6 screws (Fig. 8 - 1) and base plate (Fig. 8 - 2)
from the underside of the unit.
2. Lock the blade by pressing the spindle lock button (Fig. 9 - 1) on
the top of the unit and rotating the blade by hand until the spindle lock
button engages and the blade stops spinning. Use the spanner wrench
to loosen (counter-clockwise) and remove the outer flange (Fig. 9 - 2).
3. Replace the new blade on the spindle. Make sure to check that the
blade teeth are in the proper direction by checking the blade against the
arrows molded into the slide plate.
4. Replace the outer flange onto the spindle. Lock the blade by pressing
the spindle lock button and tighten the outer flange with the spanner
wrench.
5. Secure the base plate with the four screws.
1
2
Fig. 7
2
1
Fig. 6
Fig. 8 Fig. 9
2
1
1
2
