315 [12.4]
B
332 [13.07]
106.5 [4.19]
202 [7.95]
267 [10.51]
969 [38.15]
894 [35.2]
302 [11.89]
936 [36.85]
A
843 [33.19]
209 [8.23]
84 [3.31]
L
K
109 [4.29]
F
E
D
G
I
C
780 [30.71]
1204 [47.4]
1175 [46.26]
455 [17.91]
640 [25.2]70 [2.76] 70 [2.76]
220 [8.66]
33 [1.3]
84 [3.31]
260 [10.24]28 [1.1] 410 [16.14]
82 [3.23] 816 [32.12]
760 [29.92]
(
3

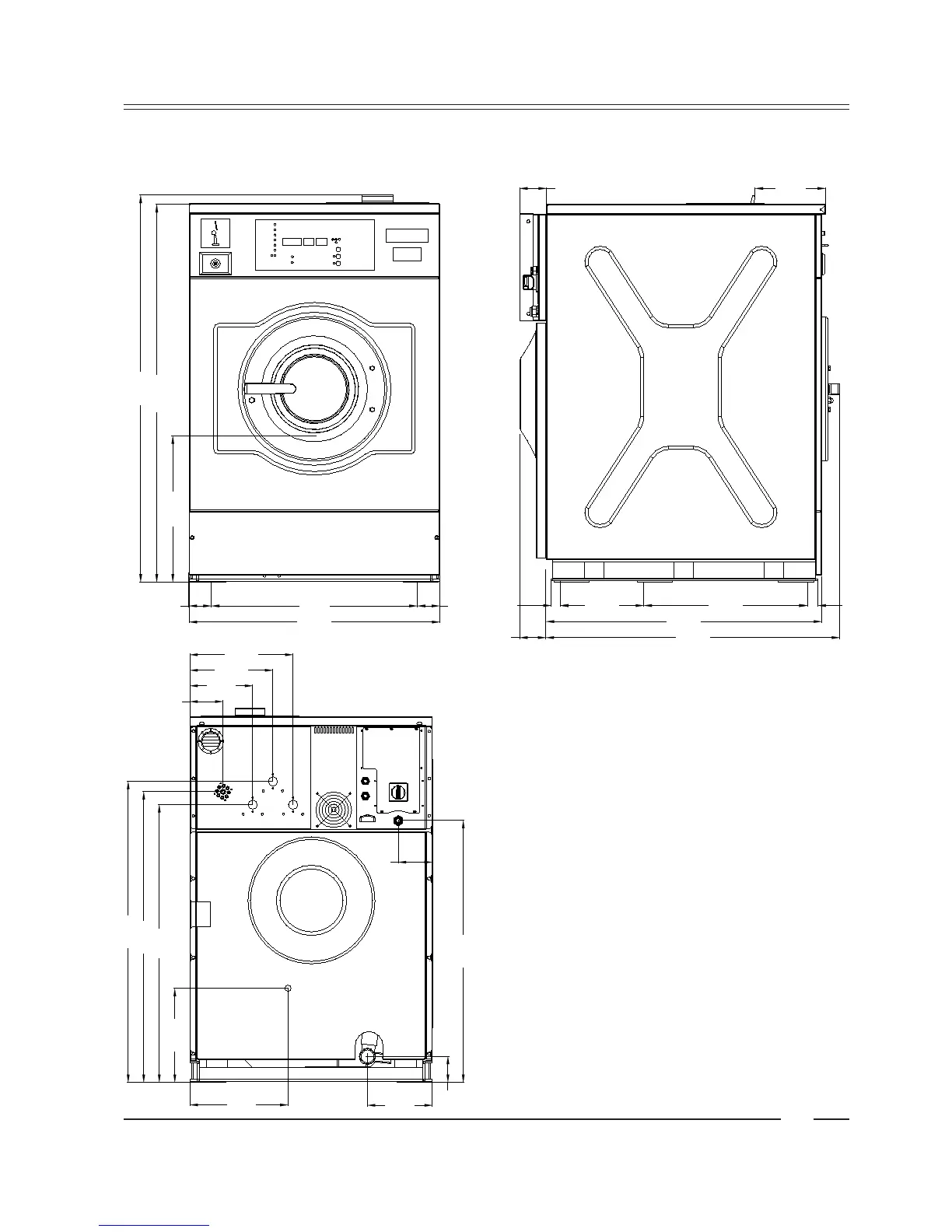

Dimensions W121E
A. Ventilation soap dispenser
B. Liquid soap connections
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Main switch
G.Electrical connections
I. Ventilation tub
K. Drain valve
L. Steam connections
Legend: metric mm [inches]
