Wesco W121E - Page 19

770 [30.31]
Ø
22 [Ø0.87]
260 [10.24]
28 [1.1]
33 [1.3]
70 [2.76]
510 [20.08]
831 [32.72]
70 [2.76] 640 [25.2]
780 [30.71]
4
)#

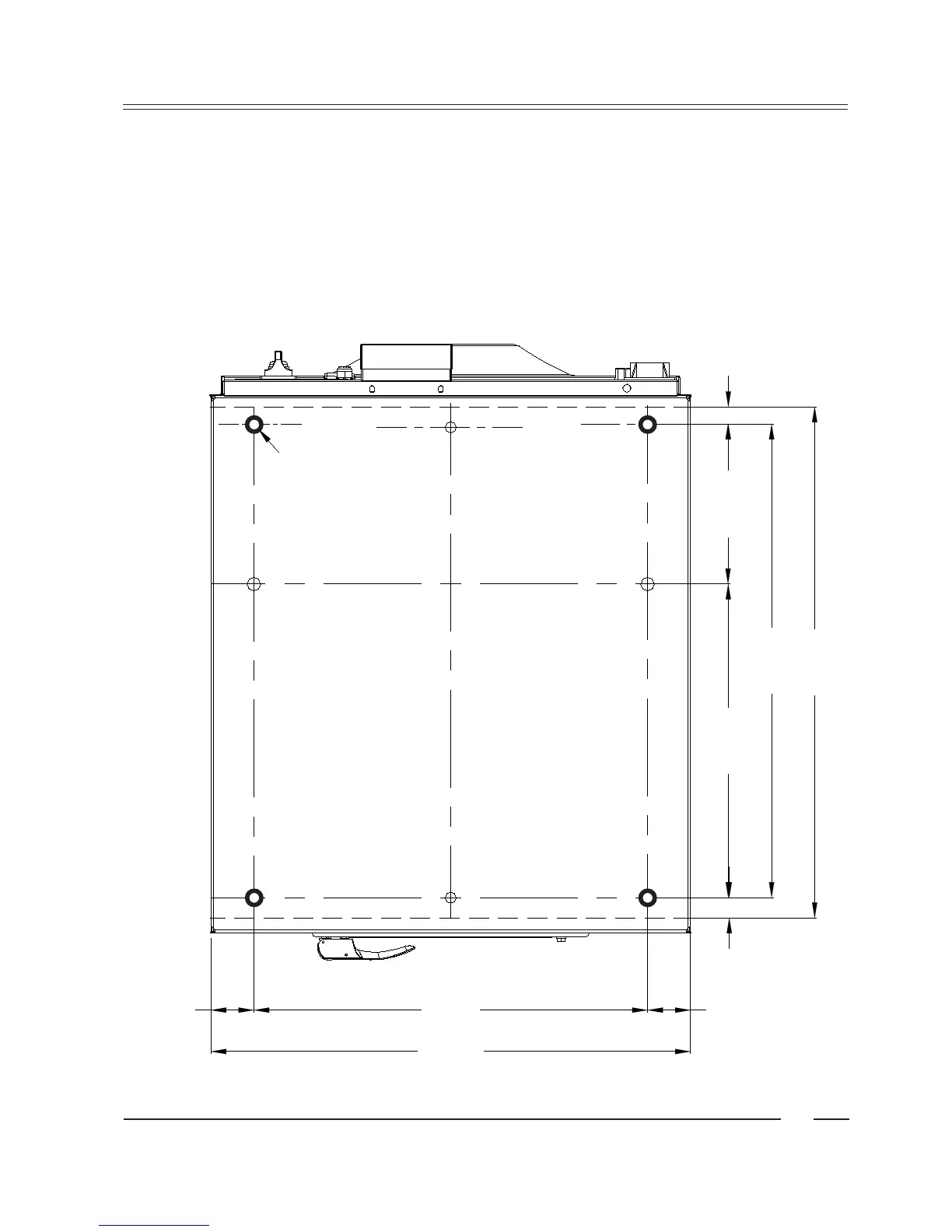

Mounting Bolt Hole Locations for machine W151E
Legend: metric mm [inches]
