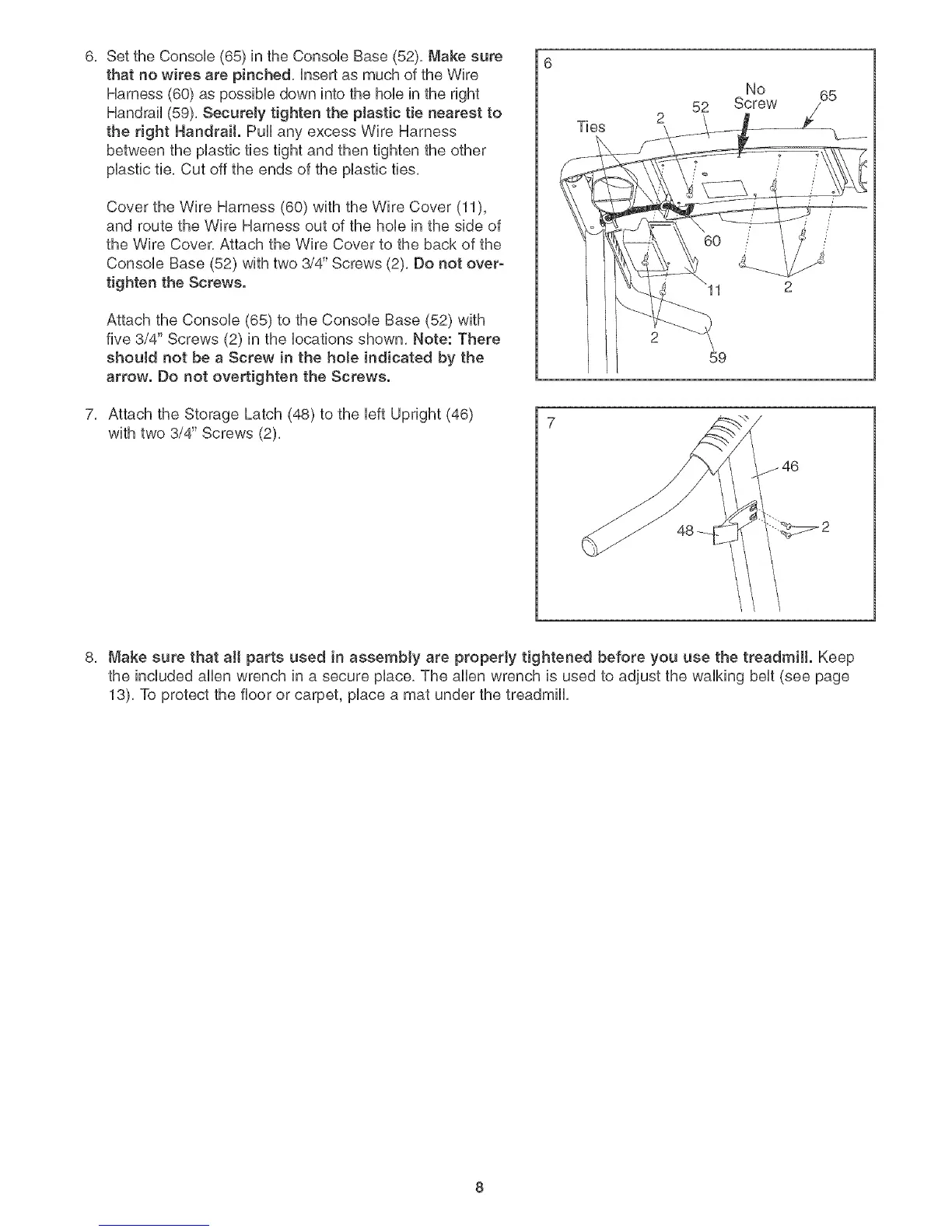

6, Set the ConsoUe (65) in the ConsoUe Base (52), Make sure
that no wires are pinched, Insert as much of the Wire
Harness (60) as possiMe down into the hoUein the right
Handrail (59), Securely tighten the plastic tie nearest to
the right Handrail, Pull any excess Wire Harness
between the pUasticties tight and then tighten the other
pUastictie, Cut off the ends of the pUasticties,
Cover the Wire Harness (60) with the Wire Cover (11),
and route the Wire Harness out of the hoUein the side of
the Wire Cover, Attach the Wire Cover to the back of the
ConsoUe Base (52) with two 3/4" Screws (2), Do not over-
tighten the Screws.
Attach the ConsoUe (65) to the ConsoUe Base (52) with
five 3/4" Screws (2) in the Uocations shown, Note: There
shouJd not be a Screw in the hole indicated by the
arrow, Do not overtighten the Screws,
7, Attach the Storage Latch (48) to the left Upright (46)
with two 3/4" Screws (2),
Ties
52
2
No 65
Screw
2
59
8, Make sure that aH parts used in assembly are properly tightened before you use the treadmill Keep
the included allen wrench in a secure place, The allen wrench is used to adjust the walking belt (see page
13), To protect the floor or carpet, place a mat under the treadmill,
