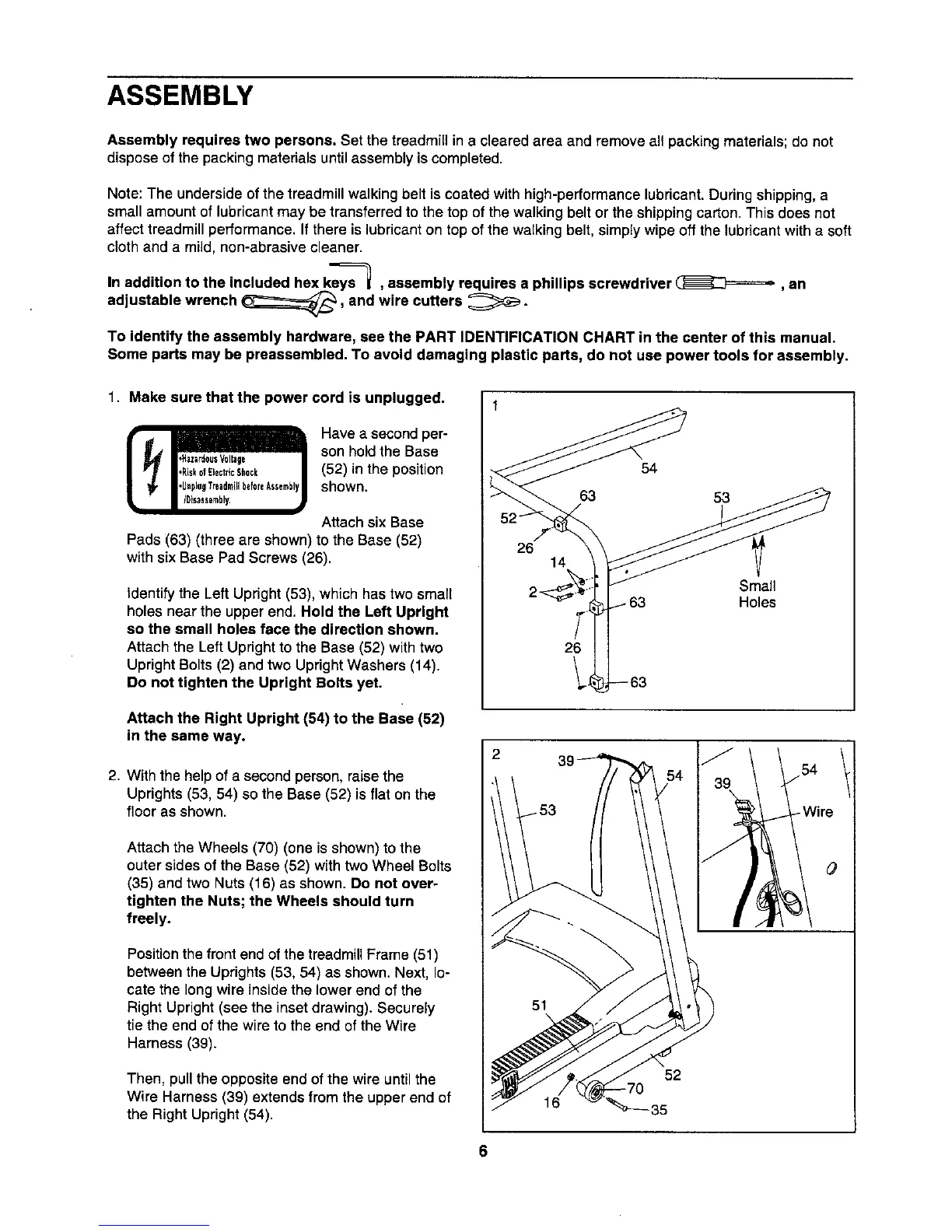

ASSEMBLY
Assembly requires two persons. Set the treadmill ina cleared area and remove all packing materials;do not
disposeofthe packingmaterialsuntilassembly iscompleted.
Note: The undersideof the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft
cloth and a mild, non-abrasive cleaner.
In addition to the included hex key-_s , assembly requires a phillips screwdriver (_, an
adjustable wrench _, and wire cutters _.
To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
Some parts may be preassembled. To avoid damaging plastic parts, do not use power tools for assembly.
1. Make sure that the power cord is unplugged.
Have a second per-
son hold the Base
(52) in the position
shown.
Attach six Base
Pads (63) (three are shown) to the Base (52)
with six Base Pad Screws (26).
Identify the Left Upright (53), which has two small
holes near the upper end. Hold the Left Upright
so the small holes face the direction shown.
Attach the Left Uprightto the Base (52) withtwo
UprightBolts(2) and two UprightWashers (14),
Do not tighten the Upright Bolts yet.
Attach the Right Upright (54) to the Base (52)
in the same way.
2. With the help of a second person, raise the
Uprights (53, 54) so the Base (52) is flat on the
floor as shown.
Attach the Wheels (70) (one is shown) to the
outer sides of the Base (52) with two Wheel Bolts
(35) and two Nuts (16) as shown. Do not over-
tighten the Nuts; the Wheels should turn
freely.
Position thefront end of the treadmill Frame (51)
between the Uprights (53, 54) as shown. Next, lo-
cate the long wire inside the lower end of the
Right Upright (see the inset drawing). Securely
tie the end of the wire to the end of the Wire
Harness (39).
Then, pull the opposite end ofthe wire until the
Wire Harness (39) extends from the upper end of
the Right Upright (54).
2
26
54
53
14
26
Small
Holes
51
6
To Next Page
