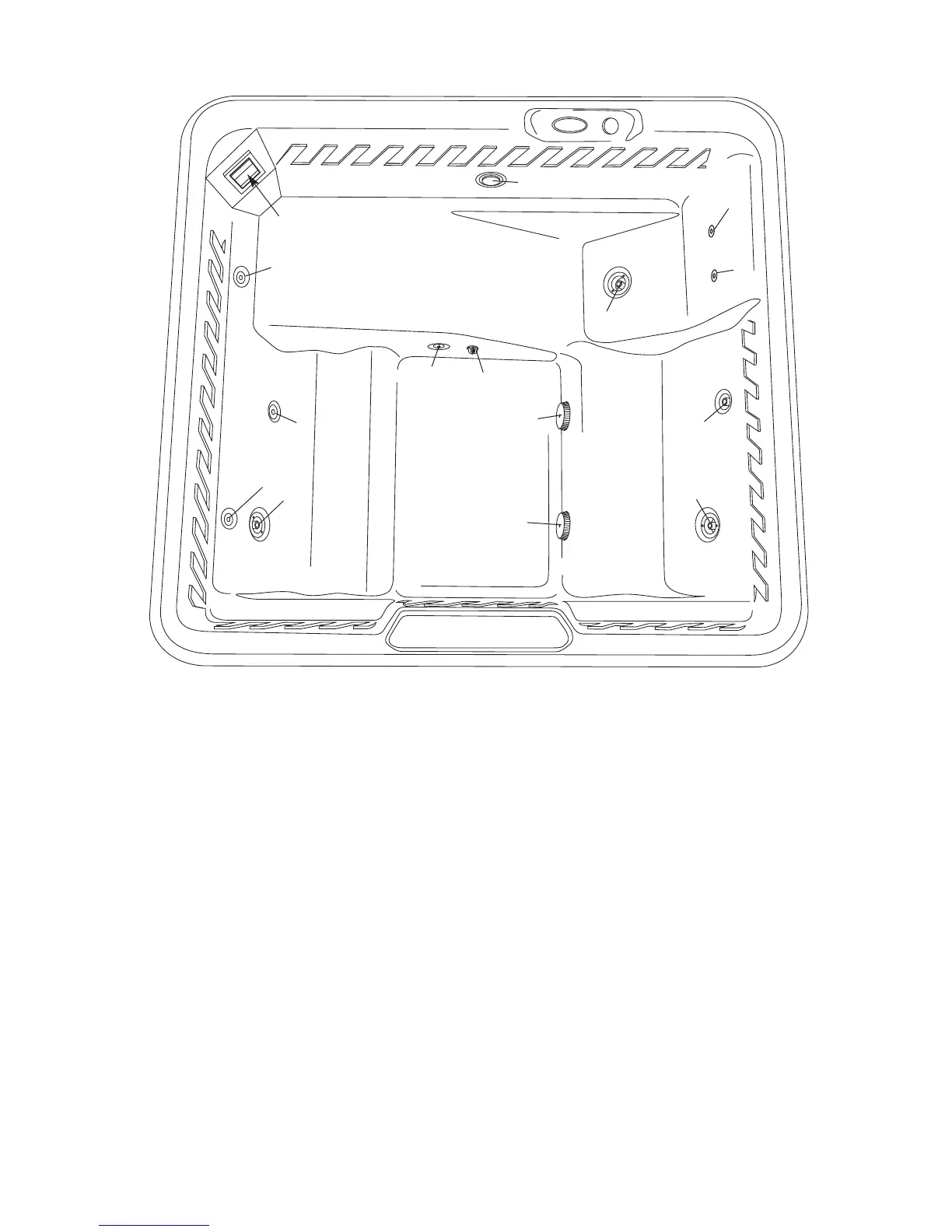

SPA SHELL DIAGRAM
SPA OPERATION
Refer to the diagram above. The function of each
component is explained below:
The six uni-directional thera-jets (A) are located on
both sides of the spa. Five jets focus a water mas-
sage on your upper or lower back, and the remaining
jet provides a foot water massage when you are in
the reclining seat.
The three multi-directional thera-jets (B) can be
adjusted for a custom hydro-massage. To turn the
thera-jets off and on, push or pull the centers of the
thera-jets.
One of the jets is located on the reclining seat and
focuses a water massage on your lower back.
Another jet is located on one of the bench seats,
below a uni-directional thera-jet, and focuses a water
massage on your lower or middle back. The remain-
ing jet, located on the other bench seat, focuses a
water massage on your upper or lower back.
The filter (C) can be removed for replacement and
cleaning (see page 18).
The suction vent (D), located near the floor of the
spa, brings the water into the pump, in order to oper-
ate the system. The suction cover should always be in
place over the suction vent. Never operate the spa
without the suction cover in place.
This spa is ozone ready. An optional ozone generator
can be installed to utilize the ozone jet (E). Ozone
provides a way to help sanitize your spa with minimal
chemical treatment.
The temperature probe (F) reads the water tempera-
ture, which is displayed on the console.
The spa also has a light (G) for evening use.
The spa features automatic freeze protection. If the
water temperature falls below 40°F, the pump will
begin circulating and heating the water to prevent the
water from freezing.
