Westbrook Trailers 48-072-KO12 - Stake Pocket Installation; Electrical Grommet Installation

7
Assembly instructions for kit trailers
P.

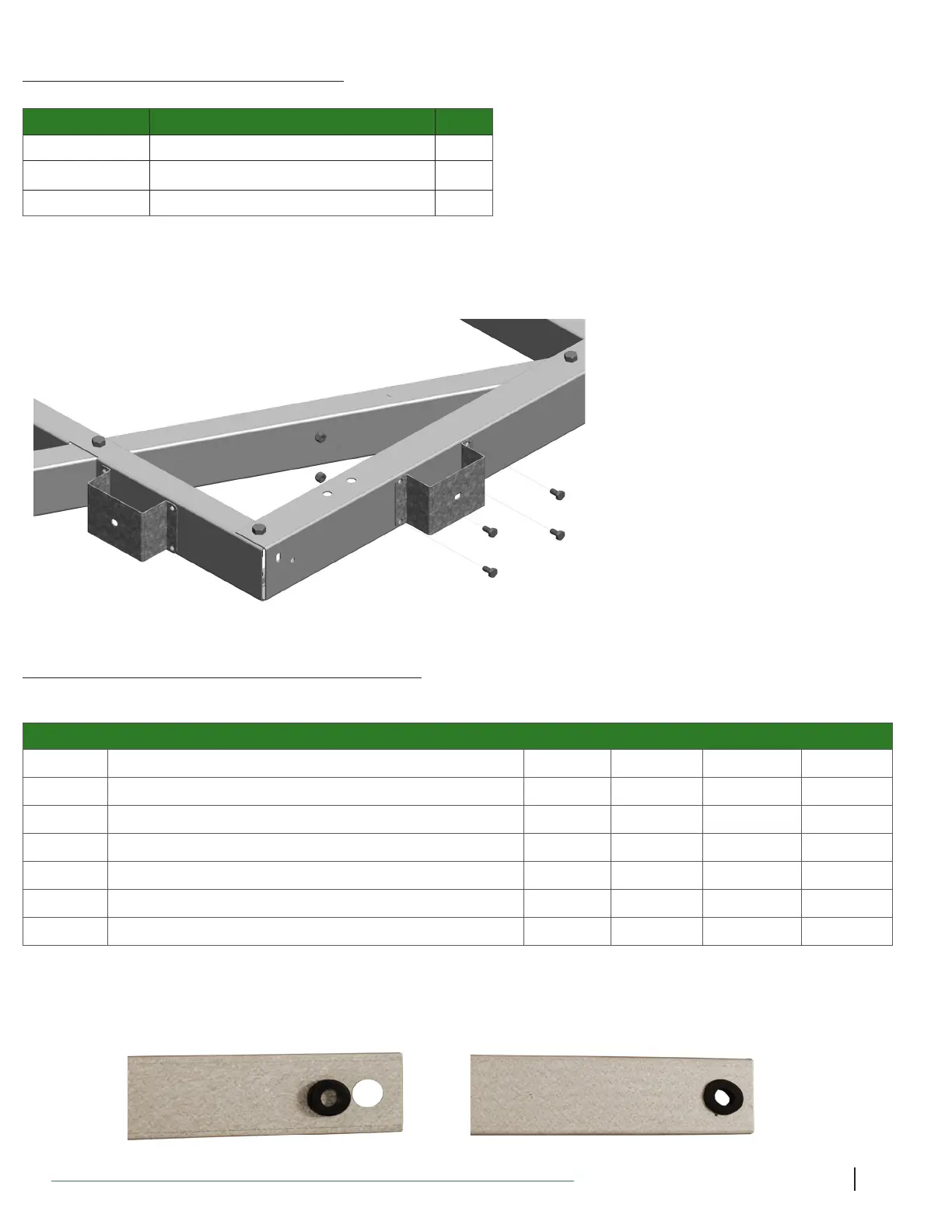

STEP 1– Stake Pocket Installation
ITEM # DESCRIPTION QTY
504471 STAKE POCKET 8
501073 1/4 X 3/4” HEX BOLT 32
501081 1/4 LOCKING NUT 32
1. Line the stake pocket to the pre-drilled holes of the frame and secure with ¼ x ⁄ hex
bolts and ¼ lock nut using ⁄ deep socket. Do this for all eight stake pockets.
BOX # 2 - FRAME BOX
ITEM# ITEM DESCRIPTION 4’ x 4’ 4’ x 6’ 4’ x 8’ 5’ x 8’
501171 ELECTRICAL GROMMET 4 6 12 14
500255 CROSS-CHANEL 1 2 4
504602 CROSS-CHANEL 5
500257 TONGUE CHANNEL 2 2 2
504601 TONGUE CHANNEL 2
504623 TONGUE CROSS-CHANNEL
STEP 2 - Electrical Grommet installation
1. Take one of the cross-channel and install the electrical grommet. Do this for all channels.
2. Then take one of the tongue channel and install the electrical grommet. Do this for both
tongue channels
*Kit trailers shipped prior to 2023 may not include the electrical grommet*
