Westward Operating Instructions and Parts Manual
5
60 Lb. Broadcast Spreader
10F635

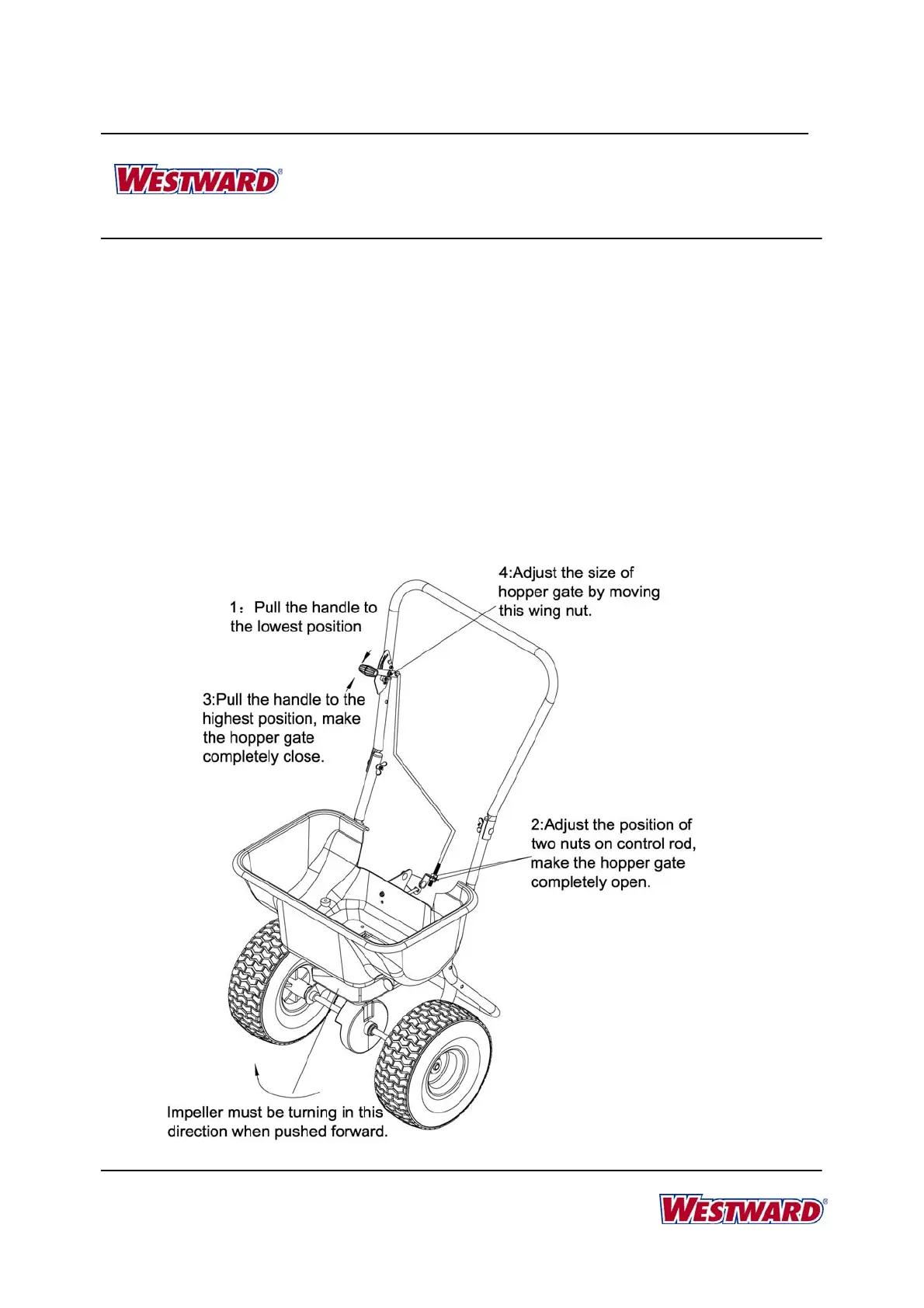

STEP 3:
1. Loosen the wing nut and move the
handle to the lowest position to open
adjustable plates.
2. Move the handle to the highest position
to close the adjustable plates.
3. If the adjustable plates are not
completely open when the lever is in the
lowest position, loosen the two nuts on
the control rod.
4. Use your hand and match up the holes
on the hopper and adjustable plate so
they are fully open.
5. Retighten the nuts and check to make
sure the adjustable plate operates
properly when the lever is moved to the
lowest and highest positions.
6. Attach the rain cover (#50).
7. Tighten all hardware before operating
the spreader.
NOTE: The holes in the bottom of the hopper and the adjustable plate need to line up.
