Wheelock NS-1215W User Manual

P84030 D
Sheet 6 of 10
WARNING: THE NS APPLIANCES MUST BE FIELD SET TO THE DESIRED TONE AND dBA SOUND OUTPUT LEVEL
BEFORE THEY ARE INSTALLED. THIS IS DONE BY PROPERLY INSERTING JUMPER PLUGS IN ACCORDANCE WITH
THESE INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER PERFORMANCE, WHICH COULD
RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SOUND OUTPUT (SPL) SETTINGS:
NOTE
: The Code 3 Horn incorporates the temporal pattern (1/2 second on, 1/2 second off, 1/2 second on, 1/2 second off, 1/2 second
on, 1-1/2 off and repeat) specified by ANSI/NFPA for standard emergency evacuation signaling. The Code 3 Horn should be used
only for fire evacuation signaling and not for any other purpose.

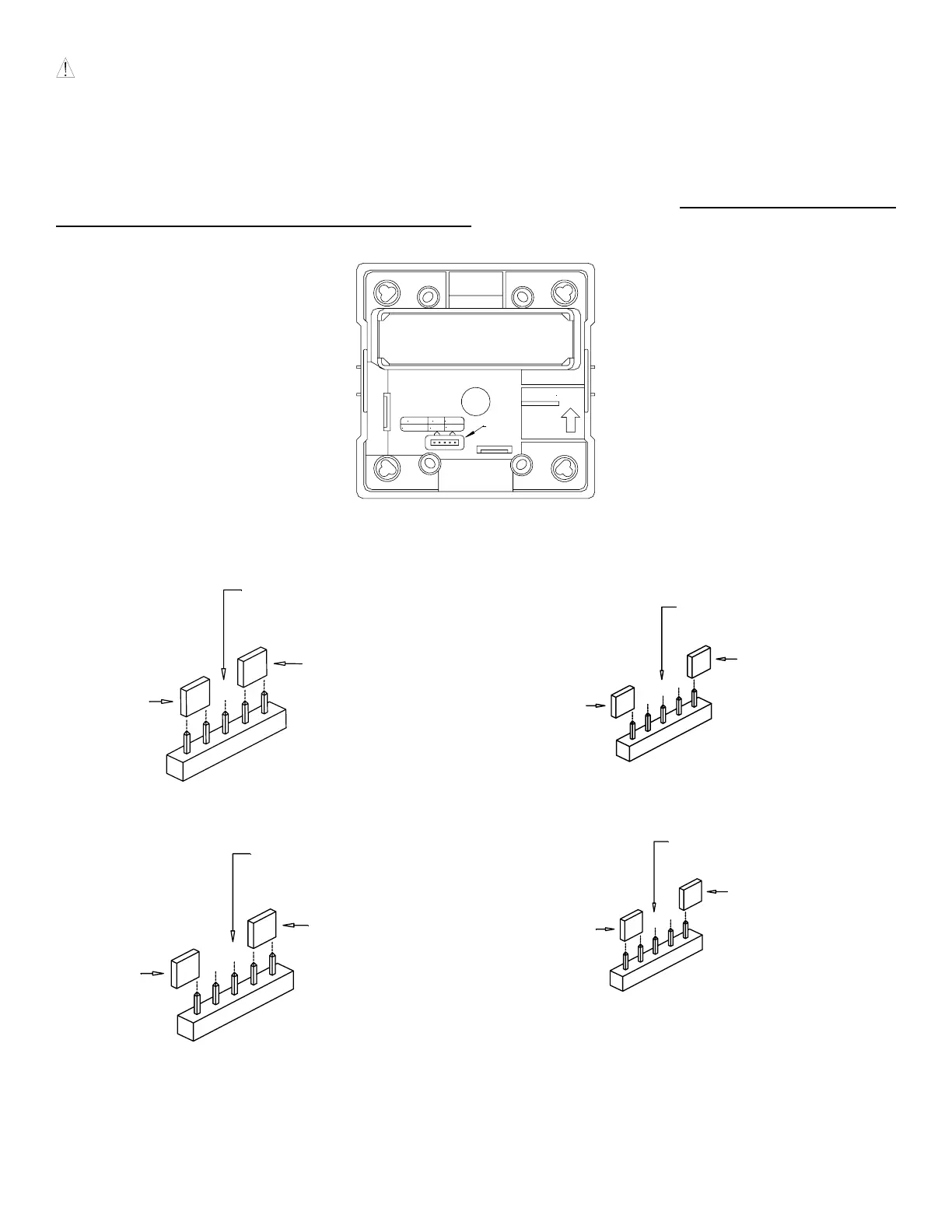

Figure 1: Showing Location of Jumper Plug
JUMPER
PLUGS
TOP
PLUG
NO PLUG
HI
LOW
CODE 3
HORN
Factory setting is on High dB and Code 3.
Figure 2: Jumper plug settings for High dB and Code 3. Figure 3: Jumper plug settings for Low dB and Continuous Horn.
SHOWN
SET ON
HI dB
CENTER PIN
IS NOT USED
SHOWN
SET ON
CODE 3
CENTER PIN
IS NOT USED
SHOWN
SET ON
CONT' HORN *
SHOWN
SET ON
LOW dB
Figure 4: Jumper plug settings for Low dB and Code 3. Figure 5: Jumper plug settings for High dB and Continuous Horn.
CENTER PIN
IS NOT USED
SHOWN
SET ON
LOW dB
SHOWN
SET ON
CODE 3
(Use needle nose pliers to pull and properly set the jumper
plugs.)
CENTER PIN
IS NOT USED
SHOWN
SET ON
CONT' HORN *
SHOWN
SET ON
HI dB
No jumper plugs are needed for Continuous Horn and low dB settings.
However, it is recommended that the jumper plug be retained in the unit
for future use (if needed) as shown in Figure 3, 4 and 5.
NOTE
: The NS must be set for code 3 when used with the sync module.
* Continuous horn operation without sync module.
