P81363 L
Sheet 2 of 4
-
CAUTION: The installation of this equipment should only be undertaken by qualified personnel.
- The Load Number (LN) assigned to each terminal appliance denotes the percentage of the total load to be connected to a
telephone loop that is used by the appliance to prevent overloading. The termination on a loop may consist of any
combination of appliances subject only to the requirement that the total of the Load Numbers of all the appliances does not
exceed 100.
Load Number for RX-1419 = 18
CAUTION: These appliances are not intended for use in hazardous locations as defined by the National Electrical Code (NEC)
and by the National Fire Protection Association (NFPA).
SPECIFICATIONS:
Table 1: Relay Components
Contact Ratings Model
Number
Operating
Voltages
Current
Draw
Ren
Current Voltage
39-150VAC, 20-30Hz 9mA 0.6 5A 115VAC, 60Hz
18-48VDC 11mA ----- 2A 230VAC, 60Hz
RX-1419
30-48VAC 20mA ----- 0.5A 115VAC
REPLACEMENT
Mounting into the 163 (Note: the 163 is no longer available)

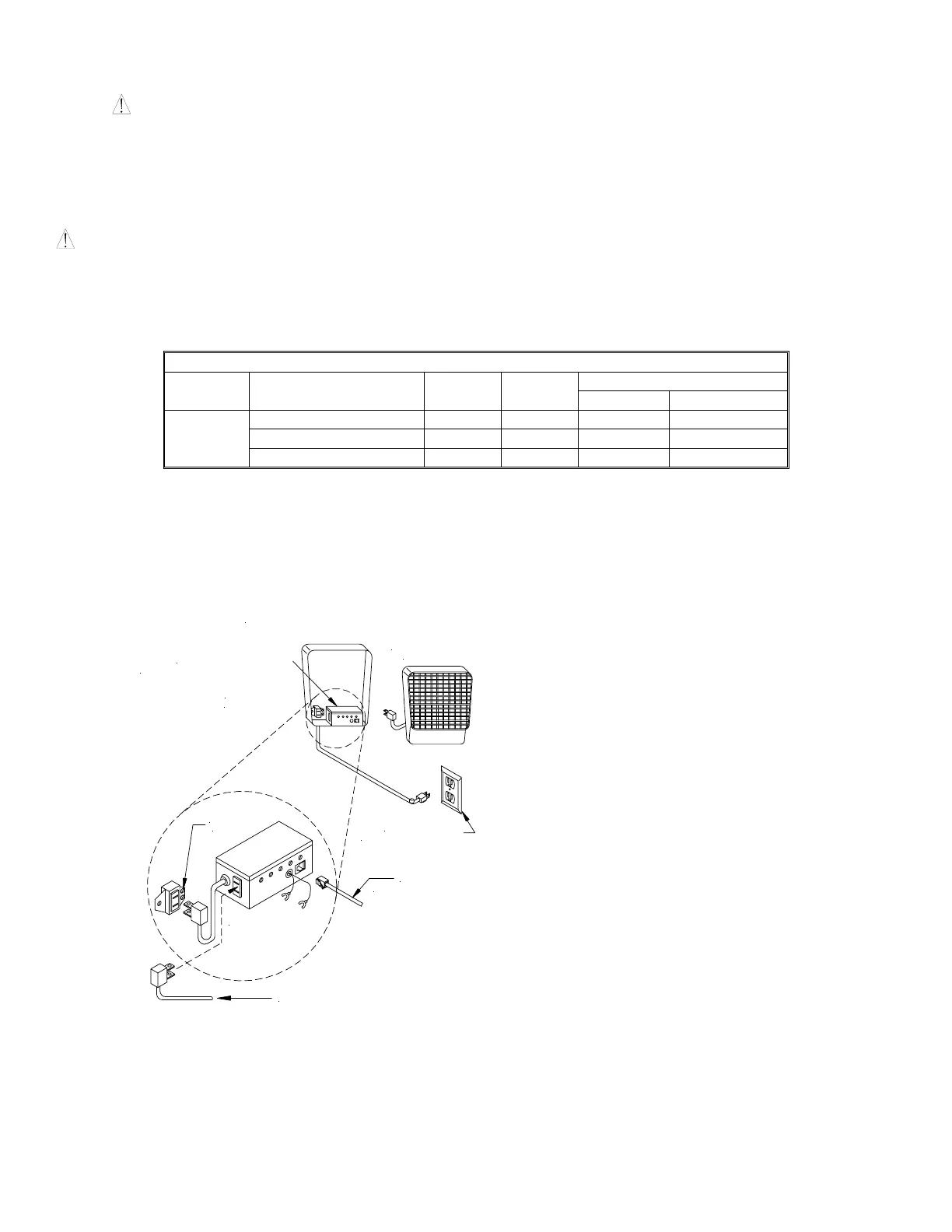

Figure 1: Assembly Diagram
ASSEMBLY DIAGRAM
SIGNAL/GRILLE
ASSEMBLY
BACKBOX
ASSEMBLY
RINGING RELAY
TELEPHONE LINE
(MODULAR PLUG OR LUGS)
115 VAC
POWER OUTLET
GROUND
SCREW
RINGING RELAY
(SEE EXPLODED VIEW)
FROM SIGNAL\GRILLE ASSEMBLY
Slide the RX-1419 into
the mounting bracket
inside the 163
To Next Page
