Whirlpool GI6FARXX - Door Removal and Replacement Details; Top and Bottom Hinges; Water Line and Wiring Connections; Drawer Front Removal and Replacement Visuals

8
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
A
A
B
C
1
2
B
A
C
D
A
B

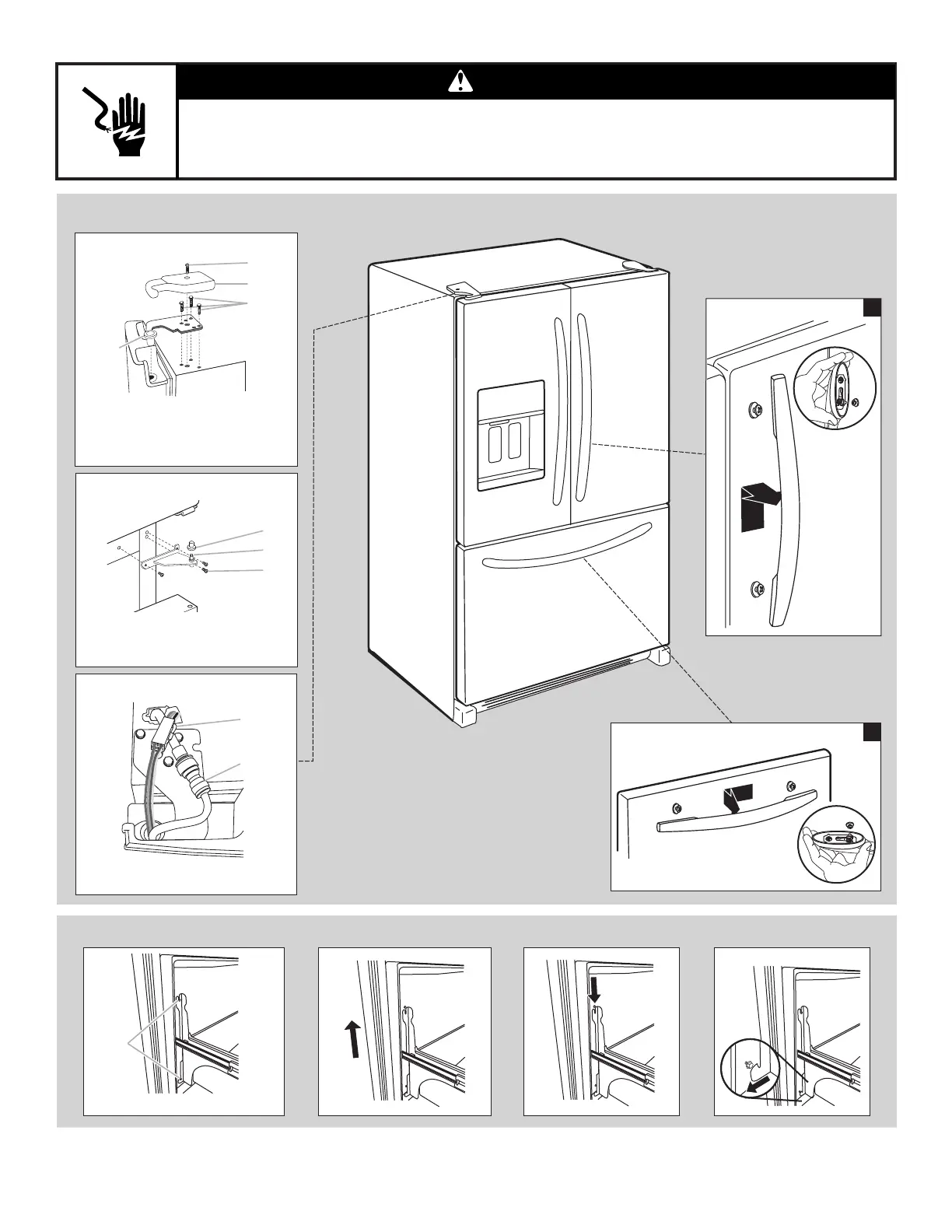

Door Removal and Replacement
Top Hinges
Bottom Hinges
Connections
Drawer Front Removal Drawer Front Replacement
A. Hinge Cover Screw
B. Top Hinge Cover
C. 5/16" Hex Head Hinge Screws
D. Top Hinge
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
A. Wiring Plug
B. Water Line Connection
A. Loosen 4 Door Bracket Screws
