Reinstall the storage drawer,
CompJete installation steps 9 through 24,
Checking for proper cooktop burner and
oven flame is very important,
You must adjust "LOW" setting for each
cooktop burnec See Step l&
The small inner cone shouJd have a very
distinct Mue flame 1/4" (6 ram) to 1/2"
(13 ram} bng,The outer cone is not as
distinct as the inner cone. LR gas flames
may have a sJightJy yellow tip, if the
flame is noisy or bbwing, it is getting
too much air. If the flame is soft and Hazy,
it is not getting enough air,

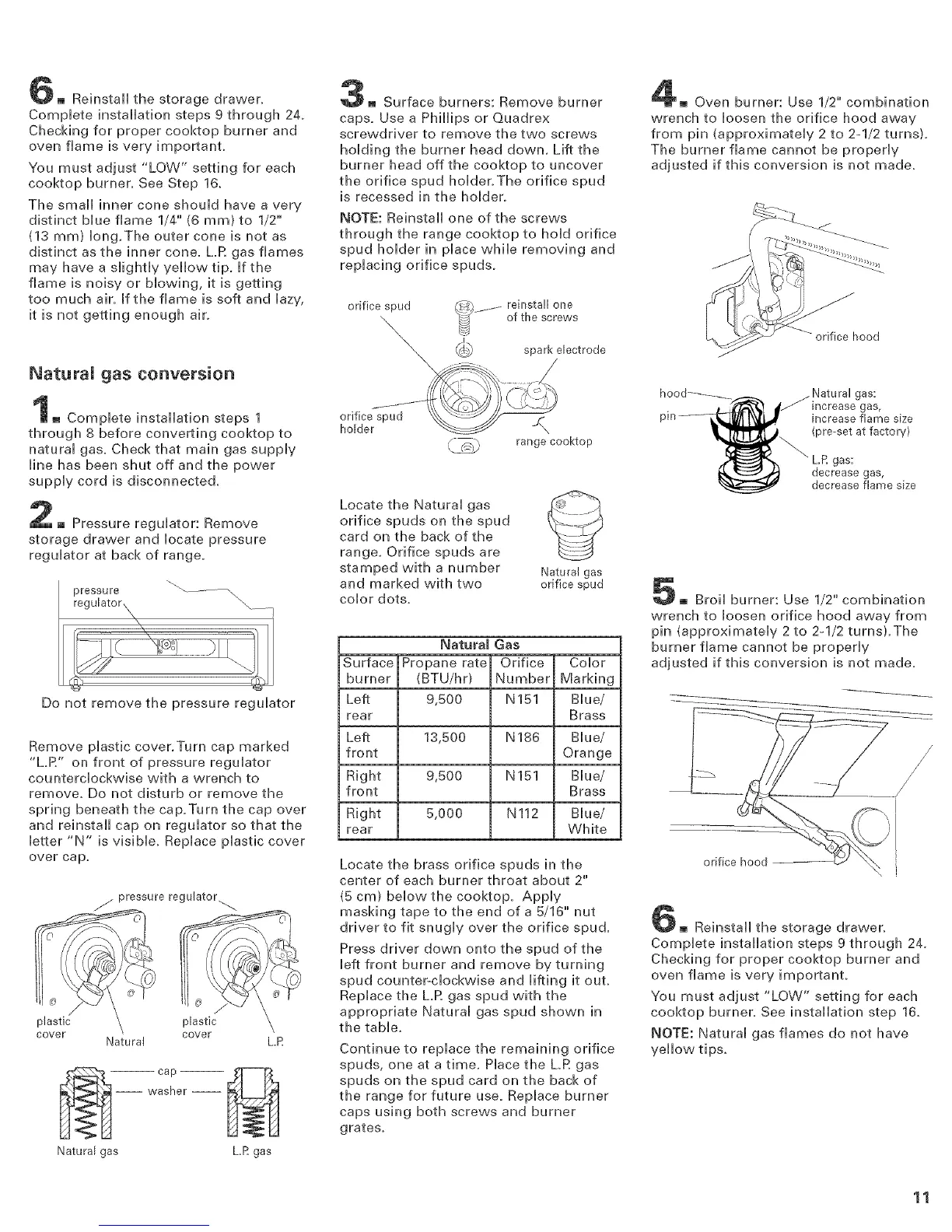

NaturaU gas conversion
[] Complete installation steps 1
through 8 before converting cooktop to
natural gas. Check that main gas supply
line has been shut off and the power
supply cord is disconnected,
[] Pressure regulator: Remove
storage drawer and locate pressure
regulator at back of range.
Do not remove the pressure regulator
Remove plastic cover, Turn cap marked
"LR" on front of pressure regulator
counterclockwise with a wrench to
remove, Do not disturb or remove the
spring beneath the cap.Turn the cap over
and reinstall cap on regulator so that the
letter "N" is visible, Replace plastic cover
over cap,
j pressure regulator
plastic
cover
Natural L.R
--cap --
washer
Natural gas LR gas
[] Surface burners: Remove burner
caps. Use a Phillips or Quadrex
screwdriver to remove the two screws
holding the burner head down, Lift the
burner head off the cooktop to uncover
the orifice spud holder, The orifice spud
is recessed in the holder,
NOTE: Reinstall one of the screws
through the range cooktop to hold orifice
spud holder in place while removing and
replacing orifice spuds,
orifice spud reinstall one
,_\ of the screws
",.. _ spark electrode
\
orifice spud
honer _
range cooktop
Locate the Natural gas
orifice spuds on the spud
card on the back of the
range, Orifice spuds are
stamped with a number
and marked with two
color dots,
Natural gas
orifice spud
Natural Gas
Surface Propane rate Orifice Color
burner (BTU/hr) Number Marking
Left 9,500 N151 Blue/
rear Brass
Left 13,500 N186 Blue/
front Orange
Right 9,500 N151 Blue/
front Brass
Right 5,000 Nl12 Blue/
rear White
Locate the brass orifice spuds in the
center of each burner throat about 2"
(5 cm) below the cooktop, Apply
masking tape to the end of a 5/16" nut
driver to fit snugly over the orifice spud,
Press driver down onto the spud of the
left front burner and remove by turning
spud counter-clockwise and lifting it out,
Replace the LR gas spud with the
appropriate Natural gas spud shown in
the table,
Continue to replace the remaining orifice
spuds, one at a time, Place the LR gas
spuds on the spud card on the back of
the range for future use. Replace burner
caps using both screws and burner
grates,
Oven burner: Use 1/2" combination
wrench to loosen the orifice hood away
from pin (approximately 2 to 2-1/2 turns),
The burner flame cannot be properly
adjusted if this conversion is not made,
_- orifice hood
hood-_, jl/atural gas:
• _;_'!_'_ d/ increase gas,
pln_ _j._ I_jt _ increase flame size
_//_. (pre-set at factory')
L,Rgas:
___:::7::_/;j decrease gas,
decrease flame size
[] Broil burner: Use 1/2" combination
wrench to loosen orifice hood away from
pin (approximately 2 to 2-1/2 turns},The
burner flame cannot be properly
adjusted if this conversion is not made,
orifice hood
Reinstall the storage drawer,
Complete installation steps 9 through 24,
Checking for proper cooktop burner and
oven flame is very important,
You must adjust "LOW" setting for each
cooktop burner, See installation step l&
NOTE: Natural gas flames do not have
yellow tips,
11
