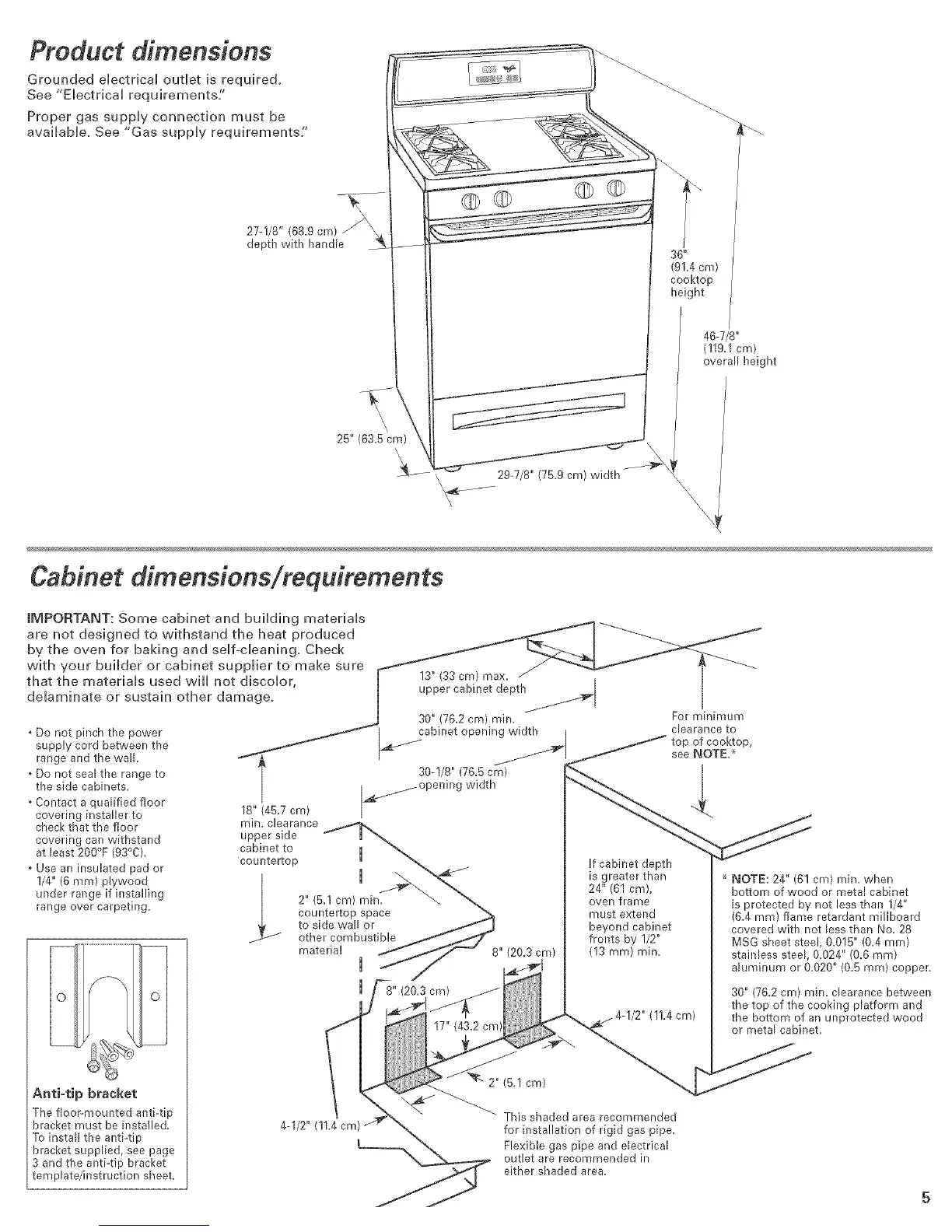

Product dimensions
Grounded electrical oudet is required+
See "Electrical requirements/'
Proper gas supply connection must be
avaHaNe+ See "Gas supply requirements:"
27-1/8" (68.9 cm)
depth with handle
25" (63+5cm)
\
36 _+
(91.4cm)
cooktop
height
29-7/8" (75+9cm) width
46-7/8"
(!19+1cm)
overall height
Cabinet dimensions/requirements
iMPORTANT: Some cabinet and building materiab _ _
are not designed to withstand the heat produced .__ I -_-.
by the oven for baking and self-cleaning. Check
withyourbuHderorcabinetsuppNertomakesure t.._f_ ............. _ -_"',,,_.--.--.--_ _ ---_-
that the materials used wHI not discobr, 1 _'h'_i_Jh I
delaminate or sustain other damage. 1 .................... J I
j __lS. - For minimum
+Do not pinch the power _j cabinet _dth cbarance ,to
supply cord between the _ I_ _ top of cooktop,
range and the wall. A [_ _ see NOTE. +
+Do not seal the range to T 3o0-lt/s_t_( 7_i5t!hrn) I
the side cabinets. | _._._ P
+Contact a qualified floor _ .L
covering installer to 18" (45.7 cm) | "_
check that the floor
covering can withstand
at least 200°F (93°C),
+ Use an insulated pad or
1/4" (6 ram) plywood
under range if installing
range over carpeting,
Anti-tip bracket
The floor-mounted anti-tip
bracket must be installed+
To install the anti-tip
bracket supplied, see page
3 and the anti-tip bracket
template/instruction sheet.
i
min. clearance
upper side
cabinet to
'countertop 1
2" (&1 cm) rain.
countertop space
to side wall or
other combustible
material
1
1 8" (20.3 cm)
8" (20.3 cm)
17" (43.2 cm)
If cabinet depth
is greater than
24" (61 cm),
oven frame
must extend
beyond cabinet
fronts by 1/2"
(13 mm) rain.
(1!+4cm)
+ NOTE: 24" (61 cm) min. when
bottom of wood or metal cabinet
is protected by not less than 1/4"
(6.4 mm) flame retardant millboard
covered with not less than No. 28
MSG sheet steel, 0.015" (0.4 ram)
stainbss steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 ram) copper.
30" (76,2 cm) milK, clearance between
the top of the cooking platform and
the bottom of an unprotected wood
or metal cabinet.
4-1/2" (!1+4cm)
This shaded area recommended
for insta!lation of rigid gas pipe.
Flexible gas pipe and electrical
outlet are recommended in
either shaded area.
