Whirlpool GU2700XTSB0 - Page 2

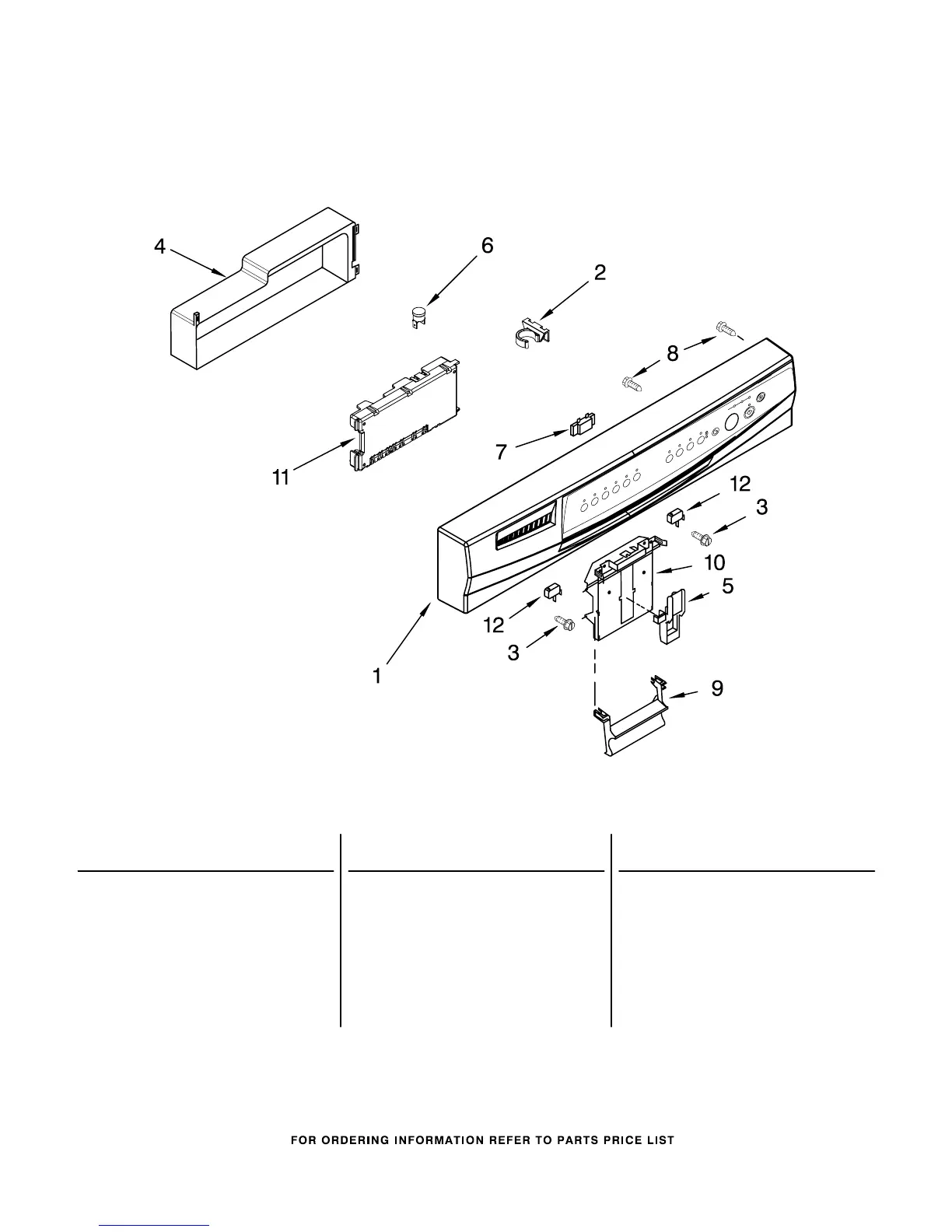

CONTROL PANEL PARTS
2
For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0
(Black) (White) (Biscuit) (Stainless) (Silver)
8194419
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
Includes Active
Overlay & Insert
W10008710 Black
W10008720 White
W10020990 Biscuit
W10021000 Silver
2 8546546 Clip, BI−Metal
3 3400412 Screw
4
W10056090 Cover Control
Shield Assembly
5 8524471 Actuator, Latch
6 661663 Fuse, Thermal
Electronic
7 8269206 Display, Dual
Digit
8 3369051 Screw (6)
9 Handle, Latch
8575331 Black
8575332 White
8575333 Biscuit
8575334 Grey
10 8524476 Bolt, Latch
11 8562996 Control,
Electronic
12 8269209 Switch, Door
