Whirlpool MAGICOOL - Page 25







Installation instructions
Indoor unit

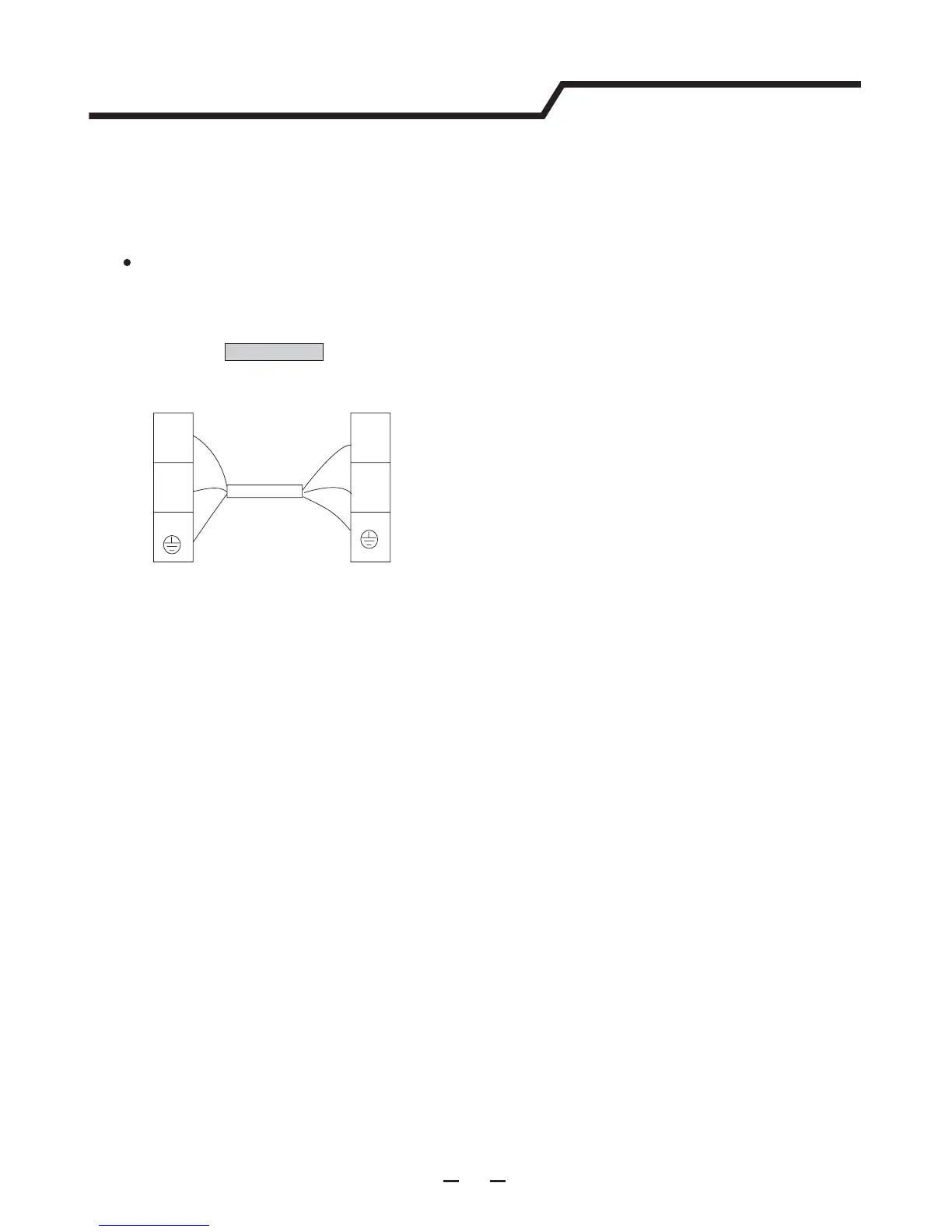

Wiring Diagram
Make sure that the color of wires of the outdoor unit and the terminal No. are the same as those
of the indoor unit.
Outdoor unit
COOLING ONLY
12K,18K,24K Model
Indoor unit
Outdoor unit
Power connecting cord
Blue
Blue
Yellow/Green
Yellow/Green
Brown
Brown
NN
1L
1L
Terminal Terminal
For above models, the power supply are connected from indoor unit.
