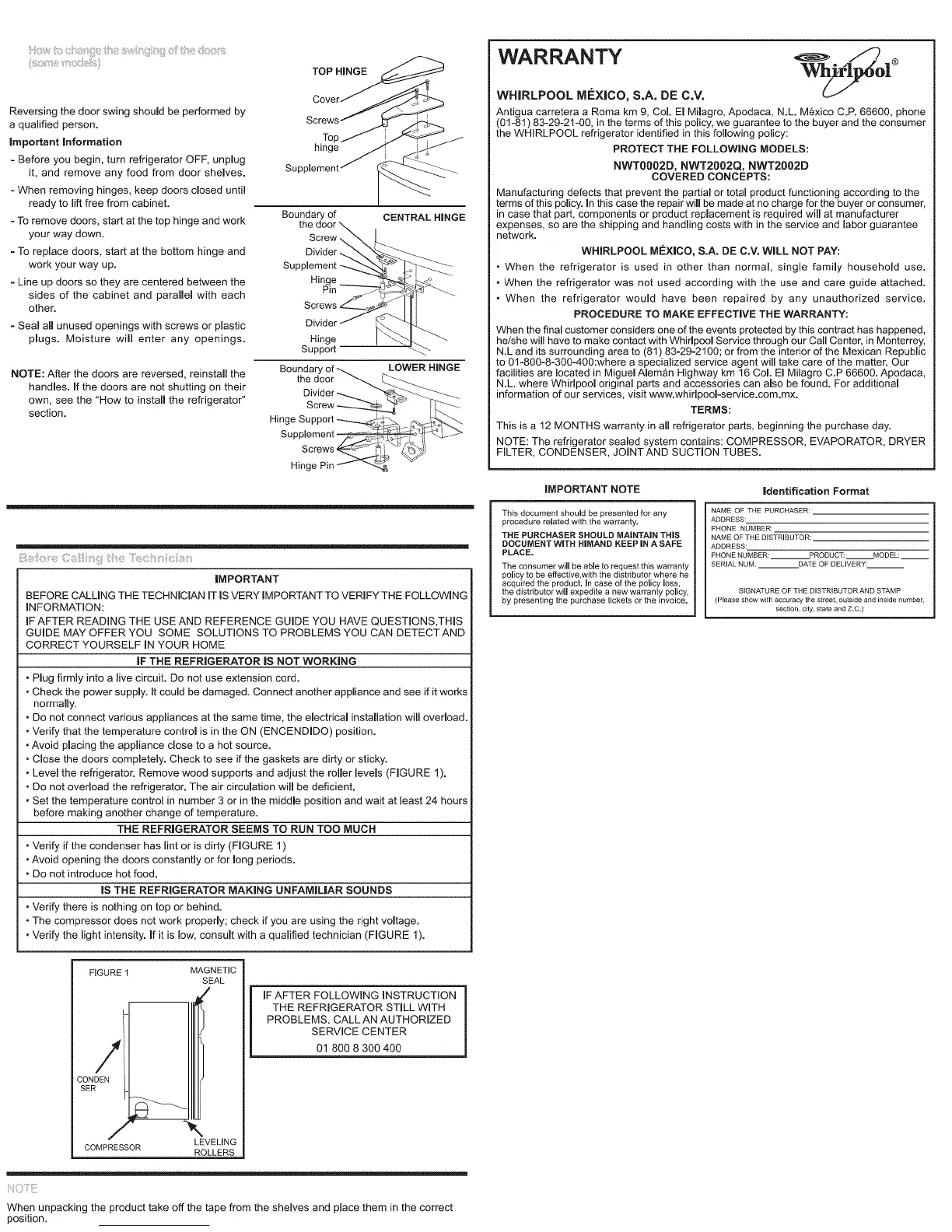

Reversing the door swing should be performed by
a qualified person.
important Information
- Before you begin, turn refrigerator OFF, unplug
it, and remove any food from door shelves.
- When removing hinges, keep doors closed until
ready to lift free from cabinet.
- To remove doors, start at the top hinge and work
your way down.
- To replace doors, start at the bottom hinge and
work your way up.
- Line up doors so they are centered between the
sides of the cabinet and parallel with each
other.
- Seal all unused openings with screws or plastic
plugs. Moisture will enter any openings.
NOTE: After the doors are reversed, reinstall the
handles, If the doors are not shutting on their
own, see the "How to install the refrigerator"
section,
TOP HINGE
hinge
Hinge
Screws 4
Hinge 45
IMPORTANT
BEFORE CALLING THE TECHNICIAN IT IS VERY IMPORTANT TO VERIFY THE FOLLOWING
INFORMATION:
IF AFTER READING THE USE AND REFERENCE GUIDE YOU HAVE QUESTIONS,THIS
GUIDE MAY OFFER YOU SOME SOLUTIONS TO PROBLEMS YOU CAN DETECT AND
CORRECT YOURSELF IN YOUR HOME
IF THE REFRIGERATOR IS NOT WORKING
• Plug firmly into a live circuit. Do not use extension cord.
• Check the power supply. It could be damaged. Connect another appliance and see if it works
normally.
• Do not connect various appliances at the same time, the electrical installation will overload.
, Verify that the temperature control is in the ON (ENCENDIDO) position.
• Avoid placing the appliance close to a hot source.
• Close the doors completely. Check to see if the gaskets are dirty or sticky.
• Level the refrigerator. Remove wood supports and adjust the roller levels (FIGURE 1).
• Do not overload the refrigerator. The air circulation will be deficient.
• Set the temperature control in number 3 or in the middle position and wait at least 24 hours
before making another change of temperature.
THE REFRIGERATOR SEEMS TO RUN TOO MUCH
• Verify if the condenser has lint or is dirty (FIGURE 1)
• Avoid opening the doors constantly or for long periods.
• Do not introduce hot food.
IS THE REFRIGERATOR MAKING UNFAMILIAR SOUNDS
, Verify there is nothing on top or behind.
• The compressor does not work properly; check if you are using the right voltage.
, Verify the light intensity. If it is low, consult with a qualified technician (FIGURE 1).
WARRANTY WhJol
@ ®
WHIRLPOOL MI_XICO, S.A. DE C.V.
Antigua carretera a Roma km 9, Col. El Milagro, Apodaca, N.L. Mexico C.P. 66600, phone
(01-81) 83-29-21-00, in the terms of this policy, we guarantee to the buyer and the consumer
the WHIRLPOOL refrigerator identified in this following policy:
PROTECT THE FOLLOWING MODELS:
NWT0002D, NWT2002Q, NWT2002D
COVERED CONCEPTS:
Manufacturing defects that prevent the partial or total product functioning according to the
terms of this policy. In this case the repair will be made at no charge for the buyer or consumer,
in case that part, components or product replacement is required will at manufacturer
expenses, so are the shipping and handling costs with in the service and labor guarantee
network.
WHIRLPOOL MEX|CO, S.A. DE C.V. WILL NOT PAY:
• When the refrigerator is used in other than normal, single family household use.
• When the refrigerator was not used according with the use and care guide attached.
• When the refrigerator would have been repaired by any unauthorized service.
PROCEDURE TO MAKE EFFECTIVE THE WARRANTY:
When the final customer considers one of the events protected by this contract has happened,
he/she will have to make contact with Whirlpool Service through our Call Center, in Monterrey,
N.L and its surrounding area to (81) 83-29-2100; or from the interior of the Mexican Republic
to 01-800-8-300-400:where a specialized service agent will take care of the matter. Our
facilities are located in Miguel Alem_n Highway km 16 Col. El Milagro C.P 66600. Apodaca,
N.L. where Whirlpool original parts and accessories can also be found. For additional
information of our services, visit www.whidpool-service.com.mx.
TERMS:
This is a 12 MONTHS warranty in all refrigerator parts, beginning the purchase day.
NOTE: The refrigerator sealed system contains: COMPRESSOR, EVAPORATOR, DRYER
FILTER, CONDENSER, JOINT AND SUCTION TUBES.
IMPORTANT NOTE
This document should be presented for any
procedure related with the warranty.
THE PURCHASER SHOULD MAINTAIN THIS
DOCUMENT WITH HIMAND KEEP IN A SAFE
PLACE,
The consumer will be able to request this warranty
policy to be effective,with the distributor where he
acquired the product. In case of the policy loss,
the distributor will expedite a new warranty policy,
by presenting the purchase tickets or the invoice,
Identification Format
NAME OF THE PURCHASER:
ADDRESS:
PHONE NUMBER:
NAME OF THE DISTRIBUTOR:
ADDRESS:
PHONE NUMBER: PRODUCT: MODEL:
SERIAL NUM. DATE OF DELIVERY:
SIGNATURE OF THE DISTRIBUTOR AND STAMP
(Please show with accuracy the street, outside and inside number,
section, city, state and Z.C.)
FIGURE 1 MAGNETIC
SEAL
COMPRESSOR
LEVELING
ROLLERS
IF AFTER FOLLOWING INSTRUCTION
THE REFRIGERATOR STILL WITH
PROBLEMS, CALL AN AUTHORIZED
SERVICE CENTER
01 800 8 300 400
When unpacking the product take offthe tape from the shelves and place them in the correct
position.
