Whirlpool WRT511SZDM - Style 2 Contour Door Procedures; Door Removal and Replacement Guide; Door Swing Reversal Visuals

10
Style 2 - Contour
Door Swing Reversal (optional)
4
1-2
A. Door Hinge Hole Plug
3
A
A

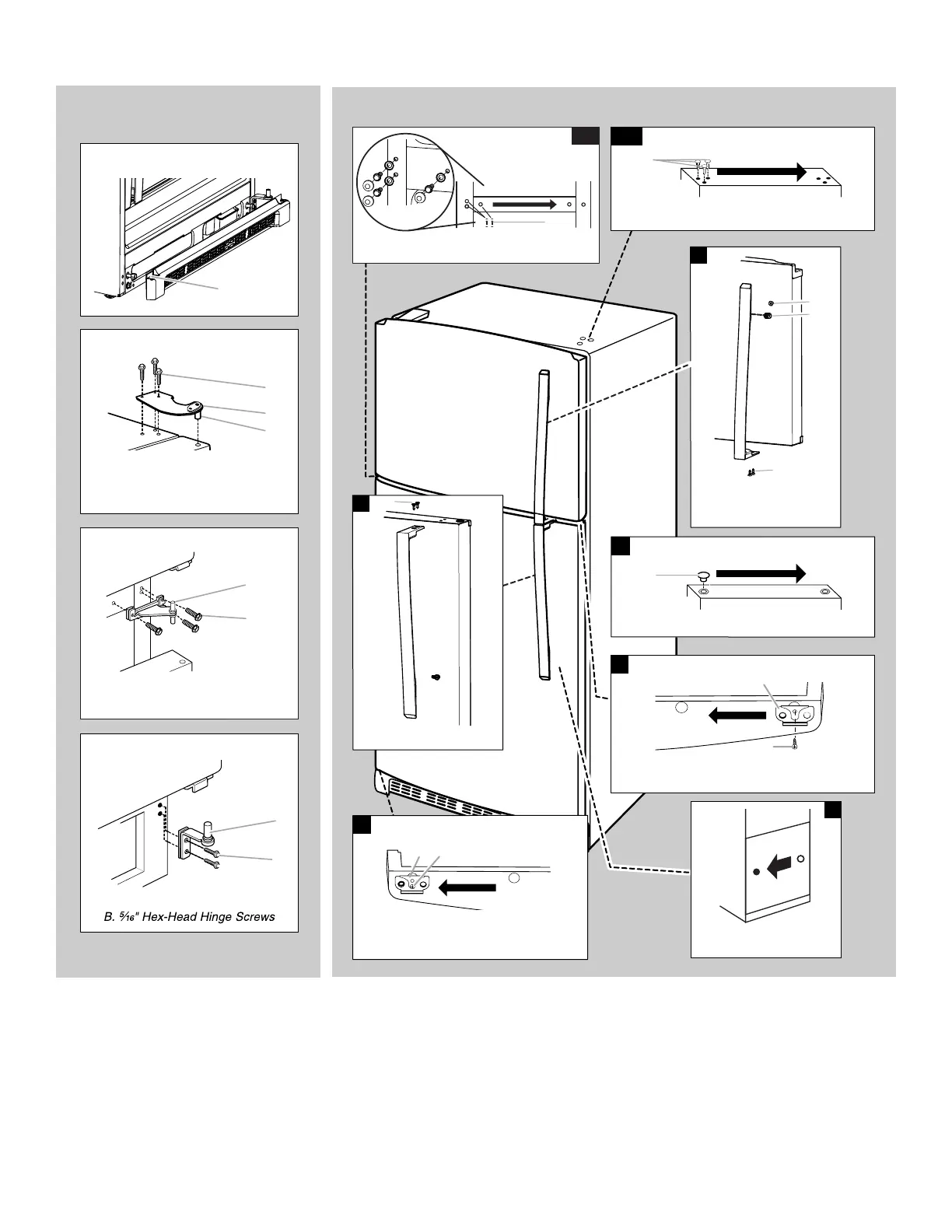

Removal of Door Stops
B
A. Cabinet Hinge Hole Plugs
A
Door Removal &
Replacement
5
A. Door Stop
B. Door Stop Screw
B
A
Reinstallation of Door Stops
A. Door Stop
B. Door Stop Screw
A. Shoulder Screw
B. Setscrew
C. Flat-Head Handle Screw
2
C
Base Grille
Center Hinge
Top Hinge
1-1
A.
5
/16" Hex-Head Hinge Screws,
Dome Caps and Dome Cap Washers
A
B.
5
/ 16 " Hex-Head Hinge Screws
A. Center Hinge
A
B
A. Flat-Head Handle Screw
6
A
B. Top Hinge
C. Hinge Pin
A
B
C
B
A
A. Bottom Hinge
Bottom Hinge
A
B
A. Cover
A
A. Door Handle
Hole Plug
7
A.
5
/ 16 " Hex-Head Hinge Screws
