12

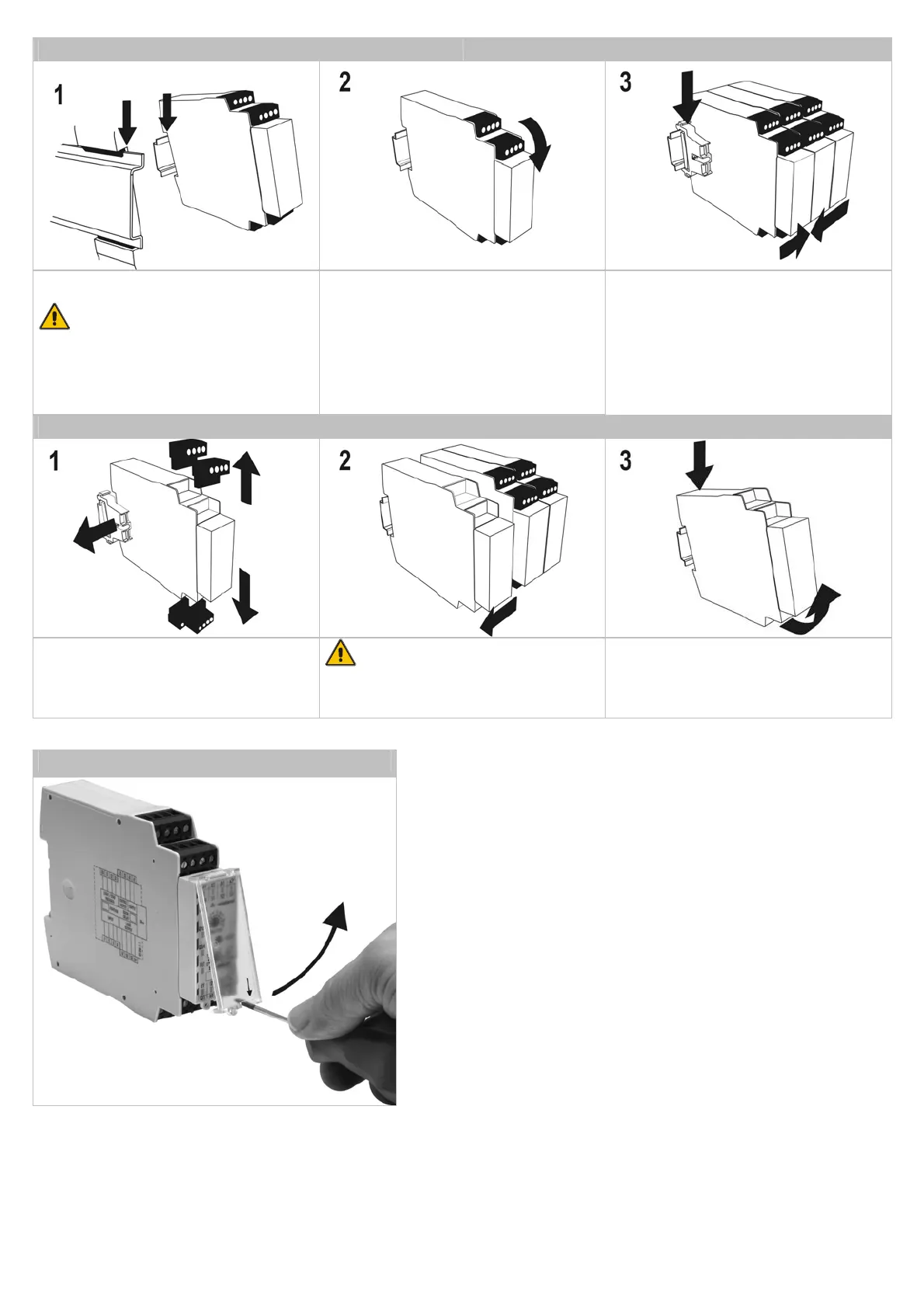

Installation
Place the device on the mounting rail.
Attention
Ensure that grounding spring is in the correct
position. The grounding spring on the module
must make a secure and electrically conductive
connection with the mounting rail.
Snap the module onto the mounting rail by
pressing gently in the direction of the arrow.
If there are several modules, push them together
one at a time in the direction of the arrow until
the connectors at the sides engage and then
install the end clamps at the left and right ends.
Dismantling
Remove the plug-in terminals, wiring and end
clamps.
Attention
If there are several modules, push them apart
one at a time in the direction of the arrow until
the connectors at the sides disengage.
Push down at the back.
While pressing down, remove the module from
the mounting rail in the direction of the arrow.
Cover - Dismantling
Sub
ect to chan
es
