Personal PA System Installation

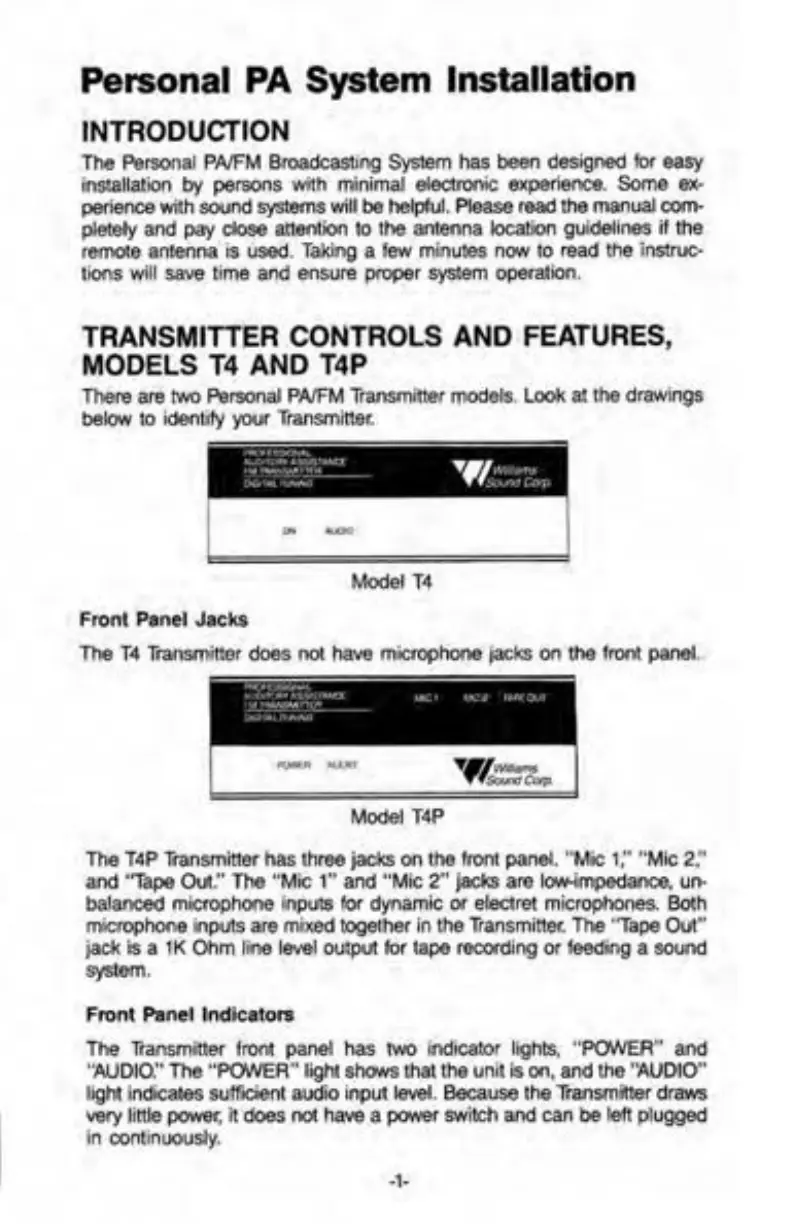

INTRODUCTION
The Personal PA/FM Broadcasting System has been designed for easy
installation by persons with minimal
electroniCi: experiehce. Some ex-
perience with sound systems will be helpful. Please read the manual com-
pletely and pay close attention to the antenna location guidelines if the
remote antenna is used. Taking a few minutes now to read the instruc-
tions
wi ll save time and ensure proper system operation.
TRANSMITTER CONTROLS AND FEATURES,
MODELS
T4 AND T4P
Tt)ere are two Personal PA/FM Transmitter models. Look at the drawings
below to identity your Transmitter.
ON AUlllD
Model T4
Front Panel Jacks
The T4 Transmitter does not have microphone jacks on the front panel.
~r.c ~ E '.:,SlO~IAl
·,•.•n1r(rn r..S.':=l'~~r,•nisi::
(1;11[;1
' _M Ti-lAJ • J:-::~MJ~r_11 _a __ _
u1c.:,;.a:.. rr ,.~,1"-:i
PCl'W8l ~vu 1u T•lw 111,ams
.,,,,fSound Corp.
Model T4P
The T4P Transmitter has three jacks on the front panel. " Mic 1 ;· '' Mic 2,"
and "Tape Out." The "Mic 1" and
"Mic 2" jacks are low-impedance, un-
balanced microphone inputs tor dynamic
or electret microphones. Both
microphone inputs are mixed together
in the Transmitter. The "T ape Out"
jack is a
1K Ohm line level output for tape recording or feeding a sound
system.
Front Panel Indicators
The Transmitter front panel has two indicator lights, "POWER" and
' '.AUDIO." The "POWER" light shows that the unit is on, and the ' '.AUDIO "
light indicates sufficient audio input level. Because the Transmitter draws
very little power,
it ,does not have a power switch and can be left plugged
in continuously.
-1-
