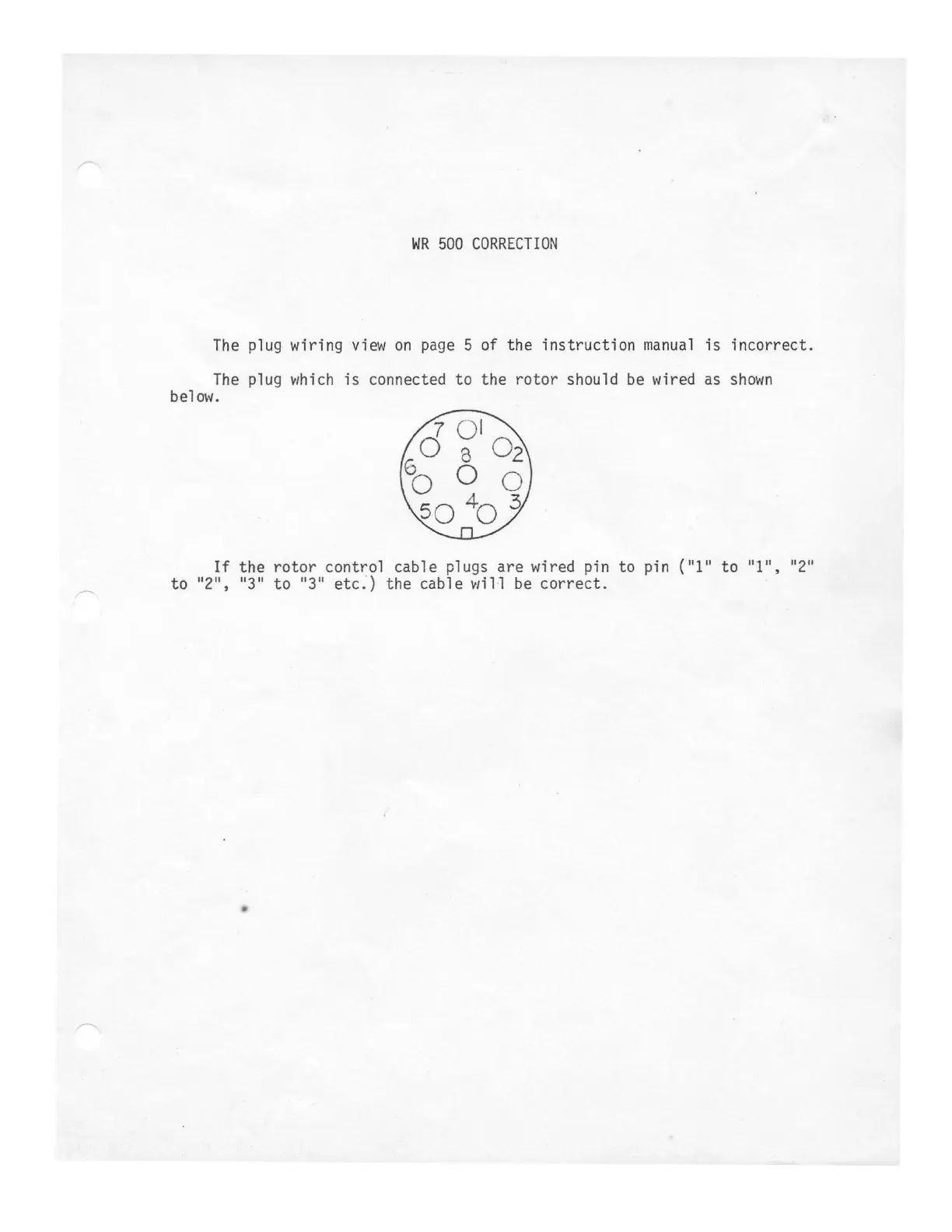

WR 500 CORRECTION
The plug wiring view on page 5 of the instruction manual is incorrect.
The plug which is connected to the rotor should be wired as shown
below.
If the rotor control cable plugs are wired pin to pin ("1" to "1", "2"
to "2", "3" to "3" etc.) the cable will be correct .
•
