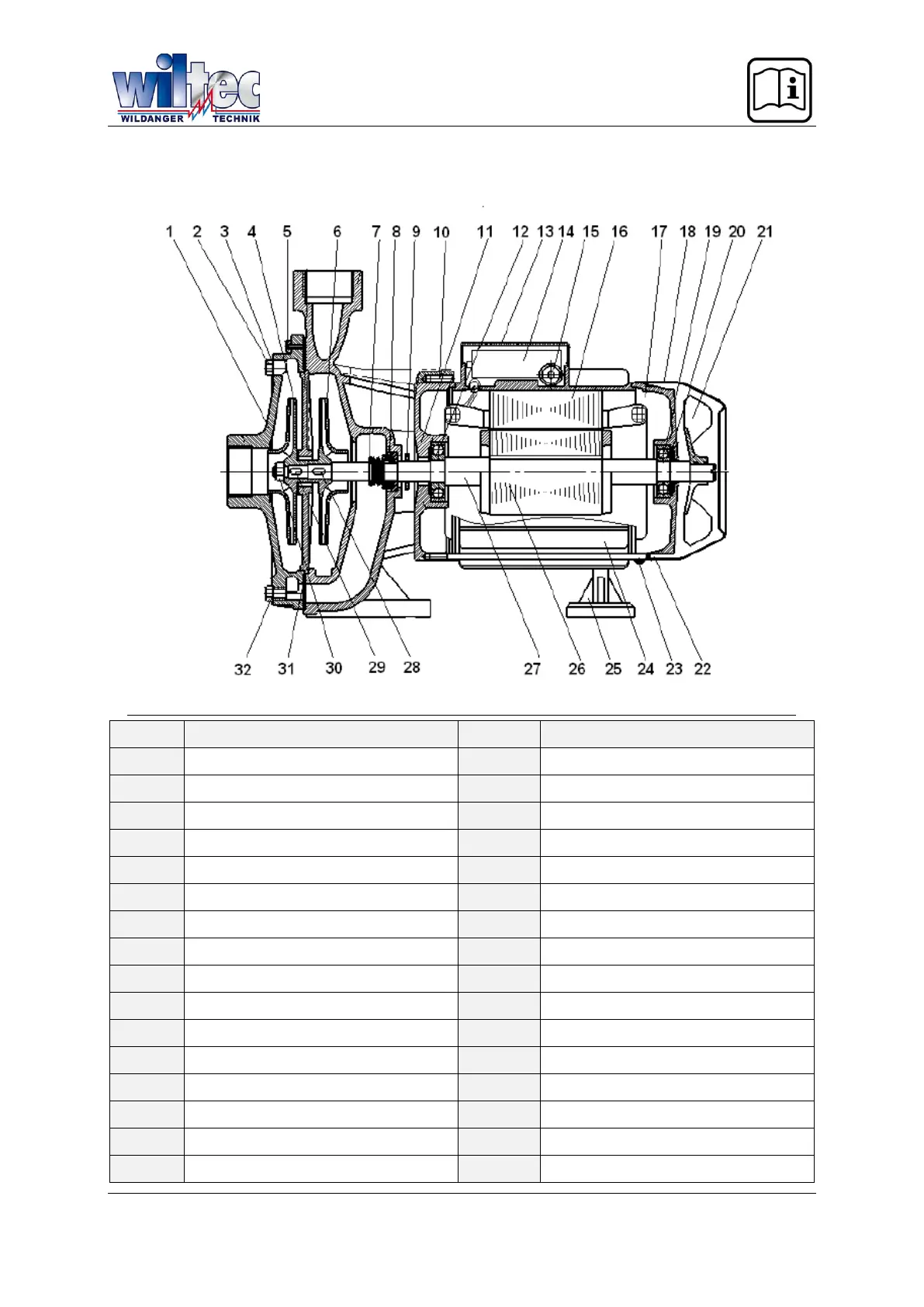

Exploded view and parts list
№
Name
№
Name
1
Pump housing
17
End cap
2
Vent screw
18
Fan casing
3
Gasket
19
Ball bearing
4
Rotor
20
Washer
5
Screw
21
Fan
6
Rotor
22
Cable inlet
7
Rotating mechanical sealing
23
Screw
8
Fixed mechanical sealing
24
Motor housing
9
Gasket
25
Foot
10
Screw
26
Rotor
11
Motor connection
27
Shaft
12
Bearing
28
Key (block)
13
Connection box
29
Key (block)
14
Capacitor
30
Nut
15
Cable connection
31
O-ring
16
Stator
32
Drain screw and sealing
