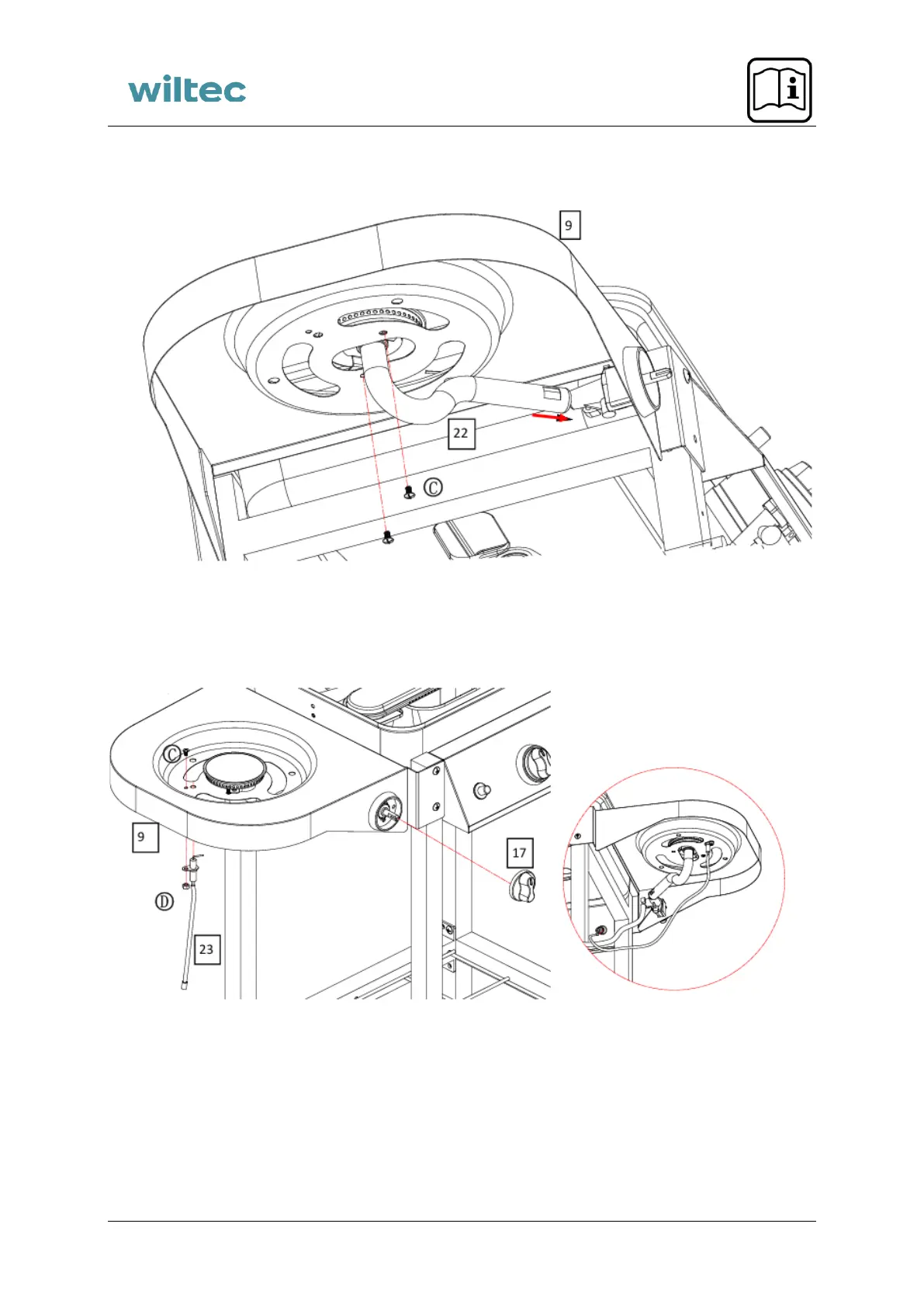

Step 9
1. Align the valve on the control panel with the venturi tube of the burner.
2. Ensure that the valve tip fits fully into the venturi tube and is well aligned.
3. Then attach the side burner (22) to the side burner housing (9) using the M4×8 screw (C).
Step 10
1. Attach the electrode for the side burner (23) to the left side burner housing (9) using the M4×8
screws (C) and M4 nuts (D).
2. Insert the ignition pin into the electronic terminal.
3. Install the switch for the side burner (17) on the left side burner.
