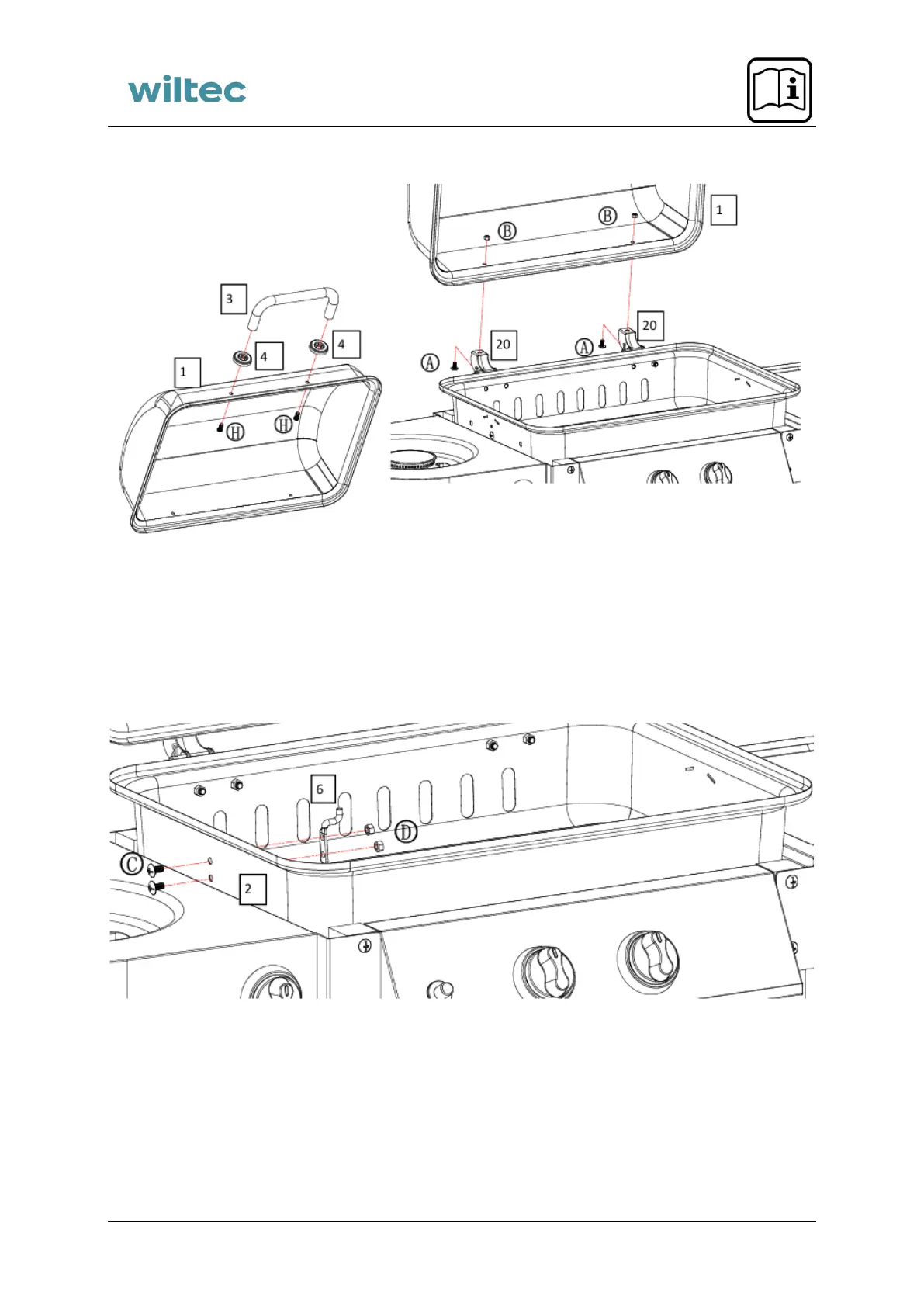

Step 13

1. Attach the lid handle (3) and the handle base (4) to the lid (1) using the M6×15 screws (H).

2. Attach the lid (1) to the burner housing (2) using the M5×12 screws (A) and M5 nuts (B).

Caution! Ensure that the rear edge of the lid rests on the burner housing during installation. If the lid is

screwed too high, it will not close properly and may scratch the surface. Adjust the lid if necessary by

loosening or tightening the hinge screws.

Step 14

Attach the support for the flame protection plate (6) to the burner housing (2) using the M4×8 screws (C)

and M4 nuts (D).
