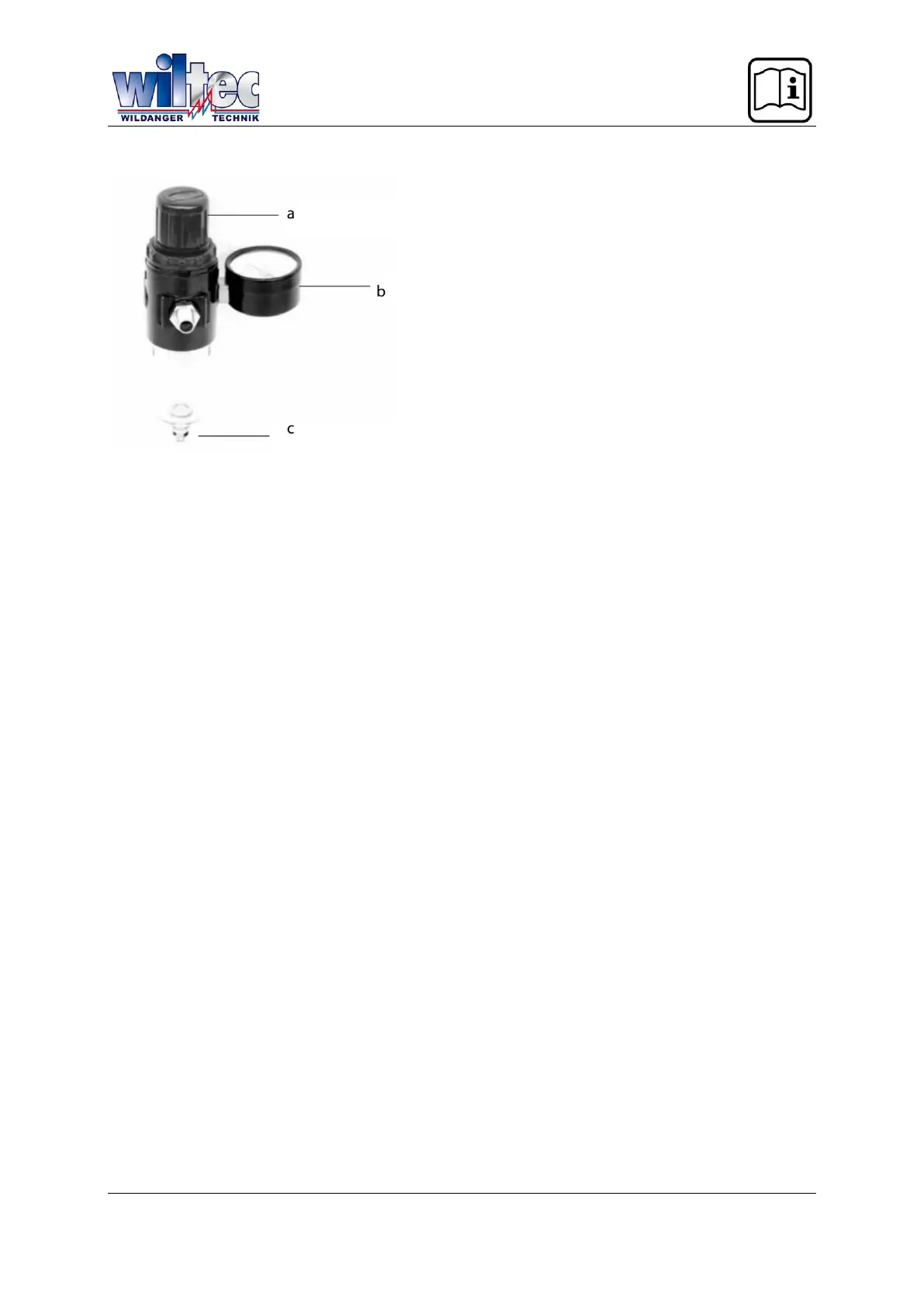

Operating the pressure regulator with filter
a) Pressure regulator
b) Pressure gauge
c) Water drain plug
Product name: Pressure regulator with filter and manometer
Type: AFR-2000
Properties
AFR-2000 is an in-line low-pressure regulator with 9 bar (130 psi) manometer and water drain plug. This
regulator allows you to control the pressure and helps generating clean, dry, and stable air pressure.
The regulator can only be used according to the operating instructions.
Operation:
1. The pressure gauge reports the working pressure of the air tool.
2. Pull up the adjusting knob; a clockwise rotation increases the pressure, a counter-clockwise
rotation reduces the pressure.
3. Rotate the adjusting knob to achieve the right working pressure and engage it by pushing it
downwards.
4. Do not rotate the knob against high resistance. If necessary, the height and position of the knob
can vary slightly.
5. For emptying the condensed water collector, use the water drain plug.
