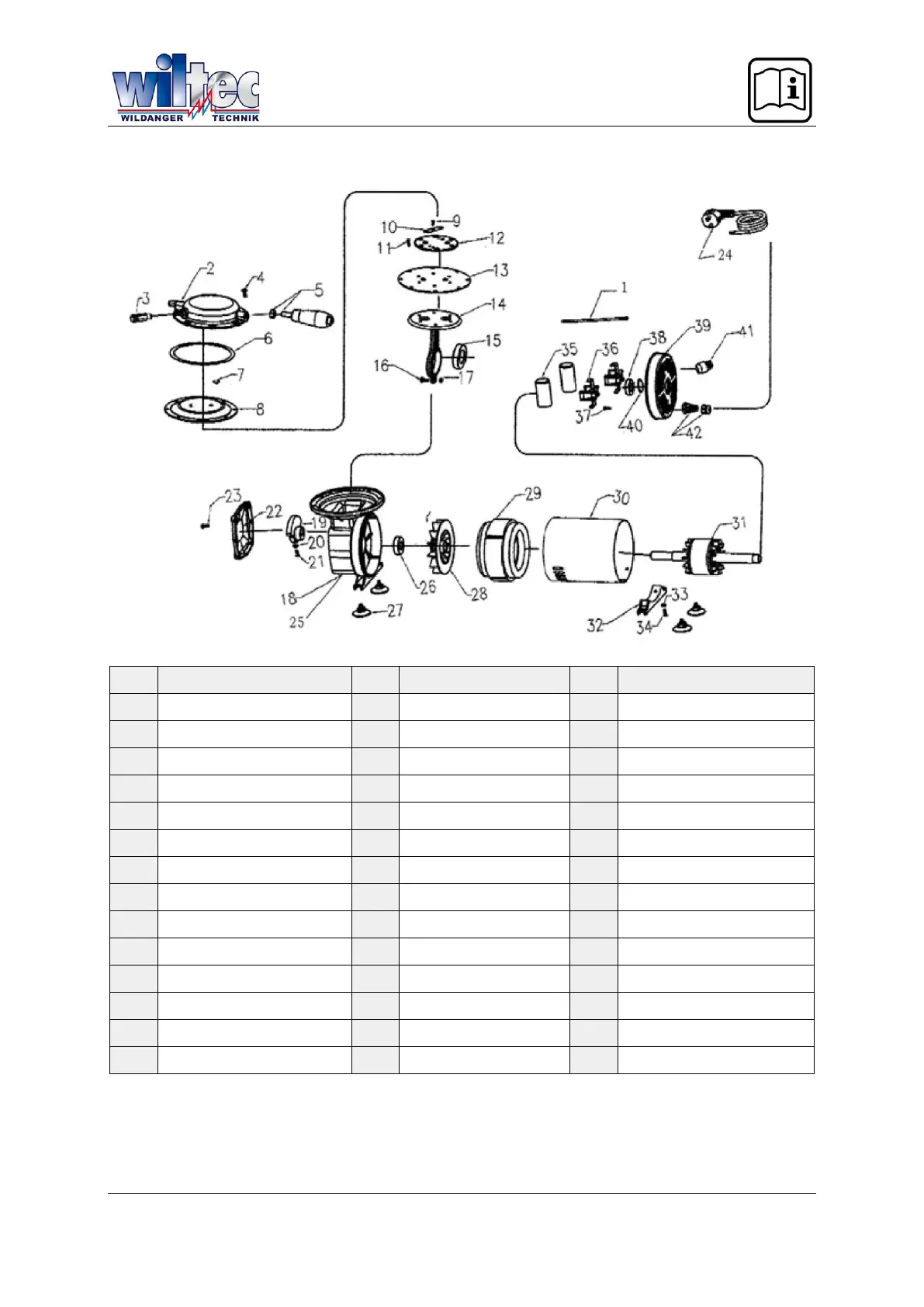

Exploded view and parts list
№
Name
№
Name
№
Name
1
Screw
15
Bearing
29
Shaft
2
Cylinder cover
16
Hexagon bolt
30
Main housing
3
Adjusting valve
17
Hexagon box nut
31
Rotor unit
4
Slotted screw
18
Cylinder head
32
Holder
5
Handle
19
Balance rod
33
Box nut
6
Sealing ring
20
Balance rod
34
Screw
7
Valve
21
Hexagon bolt
35
Capacitor
8
Separating plate
22
Front cover
36
Capacitor holder
9
Slotted screw
23
Slotted screw
37
Screw
10
Valve spring
24
Cable unit
38
Bearing
11
Screw
25
Screw
39
Rear cover
12
Diaphragm fixing plate
26
Bearing
40
Cushion
13
Diaphragm
27
Rubber pad
41
Interrupter
14
Rod
28
Rotor blade
42
Cable sleeve unit
