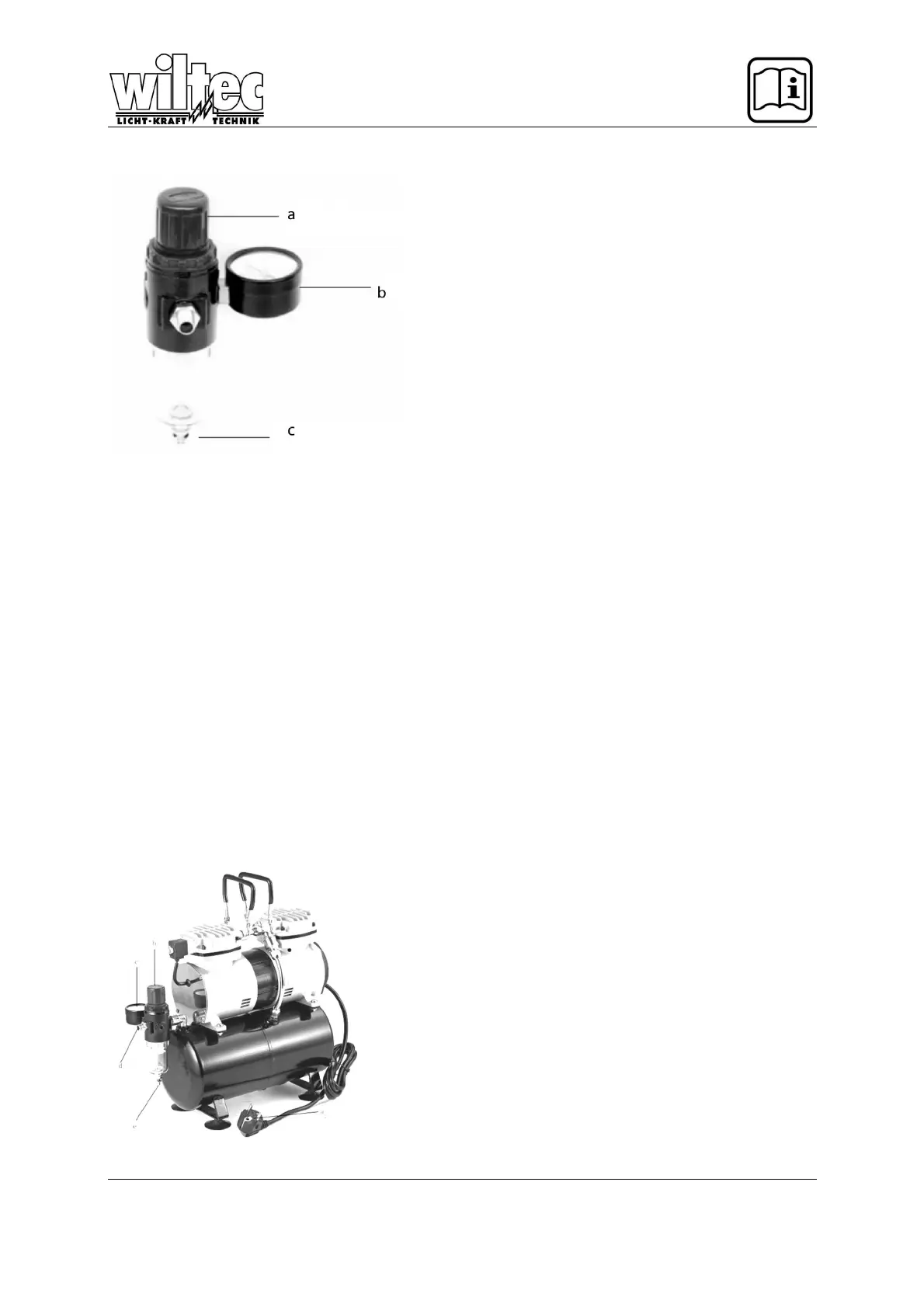

Operation of the pressure relief station with filter
a) Pressure regulator
b) Manometer
c) Water drain plug
Product name: Pressure regulator with filter and manometer
Typ: AFR-2000
Specifications:
The AFR-2000 is an in-line low pressure regulator with 9 bar (100 psi) manometer and water drain
plug. This regulator allows you to control the pressure and helps generating clean, dry, pressure-
stable air. The regulator can be used only according to the operating instructions.
Operation:
o The manometer reports the working pressure of the air tool.
o Pull up the adjusting knob; its clockwise rotation increases the pressure, and a counter-clockwise
rotation reduces the pressure.
o Rotate the adjusting knob to achieve the right working pressure and fixate it downwards by click-
ing it into place.
o Do not rotate the knob against high resistance. If necessary the height and the position of the of
the knob can vary slightly.
o For emptying the condensed water collector use the water drain plug.
Assembly
h) Mains plug
i) Pressure regulator
j) Manometer
k) Air outlet
l) Water drain valve
Double switch:
Switch setting 1: Auto-Stop at 4 bar
Switch setting 2: Maximum pressure at 6
bar
