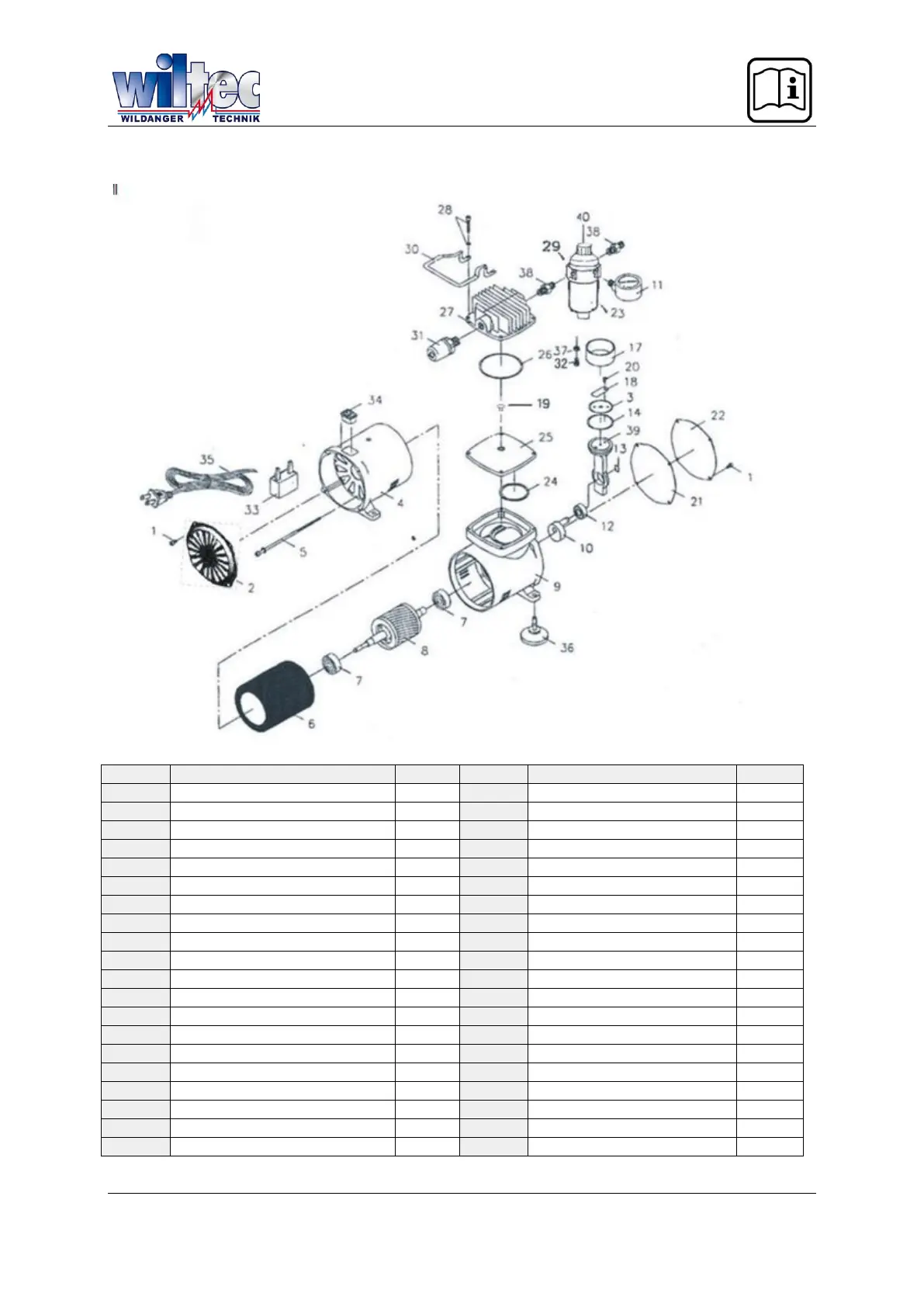

Exploded view and parts list
№
Designation
Qty.
№
Designation
Qty.
1
Screw
8
21
Front gasket
1
2
Rear cover
1
22
Front cover
1
3
–
1
23
Filter
1
4
Rear body
1
24
O-ring
1
5
Screw
4
25
Cylinder block
1
6
Stationary motor
1
26
O-ring
1
7
Bearing
2
27
Cylinder head
1
8
Rotary motor
1
28
Screw cap
4
9
Front body
1
29
Filter valve
1
10
Counterweight
1
30
Handle
1
11
Pressure gauge
1
31
Pressure switch
1
12
Bearing
1
32
Water release needle
1
13
Retainer ring
1
33
Capacitor
1
14
Compression ring
1
34
On/off switch
1
15
–
1
35
Wire
1
16
–
1
36
Rubber pad
4
17
Cylinder
1
37
Hexagon head nut
1
18
Valve plate
1
38
Connection
2
19
Valve
2
39
Connector ring
1
20
Screw
1
40
Pressure controller
1
