Wilton 4103 Operating Instructions

18
Exploded View - Vacuum Scoop
A vacuum scoop connects the machine to the vacuum system. The mounting provisions for the scoop are
shown in the exploded view below.

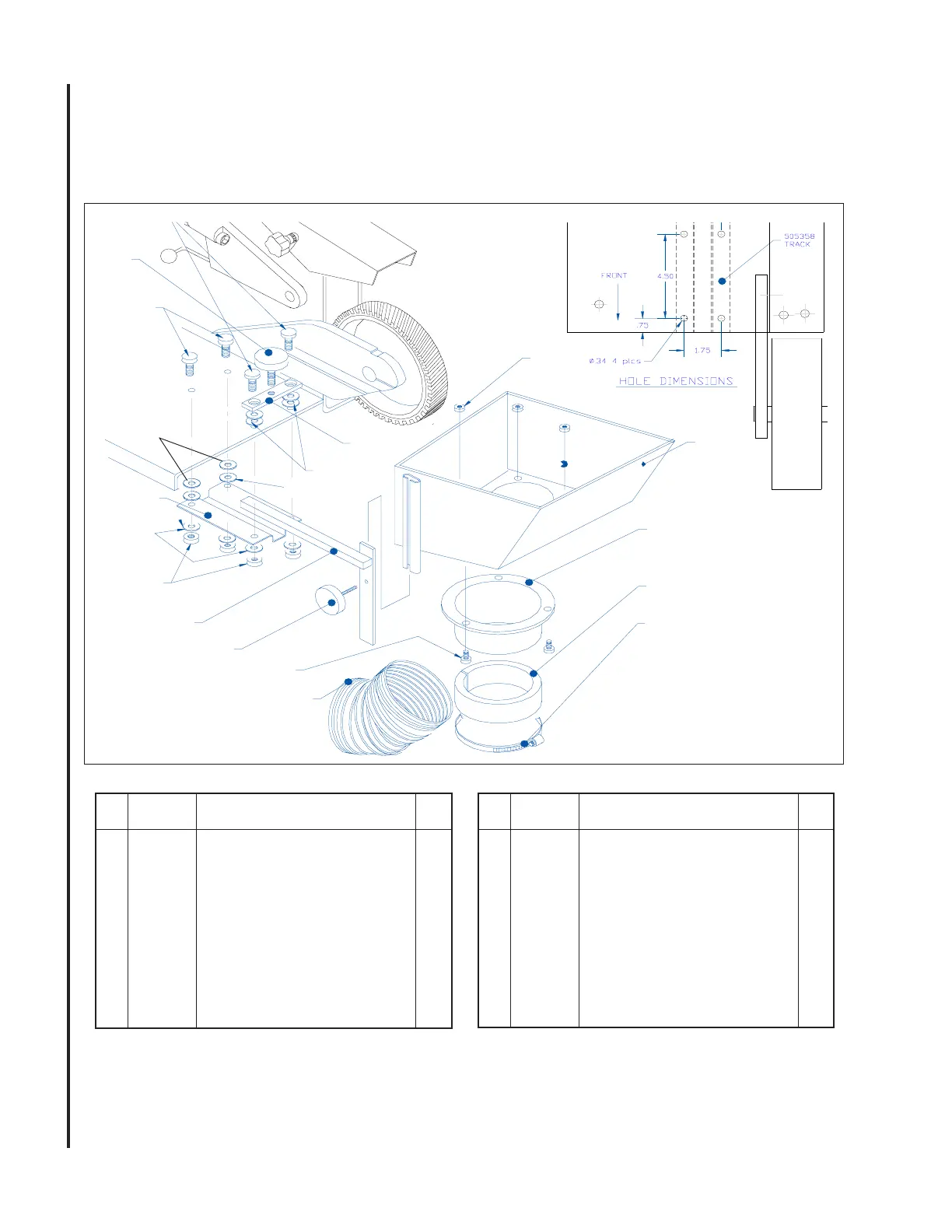

Figure 11: Vacuum Scoop Exploded View
1
2
3
4
5
6
7
8
9
10
11
10
12
10
12
15
7
14
13
Ref. Part
No. Number Description Qty.
1 5053531 Scoop Assembly 1
2 5052471 Adapter, Hose 1
3 5053601 Reducer, 4 x 3 in. 1
(Woodworkers)
5053611 Reducer, 4 x 3 in. 1
(Metal Workers)
4 5507534 Clamp, Hose 3 in. 1
5 5507533 Hose, 3 x 5 in. 1
6 9128241 Screw, HH Cap 3
7 9070361 Knob 2
Ref. Part
No. Number Description Qty.
8 5053571 Rail 1
9 9032961 Lock Nut, Nylon Insert 4
10 9055411 Washer, Nylon 8
11 5053581 Channel 1
12 9057391 Washer, Flat 2
13 9056411 Nut, Hex Jam 3
14 9062111 Screw, SHCS (5/16-18 X 3/4) 2
15 9146801 Screw, SHCS Low Head 2
(5/16-18 X 1 1/2)
