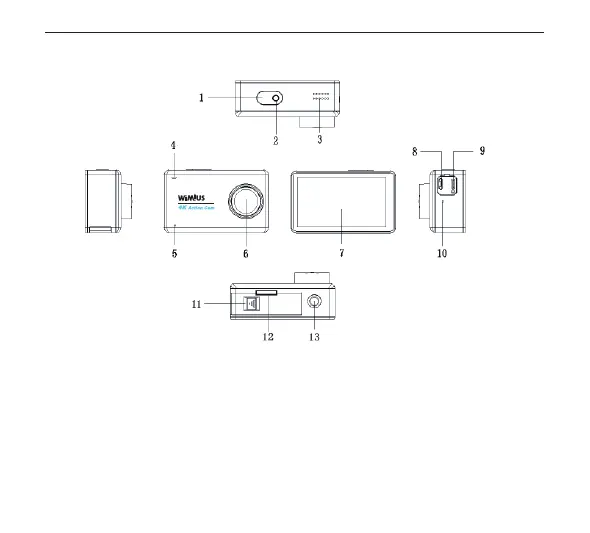

Camera Schematic
1.Shutter/Power Button 2. Video Indicator 3. Speaker
4. Working / Charging Indicator 5. MIC 6. Lens
7. Touch Screen 8. Micro USB Interface 9.HDMI Interface
10. MIC 11. Battery Cover Switch
12. Micro SD Card Slot (need to open the battery cover) 13. 1/4” Screw Hole
