WinGD X72 Maintenance Manual

Maintenance
3303−4/A1
Winterthur Gas & Diesel Ltd.
7/ 9

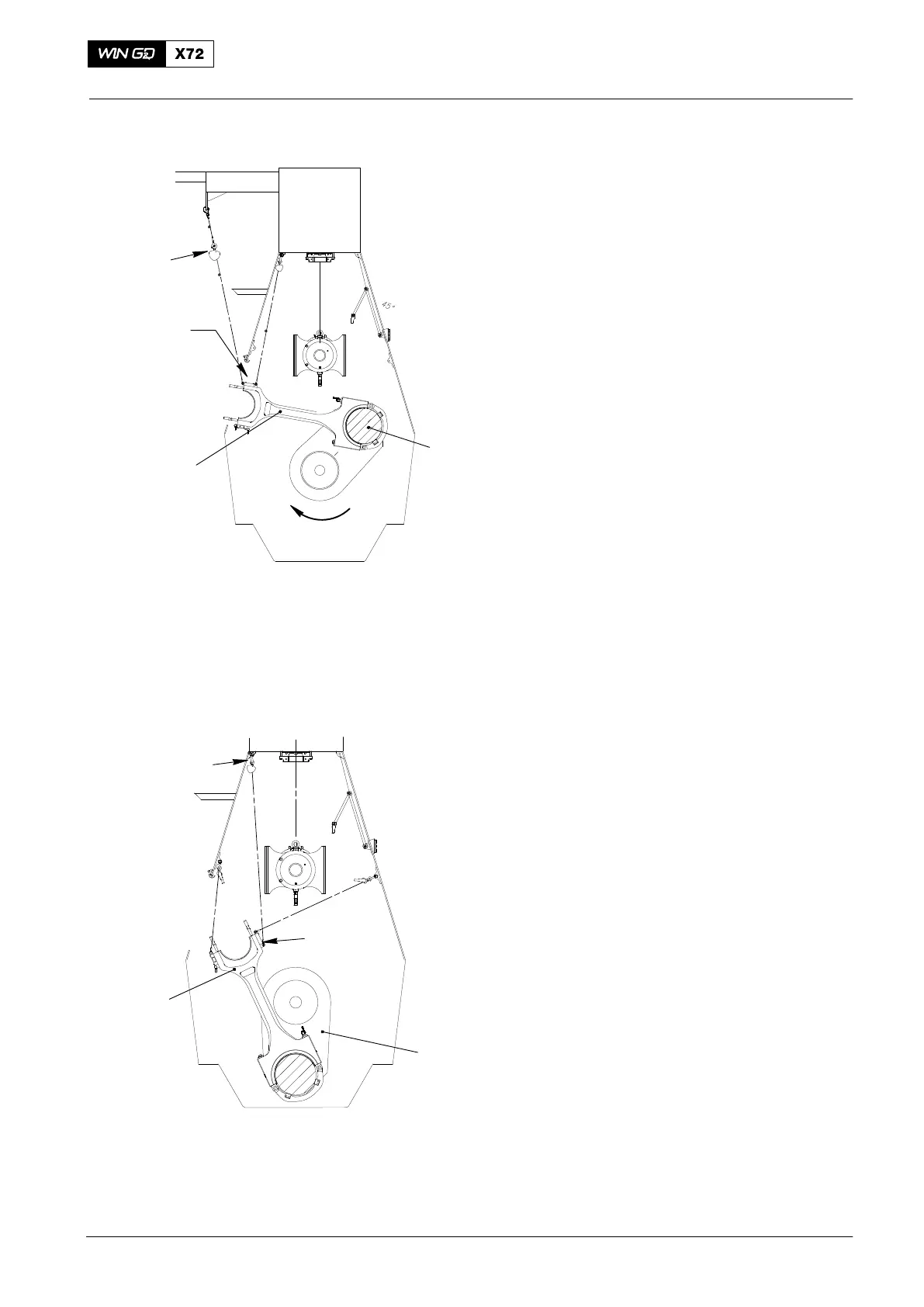

17) Use the turning gear and the chain
block (H4, Fig. 11) to move the
connecting rod (1) and crankshaft (2)
clockwise into the position shown.
18) Attach the chain block (H3) to the
bottom shackle on the lifting
tool (94337).
19) Remove the chain block (H4) and the
chain (94019A or 94019B).
20) Use the turning gear and the chain
block (H3, Fig. 12) to move the
connecting rod (1) and crankshaft (2)
clockwise into the position shown.
21) Attach the manual ratchet (H1) to the
top shackle of the lifting tool (94337).
22) Remove the chain block (H3) from the
bottom shackle of the lifting
tool (94337) and the top of the column.
23) Use the turning gear and the chain
block (H3) to move the connecting rod
(1) and crankshaft clockwise into the
position shown.
2015
Removal and Installation
H3
94017-021
(H4)
94337
WCH02449
2
1
Fig. 11
Fig. 12
94337
WCH02449
H1
H2
H3
94018C
FUEL SIDE
1
2
