2. Crosshead Pin −
Removal

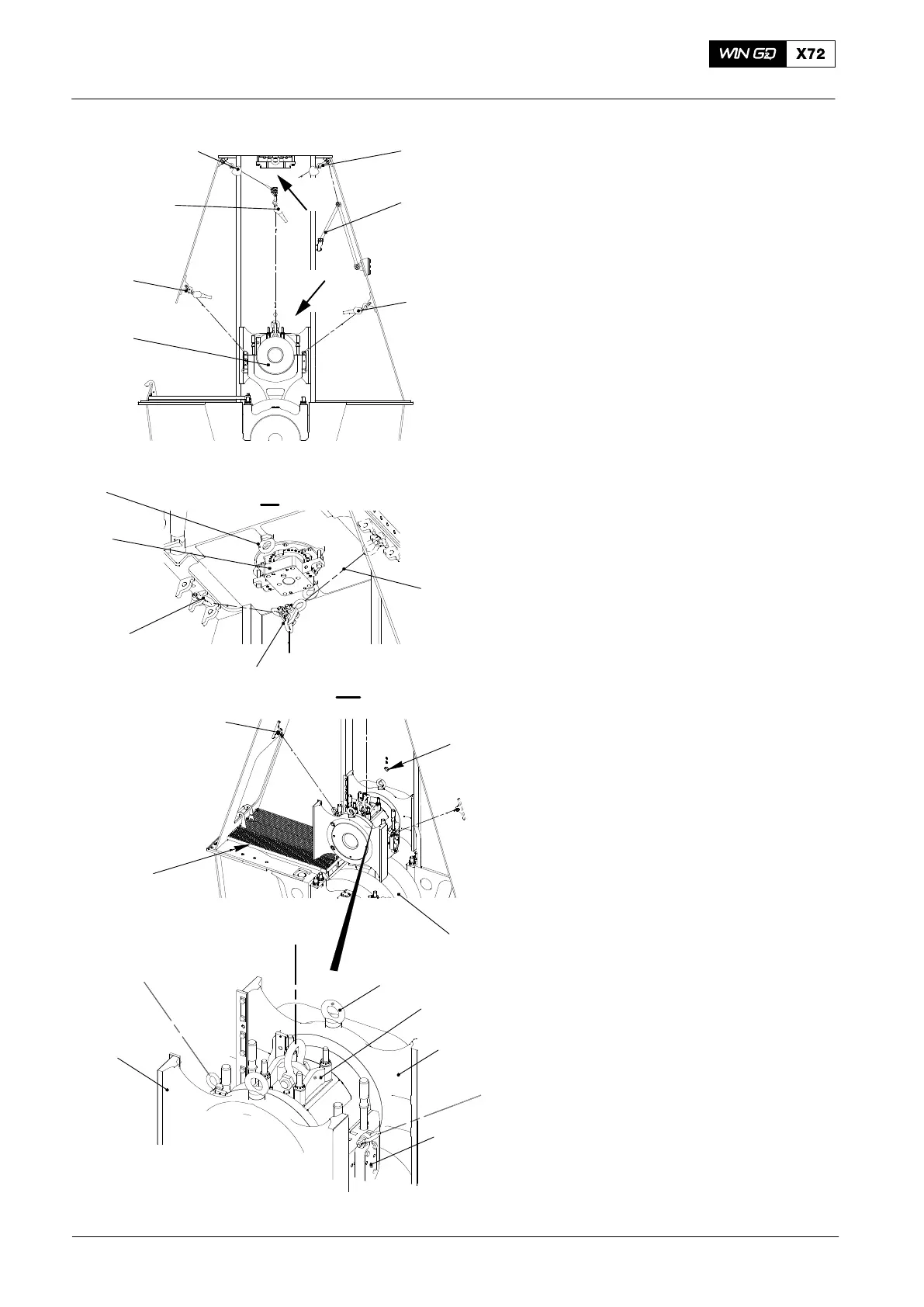

1) Attach the lifting tool (94324) to the
crosshead (see Fig. 1 View II).
2) Attach the two eye bolts (94045−M48)
to the bottom of the cylinder jacket.
3) Attach the two shackles (94018C) to
the top of the column.
4) Attach the two chain
blocks (94017−021) to the shackles.
5) Attach the link (94321) to the chain
blocks.
6) Attach the manual ratchet (94016−017)
to the link and the eye
bolt (94045−M48) on the lifting tool.
7) Attach the two eye bolts (94045−M48)
to the guide shoes (4) and (10).
8) Attach the two lifting tools (94337) to
the connecting rod (6).
9) Attach the two manual
ratchets (94016−011) to the
shackles 94018B. Apply a light tension
to the chains.
2015
Crosshead Pin − Removal / Installation / Clearance Checks
I
II
I
I I
94324
94142
2
1
9
94018C
94018B
94016−017
94045−M48
4
94018C94017−021
94017−021
94016−11
94337
94018B
94321
3
10
94045−M48
WCH02437
6
WCH02437
WCH02437
WCH02437
Fig. 1
