Maintenance3326−2/A1
Winterthur Gas & Diesel Ltd.
4/ 10

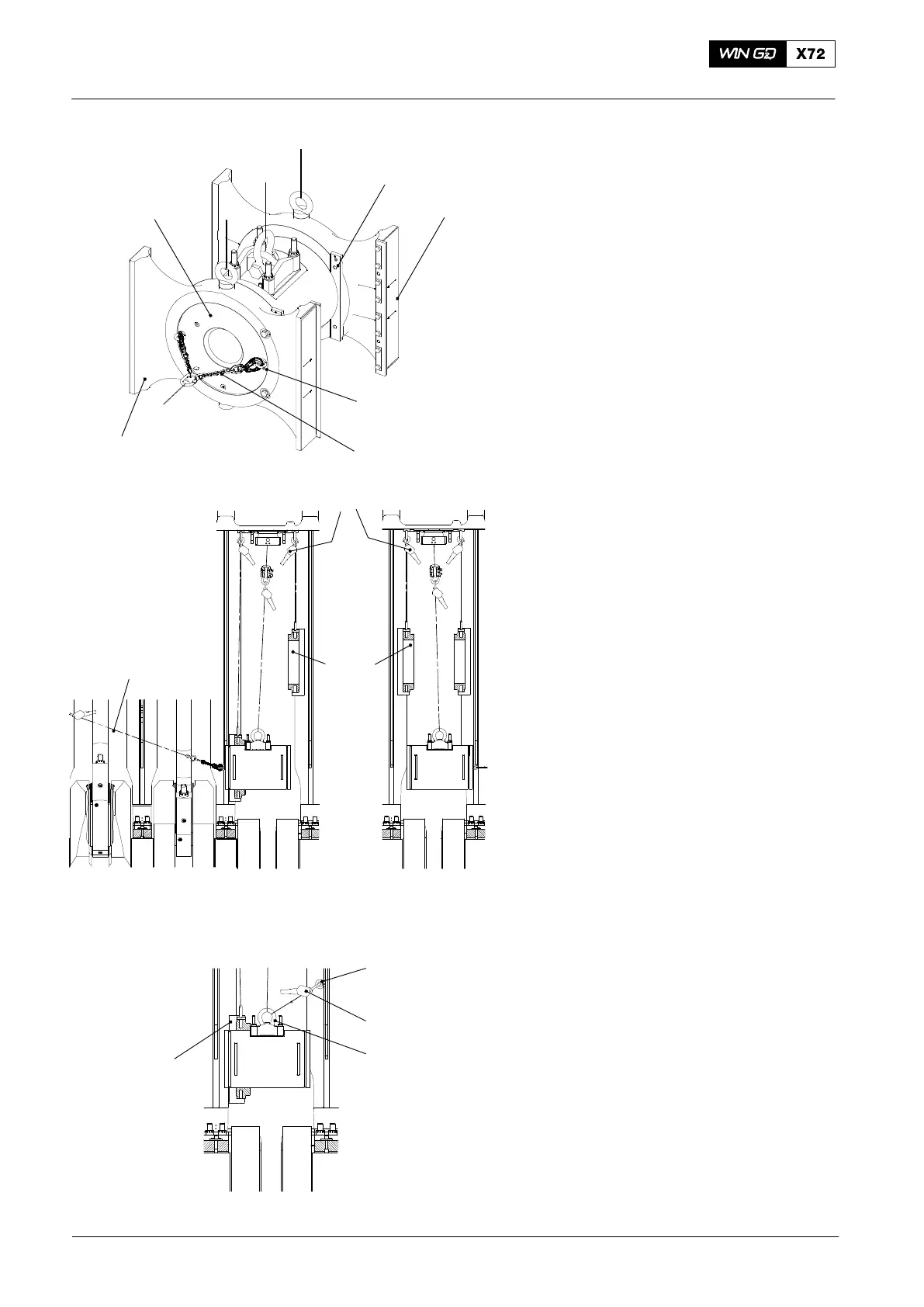

23) Remove the two bolts, tab washers and
holding plates (7, Fig. 5) from the
guide shoe (4).
24) Attach the two eye bolts (94045−M20)
and the chain (94325) to the crosshead
pin (2).
25) Attach the shackle (94018B) to an
applicable position on the column.
26) Attach the manual ratchet (94016−031)
to the eye bolts and the
shackle (94018B).
27) Operate the manual ratchet
(94016−031) to pull the crosshead pin
(2) until the guide shoe (4) is clear.
28) Operate the manual
ratchet (94016−009) to lift the guide
shoe (4).
29) Remove the chain (94325), manual
ratchet (94016−031), shackle (94018B)
and eye bolts.
30) Attach the eye bolts and chain (94325)
to the other side of the crosshead pin.
31) Attach the shackle (94018B) to an
applicable position on the column.
32) Operate the manual ratchet
(94016−031) to pull the crosshead pin
(2) until the guide shoe (10) is clear.
33) Operate the manual ratchet
(94016−009) to lift the guide shoe (10).
34) When the crosshead (2) is in the first or
last cylinder position,do step 35) to
step 42)
35) Attach the eye bolt (94045−M30, Fig. 6)
to the hole in the column.
36) Attach the manual ratchet (94016−031)
to the eye bolt (94045−M30) and the
eye bolt (94045−M48).
37) Use the manual ratchet to pull the
crosshead (2) from the guide shoe (4)
or (10).
38) Use the manual ratchet (94016−009) to
lift the guide shoe (4) or (10).
39) Remove the manual ratchet
(94016−031) and the eye bolt
(94045−M30).
40) Attach the eye bolt (94045−M30) to the
other side of the column.
41) Attach the manual ratchet (94016−031)
to the eye bolt (94045−M30) and the
eye bolt (94045−M48).
42) Operate the manual ratchet to pull the
crosshead (2) from the guide shoe (4)
or (10).
2015
Crosshead Pin − Removal / Installation / Clearance Checks
7
94045−M20
94325
2
4
94016−009
4
10
10
94016−031
4 or 10
994045−M30
94045−M48
WCH02437
WCH02437
WCH02437
94016−031
Fig. 5
Fig. 6
