CHASSIS GROUP (CONTINUED)
6
7
8
9
2
3
4
5
2
2
1
CHASSIS GROUP (CONTINUED)
HYDRAULIC LEVELING SYSTEM (CHEVY,FORD)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
100532-08-000 EA LEVELING SYSTEM - HYDRAULIC - JOYSTICK
100532-01-704 EA SWITCH - MERCURY F/ 6K & 9K JACK RAP1010
100532-01-705 EA SPRING KIT - 9K JACK R1171
100532-02-700 EA 6K TALL JACK ASM RAP7164
100532-02-701 EA SPRING KIT - 6K JACK R6824
100532-02-704 EA ACTIVATOR CABLE - 6K JACK RAP7194
100532-02-705 EA PUMP/ RESERVOIR ASM - MONARCH RAP8178
100532-03-710 EA SENSING UNIT 21' MTA RAP6798
100532-03-715 EA CAP - BREATHER RAP7876
100532-08-700 EA POWER UNIT ASM. RAP0595
100532-08-701 EA BI-AXIS CONTROL - 200 SYSTEM RAP0612
100532-08-702 EA VALVE - BI-AXIS RAP9589
100532-08-703 EA PANEL ASM. - 200 BI - AXIS SYSTEM RAP9755
100532-08-704 EA JACK ASM. - 9K TALL 200 SYSTEM RAP7002
100532-08-705 EA KNOB - 3/4" BLACK - SET OF FOUR RAP1379
100532-08-706 EA KNOB - 1 3/16" BLACK RAP9734
100532-08-707 EA BEZEL W/ GASKET - F/ SYSTEM 200 RAP9592
100532-09-707 EA ACTUATOR ASM. - 9K - REAR JACKS RAP0547
100532-09-709 EA ACTUATOR ASM. - 6K - FRONT JACKS RAP0448
100532-09-710 EA SOLENOID - 4 POST (INTERMITENT) RAP0533
100533-05-000 EA BRACKETS - FRONT LEVELING JACKS (GM)
100533-06-000 EA BRACKETS - FRONT LEVELING JACKS (FORD)
100534-12-000 EA BRACKETS - REAR LEVELING JACKS (GM)
100534-06-000 EA BRACKETS - REAR LEVELING JACKS (FORD)
100536-18-000 EA HOSE KIT
100536-09-700 EA HOSE - HYDRAULIC - 324" RAP2464
100536-09-701 EA HOSE - HYDRAULIC - 60" RAP4073
100536-09-702 EA HOSE - HYDRAULIC - 354" RAP4311
100536-10-700 EA HOSE - HYDRAULIC - 84" RAP1412
100536-10-701 EA HOSE - HYDRAULIC - 116" RAP5384
107890-01-000 EA ELBOW - STEEL 90D 1/4 X 37D FLARE PARKER 4-C6X-S
112236-01-E10 EA BEZEL - MONITOR - UNDER DASH - LEFT SIDE
BRAKE LINE
KEY PART NUMBER U/M DESCRIPTION
088498-01-000 EA UNION - INVERTED FLARE - BRASS - 3/16 - 3/8 - 24 THREAD - BRAKE LINE
088497-02-000 EA NUT - INVERTED FLARE - 1/4"
085771-03-000 EA NUT - HEX - FL. PREV. TORQUE - GRADE G DRIVE SHAFT
SHOCK ABSORBER (CHEVY)
KEY PART NUMBER U/M DESCRIPTION
104993-01-000 EA SHOCK ABSORBER-GAS, P30 FRONT-BILSTEIN B46-1173 (SINGLE-1)
FROM: 00-00-00 THRU: 01-07-96
104993-02-000 EA SHOCK ABSORBER-GAS,P30 FRONT
FROM: 01-08-96 THRU: 99-99-99

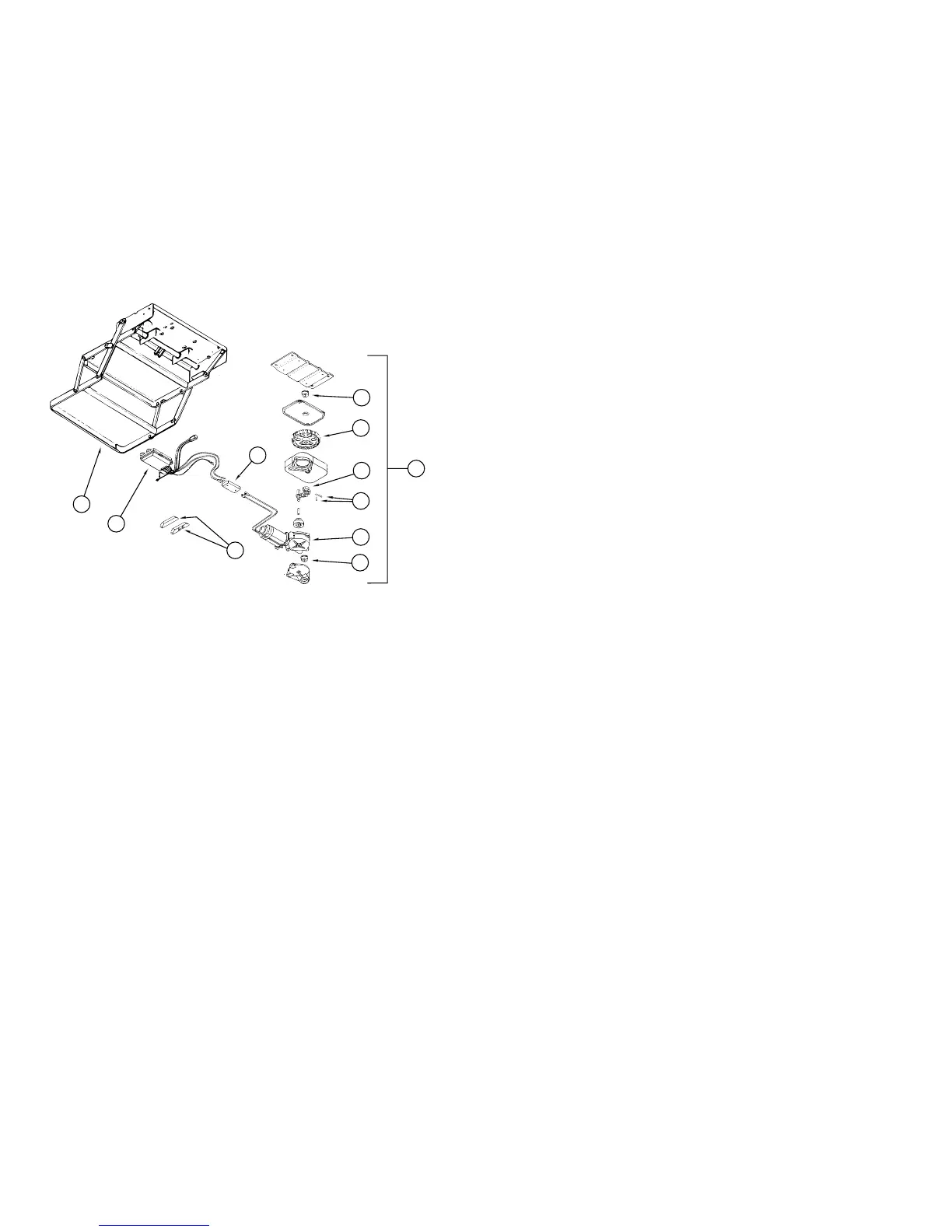

STEP ASSEMBLY KWIKEE (3200 SERIES)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 094707-01-01A EA STEP-ENTRY DOOR, ELECTRIC - DOUBLE - 3218
2 094707-02-703 EA BEARING & PINS 909530
3 094707-02-702 EA GEAR KIT, W/BEARINGS, PIN-CASE 909525
4 094708-02-701 EA LINKAGE ASSEMBLY 909523
5 094707-02-700 EA MOTOR ASM., W/BEARINGS & PINS 909520
6 094707-01-702 EA FRAME W/DOUBLE STEP 908032
7 094707-02-705 EA CONTROL UNIT, WHITE 909513
8 094707-02-704 EA CONNECTOR-MOTOR ASM.W/PLATES 909537
094707-02-707 EA TREAD-NON SKID, BLACK 6" X 21" 909333
9 116995-01-000 EA SWITCH/MAGNET-STEP, ELECTRIC - 905306
