Winnebago 1996 WCG32WQ User Manual

HEATING & AIR CONDITIONING GROUP (CONTINUED)

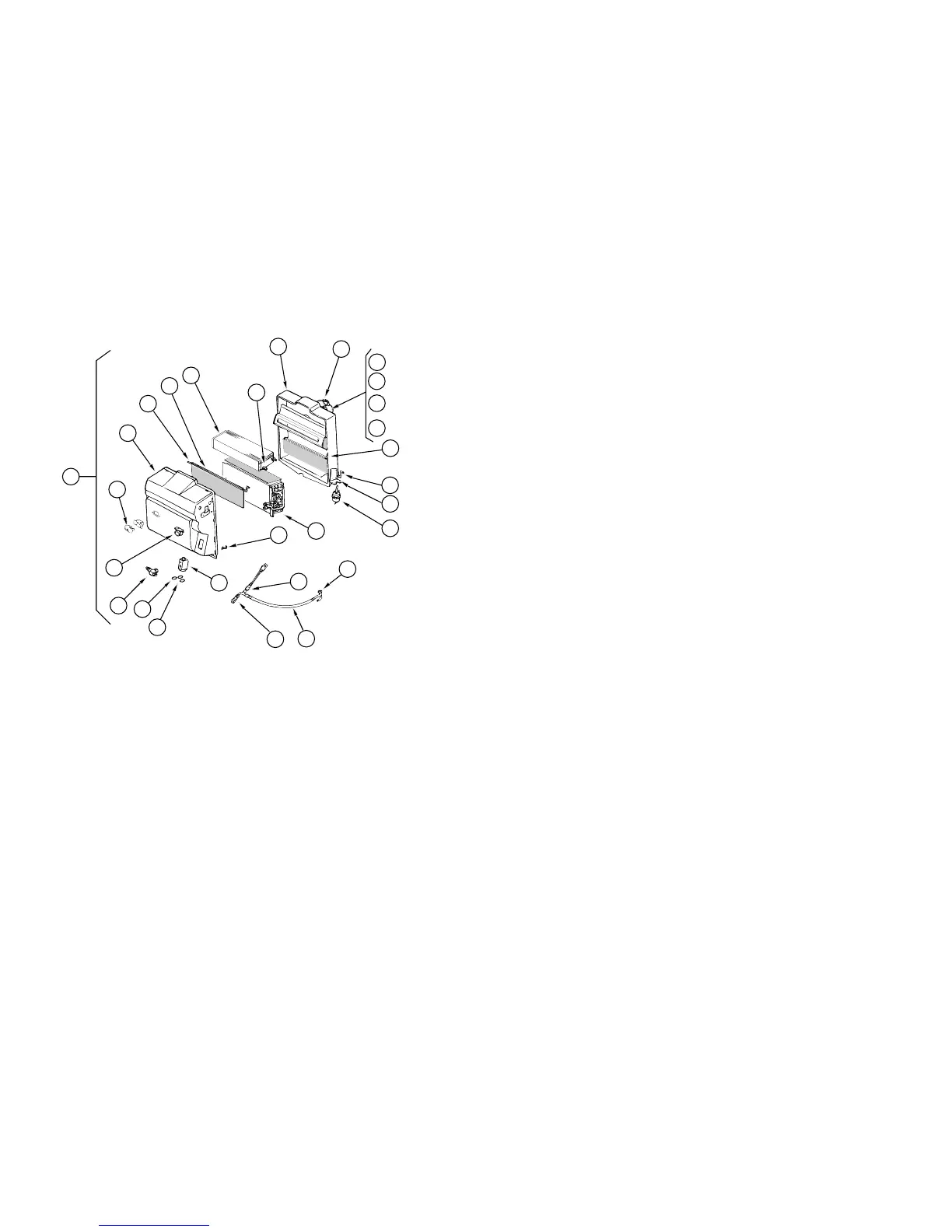

SCS AUTOMOTIVE AIR CONDITIONING (CHEVY)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 103930-20-000 EA EVAPORATOR/ HEATER ASSEMBLY - 090-00084
2 103930-01-710 EA RESISTOR - FUSED 035-0006
3 103930-20-702 EA ROD F/BLEND AIR DOOR 073-0039
4 103930-20-703 EA DOOR - BLEND AIR 071-0212
5 103930-01-703 EA COIL - HEATER 042-0010
6 110279-01-712 EA HEATER FITTING
7 110279-01-703 EA HOSE - VENT - MOTOR BLOWER 70510034
8 103930-01-717 EA WHEEL - CLOCKWISE 062-0010
9 103930-01-720 EA MOTOR 030-0004
10 103930-20-707 EA BLOWER HOUSING 062-0145
11 103930-20-708 EA CLIP F/ MOTOR SHAFT 022-0001
12 103930-20-705 EA DOOR PANEL - RECIRCULATING 071-0213
13 103930-20-704 EA ROD - DOOR - RECIRCULATING 073-0018
14 103930-01-708 EA BRACKET - VACUUM MOTOR 070-0113
15 103930-02-708 EA MOTOR - VACUUM SERVO - A/C 030-0002
16 103930-01-704 EA COIL EVAPORATOR 041-0017
17 103930-12-708 EA SWITCH - BINARY - R-134A 032-0048
18 103930-01-716 EA SWITCH - PRESSURE - FAN 032-0036
19 103930-20-701 EA HOSE ASM. - #6 GM 085-0138
20 103930-12-709 EA FITTING - QUICK CONNECT 050-0120
21 103930-20-706 EA CLIP - RETAINER 022-0057
22 103930-20-700 EA VALVE EXPANSION BLOCK (2 TON) 034-0032
23 103930-17-702 EA GASKET OR SAE 015 #10 33-781 045-0127
24 113245-01-707 EA GASKET 045-0126
25 103930-20-709 EA SERVICE VALVE W/O C.P. 050-0159
26 103930-01-711 EA THERMOSTAT 033-0003
27 103930-20-710 EA CASE-FRONT, SUB-ASSEMBLY 062-0146
28 103930-20-710 EA CASE-BACK, SUB-ASSEMBLY 062-0147
007281-01-000 EA HOSE - FLEXIBLE PVC - 2.5"ID X 50' - ATCOFLEX - A-182-355
072341-06-700 EA SWITCH - 4 SPEED - FAN ARA 0883502
094831-01-709 EA CLAMPS - ROD - 3/16" - MOTIVAIR ZGG14431
103930-02-701 EA VALVE - CONTROL HEAD 034-0015
103930-02-702 EA DECAL - FAN SWITCH 058-0008
103930-02-703 EA HARNESS - WIRE CONTROL 036-0048
103930-02-704 EA HARNESS - VACUUM CONTROL 036-0049
103930-02-705 EA CABLE - CONTROL - BOWDEN 074-0011
103930-02-706 EA CLIP - CABLE - CONTROL 022-0017
103930-02-707 EA RELAY 031-0001
103930-02-710 EA CANISTER - VACUUM 054-0002
103930-02-711 EA VALVE - WATER 034-00114
103930-02-712 EA CONTROL PANEL - A/C & HEAT - BLACK FACING
103930-04-000 EA CONTROL/ PLENUM SET - 093-00037
103930-05-000 EA MANUAL - OWNERS - HEATER - A/C - 057-0049
024990-05-000 EA 4" DIAMETER OUTLET - W/ SWIVEL DEFLECTORS
103016-01-000 EA PLENUM - TRANSITION
103017-01-000 EA PLENUM - DEFROSTER
103558-01-07A EA VENT - DEFROSTER - ABS WILLOW
103796-01-01A EA LOUVER ASM - A/C CARY PROD BLACK
056402-05-000 EA BRACKET - HEATER VENT - ROUND - W/ BEND - BLACK
077075-01-000 EA GASKET - INSTRUMENT PANEL TO DEFROSTER PLENUM - .6" X 11.3"
077075-03-000 EA GASKET - INSTRUMENT TO DEFROSTER PLENUM - SPL
3
4
5
6
7
8
9
10
11
12
13
14
15
21
22
23
24
2
18
19
17
20
26
16
1
25
27
28
