WINDOW, VENT & EXTERIOR DOOR GROUP (CONTINUED)

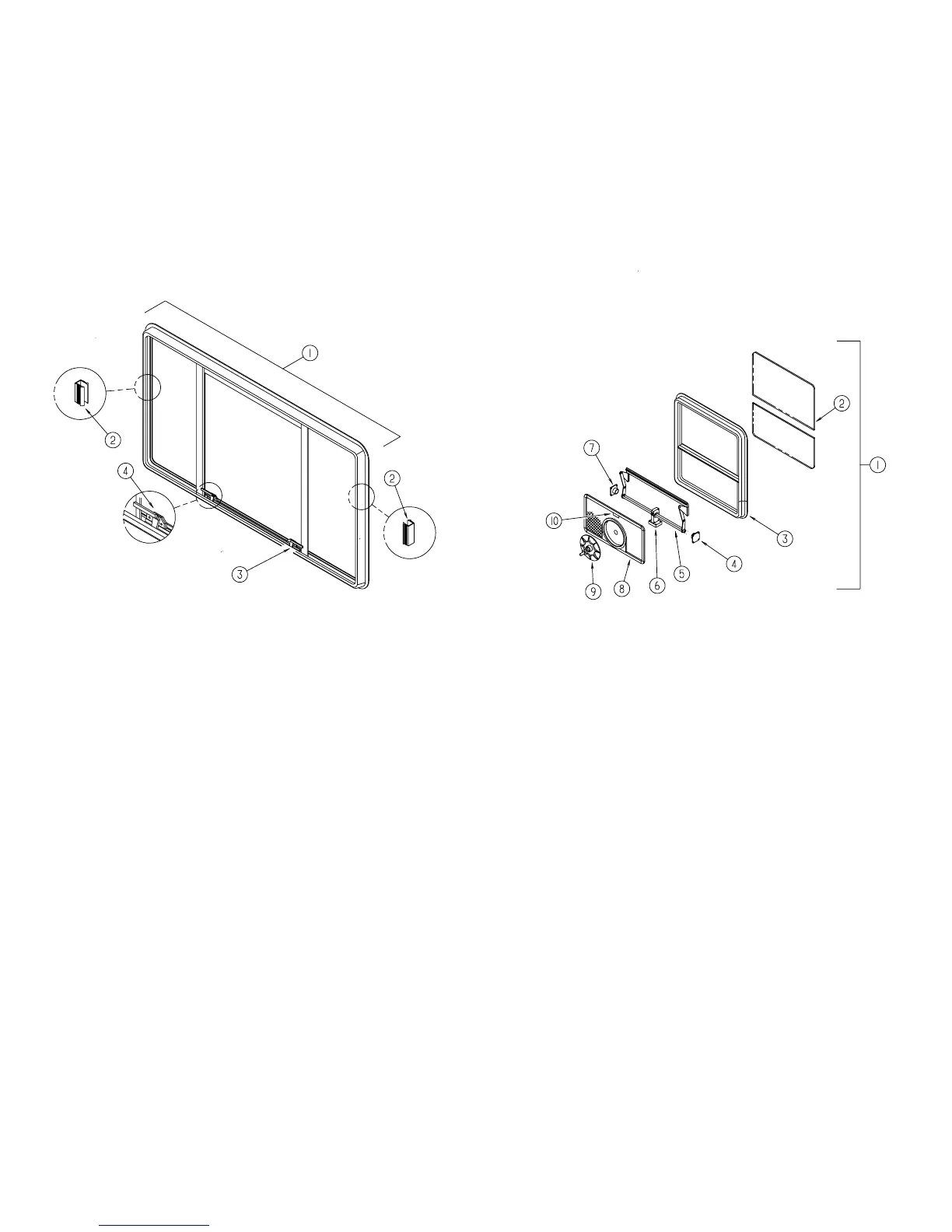

EXCEL BACKWALL THERMOPANE ESCAPE WINDOW (KING OR QUEEN BED)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 113502-01-01A EA WINDOW ASM-REAR ESCAPE BLK/O/W - EXCEL DH153-G2W60
2 098644-01-705 FT STRIP-GLAZING, BUTYL 132-010723
3 112898-06-704 EA HANDLE-LATCH, RED - RH 182-11293
4 112898-06-705 EA HANDLE-LATCH, RED - LH 182-11294
WINDOW, VENT & EXTERIOR DOOR GROUP (CONTINUED)
EXCEL QUEEN BEDROOM WINDOW (EXCEL TIPOUT)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 112463-01-01A EA WINDOW ASM - TORQUE - TIPOUT - CH81-G2W59
112463-01-702 EA RETAINER-TRIM, WHITE CW8159
2 112463-01-700 EA GLASS - STATIONARY 62 % GP 106-018807
3 112463-01-701 EA WINDOW W/O TRIM CH81-G2
4 113500-01-707 EA SUPPORT - TORQUE BAR, RH 130-015979
5 112463-01-704 EA OPERATOR & BAR ASSEMBLY CH78-18
6 112463-01-703 EA VENT ASSEMBLY CH81-G9
7 113500-01-708 EA SUPPORT - TORQUE BAR, LH 130-015978
8 112463-01-705 EA SCREEN ASSEMBLY 410-018811
9 100322-01-718 EA HANDLE - DIAL 410-016081
10 112519-01-706 EA CLIP - SCREEN CH21-50
100322-01-703 FT STRIP - GLAZING 132-010723
EXCEL TWIN BEDROOM WINDOW (EXCEL TIPOUT)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 112463-02-01A EA WINDOW ASM - TORQUE - TIPOUT - CH82-G2W59
112463-02-701 EA RETAINER-TRIM, WHITE CW8259
2 112463-02-702 EA GLASS - STATIONARY 62 % GP 106-018809
3 112463-02-700 EA WINDOW W/O TRIM CH82-G2
4 113500-01-707 EA SUPPORT - TORQUE BAR, RH 130-015979
5 112463-02-704 EA OPERATOR & BAR ASSEMBLY CH82-18
6 112463-02-703 EA VENT ASSEMBLY CH82-G9
7 113500-01-708 EA SUPPORT - TORQUE BAR, LH 130-015978
8 112463-02-705 EA SCREEN ASSEMBLY 410-018812
9 100322-01-718 EA HANDLE - DIAL 410-016081
10 112519-01-706 EA CLIP - SCREEN CH21-50
100322-01-703 FT STRIP - GLAZING 132-010723
