WINDOW - VENT & EXTERIOR DOOR GROUP (CONTINUED)

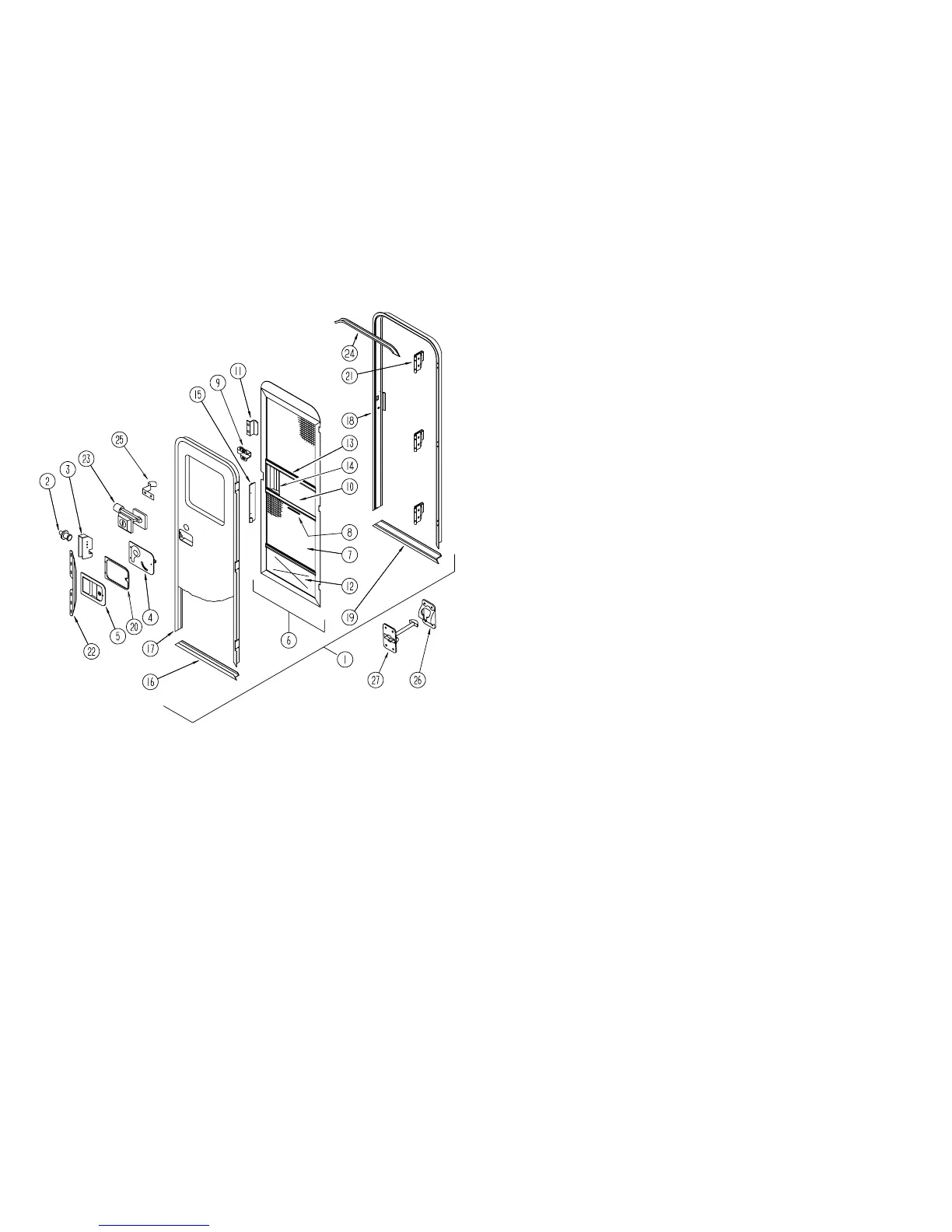

ENTRY DOOR W/O WINDOW
KEY PART NUMBER U/M DESCRIPTION
1 115108-02-G15 EA DOOR - ENTRANCE - W/ SCREEN - W/O WINDOW
1 115108-02-G16 EA DOOR - ENTRANCE - W/ SCREEN - W/O WINDOW
1 115108-02-G17 EA DOOR - ENTRANCE - W/ SCREEN - W/O WINDOW
2 039539-01-000 EA STRIKE - LOCK - ENTRY DOOR - ROUND W/THREADED WASHER
077461-03-000 EA COVER - STRIKE - ENTRY DOOR - 6.5" X 2.5" - PLASTIC - OFF WHITE
3 039540-01-000 EA LATCH MECHANISM - HOOK - ENTRY DOOR - INTERIOR
039715-01-000 EA NUT - SERT - 1/4" DIAMETER - 20 THREADS
4 039979-06-000 EA COVER ASM - LATCH PLATE, RH - BLACK - T/M 11883-01
039984-01-000 EA CAP - ROUND - VINYL - .28" ID X .62" LONG - BLACK
041546-05-000 EA BRACKET - DOOR ANGLE - 5" X 1.9" - METAL - OFF WHITE
FROM: 00-00-00 THRU: 10-22-95
041546-07-000 EA BRACKET - DOOR ANGLE - METAL - OFF WHITE
FROM: 10-23-95 THRU: 99-99-99
5 045017-13-000 EA LATCH - ENTRY DOOR - BLACK - T/M 11896-01
045017-11-701 EA KEY - BLANK - ROUND TOP - SILVER - TRI/ MARK
058806-03-000 EA PLUG - TAPERED - PLASTIC - 1.06" DIAMETER - RED
063729-04-000 EA RIVNUT - 10-32 UNF - .010-.080
072893-01-000 EA NUT-SERT - M5 X 0 8
075671-04-000 FT SEAL - SPONGE - LAZY T SHAPE - W/ADHESIVE STRIPE - .5" WIDE
6 079012-05-B10 EA DOOR - SCREEN - ENTRANCE DOOR
7 002293-02-000 SF SCREENING - WINDOW/DOOR - 26" - CHARCOAL
8 002294-01-000 FT SPLINE - SCREENING - .135" X .138" - BLACK
9 100412-01-000 EA CATCH - SCREEN DOOR
10 016454-01-000 EA INSERT - CENTER - LEATHER GRAIN ALUMINUM - UNPAINTED
001014-01-013 EA SHEET - ALUMINUM - LEATHER GRAIN - 10.25" X 16.31" - UNPAINTED
11 050712-04-000 EA HANDLE - SCREEN DOOR - ALUMINUM - OFF WHITE
12 078552-03-000 EA KICK PANEL - SCREEN DOOR - LOWER INSERT - UNPAINTED
078595-01-000 EA TOP PLATE - SCREEN DOOR - CURVED TOP - 4.7" X 25.35"
13 078777-01-000 EA CHANNEL - SLIDE - SCREEN DOOR CENTER SLIDER COVER
14 079086-02-000 EA SLIDER - SCREEN DOOR - OFF WHITE
15 079087-02-000 EA STRIKE - SLIDER - W/ LIP FOR ELBOW CATCH - 1.5" X 8.6" - OFF WHITE
16 089748-09-000 EA FRAME - BOTTOM - ENTRY DOOR - 24.8" LONG - BUFF
090340-02-000 FT SEAL - FOAM - CLOSED CELL - 3/8" X 1/2" X 50'
17 095276-03-05A EA FRAME - ENTRANCE DOOR - BUFF
18 095277-04-05A EA JAMB - ENTRANCE DOOR - BUFF
19 051049-01-000 EA JAMB - BOTTOM - ENTRY DOOR - 25.9" - UNPAINTED
20 096810-01-01A EA PLATE - LATCH - ENTRY DOOR - PLASTIC - BLACK
21 106719-01-01A EA HINGE - ENTRANCE DOOR - MILL
22 098173-01-04A EA STIFFENER - ENTRY DOOR - SUPPORTS LATCH/STRIKE AREA - UNPAINTED
118929-01-01A FT SEAL - PILE, PUSH-ON - AMESBURY XC-964
23 101145-01-04A EA DEADBOLT - ENTRY DOOR - BUFF/BLACK
095229-01-700 EA KEY - BLANK, DEADBOLT - 81205-03
101145-01-701 EA CYLINDER - LOCK ASM, W/KEY - 81306-03
101147-01-000 EA BOLT - SECURITY - 4.12" BACKSET
102524-01-000 EA BUMPER - RUBBER - FLAT - BLACK
040944-01-000 EA LABEL - ENTRANCE DOOR - "OPEN"
24 044582-33-000 EA CAP - DRIP - DOOR JAMB MOUNTED -
115222-02-01A EA GARNISH - RADIUS - ENTRANCE DOOR - OFF WHITE
25 100412-01-000 EA CATCH - SCREEN DOOR - THUMB CLIP
26 104099-02-01A EA CATCH - DOOR HOLDER - RETAINER - OFF WHITE
27 104099-01-01A EA CATCH - DOOR HOLDER - STRIKE - OFF WHITE
009126-03-000 EA HANDLE - ASSIST - BLACK TEXTURED - T/M 10087-01
093673-01-01A FT TRIM - ENTRANCE DOOR - 1.4" WIDE X 8' LONG - OFF WHITE PLASTIC
102248-01-000 EA SHIM - DOOR
