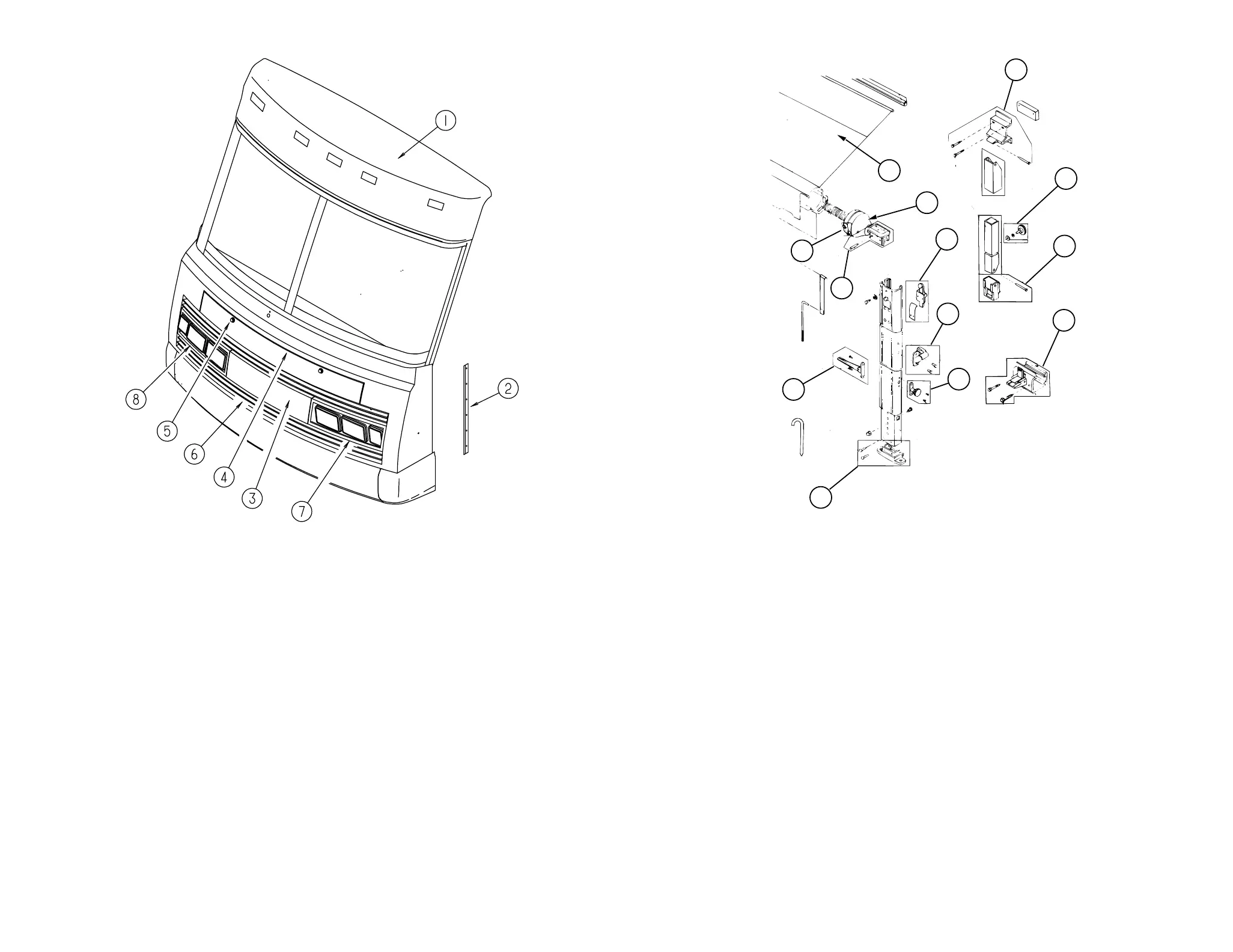

EXTERIOR BODY GROUP
FRONT END COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1 M05145-05-F24 EACAP ASM-FRONT, BRIGHT WHITE
070579-06-000 EAPLATE-ANCHOR, W/7/16 WELD NUT - 1.5" X 3.3"
077001-01-000 EAANGLE-MOUNTING, ROOF PANEL - V ANGLE - 3" X 2.4" X 1.5"
2 089922-27-000 EATRIM-FRONT END/SIDEWALL, DRIVER OR PASSENGER SIDE - BRIGHT WHITE
3 103485-01-04A EAFRONT END ASM-W/GRILLE ASM, W/O HOOD OR HOOD HINGES - BRIGHT WHITE
4 103478-02-F24 EAPANEL ASM-HOOD
058786-01-000 EABOLT-ADJUSTING, HOOD - W/BLACK PAD - .31" #18 X 2"
5 102330-02-000 EALOCK-SINGLE HOLE, VISE ACTION - SOUTHCOE 3-56-715-5
102328-01-000 EAKEY-BARREL, NICKEL PLATED - SOUTHCOE 3-26-715-19
104584-03-000 EABRACKET ASM-HOOD HINGE, BODY - RIGHT
104584-04-000 EABRACKET ASM-HOOD HINGE, BODY - LEFT
105095-01-000 EALINK ASM-HINGE, HOOD - INNER RIGHT
105095-02-000 EALINK ASM-HINGE, HOOD - INNER LEFT
104582-02-000 EALINK ASM-HINGE, HOOD - OUTER
6 110598-01-E07 EAGRILLE ASSEMBLY - 4 BAR
7 103617-02-04A EABEZEL-HEADLIGHT, DRIVER SIDE - BRIGHT WHITE
8 103617-01-04A EABEZEL-HEADLIGHT, PASSENGER SIDE - BRIGHT WHITE
110690-01-D18 EAPLATE ASM-HEADLAMP, QUAD - PASSENGER - BLACK - STEEL
110692-01-01A EAPLATE-HEADLAMP, QUAD - PASSENGER - UNPAINTED - STEEL
110690-02-D18 EAPLATE ASM-HEADLAMP, QUAD - DRIVER - BLACK - STEEL
110692-02-01A EAPLATE-HEADLAMP, QUAD - DRIVER - UNPAINTED - STEEL
110691-01-01A EABRACKET-SPRING, HEADLAMP - DRIVER OR PASSENGER SIDE - UNPAINTED
110782-01-000 EAANGLE-SUPPORT, HEADLAMP - STEEL
110783-01-01A EABRACKET-HEADLAMP, QUAD - PASSENGER - UNPAINTED
110783-02-01A EABRACKET-HEADLAMP, QUAD - DRIVER - UNPAINTED
KEYPART NUMBER U/MDESCRIPTION
1 110634-11-10A EAAWNING-ROLLER ASSEMBLY, 11'
110634-02-04A EAHARDWARE KIT-AWNING, BRIGHT WHITE
2 110634-01-700 EARAFTER LOCKING MECHANISM KIT - 7605-0001
3 110634-01-701 EASAFETY & LATCH KIT - 7509-0001
4 110634-01-702 EABOTTOM BRACKET KIT - 7512-0001
5 110634-01-703 EAHEIGHT LOCK HANDLE KIT - 7510-0001
6 110634-01-704 EAUPPER BRACKET KIT W/BOLTS - 7505-0001
7 110634-01-705 EAULTRA RAFTER KNOB KIT - 7522-0001
8 110634-01-706 EARAFTER SLIDE KIT
9 110634-01-707 EAGROUND BRACKET KIT - 7511-0001
10 110634-01-708 EALIFT HANDLES W/RIVETS - 7000-0001
11 110634-01-709 EARATCHET HANDLE KIT - 7507-0001
12 110634-01-710 EAARM CAP KIT - 7503-0001
13 110634-01-711 EAFRONT SPRING ASM - 6598-0001
13 110634-01-712 EAREAR SPRING ASM - 6599-0001
13 110634-01-713 EAREAR END CAP KIT - 7504-0001
110634-01-714 EASTAKE - (4 PER BAG) - 5208-0001
110634-01-715 EAWAND - PULL DOWN - 7604-0001
111037-01-01A EASPACER-AWNING, UPPER - BLACK
111038-01-01A EASPACER-AWNING, LOWER - BLACK
EXTERIOR BODY GROUP (CONTINUED)
AWNING & HARDWARE
