HEATING & AIR CONDITIONING GROUP (CONTINUED)
CEILING ASSEMBLY 13,500 BTU A/C
HEATING & AIR CONDITIONING GROUP (CONTINUED)

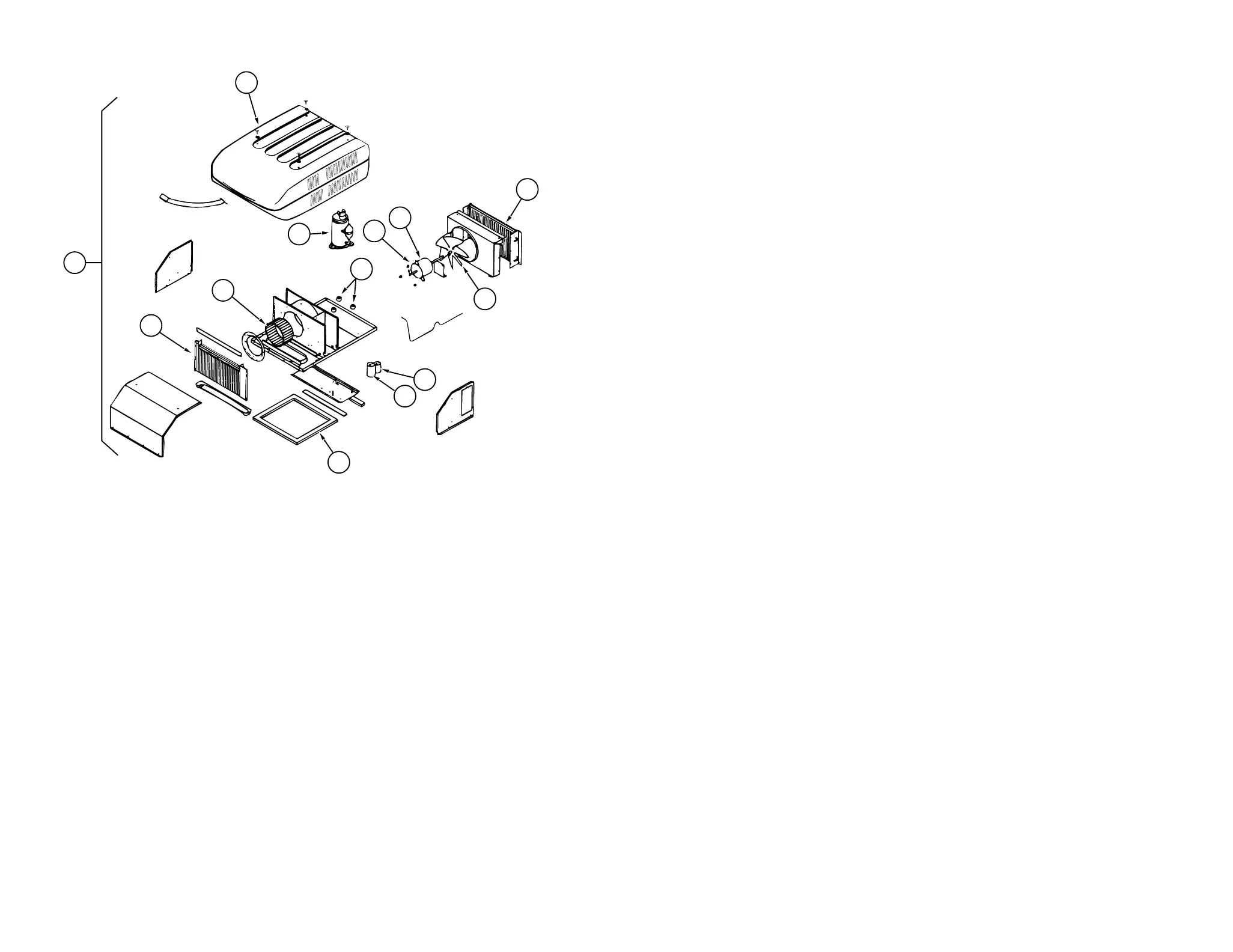

13,500 BTU COLEMAN ROOF A/C - EUROPEAN
KEYPART NUMBER U/MDESCRIPTION
1 108889-02-01A EAA/C-ROOF, 13,500 BTU - TSR 220 - IVORY - COLEMAN 7373-597
093306-01-701 EADECAL PACKAGE-LEFT & RIGHT - COLEMAN 6798B3591
2 093763-01-712 EAFAN BLADE-CONDENSER, COLEMAN 6733-3221
105620-01-705 EAPROTECTOR-OVERLOAD, RH & LH - COLEMAN 6759-3791
3 105620-01-706 EAFOOT PACKAGE-COMPRESSOR, 3 PER PACKAGE - COLEMAN 6759-3081
4 108889-02-701 EAMOTOR, COLEMAN 1468-3059
5 108889-01-706 EAIMPELLOR - COLEMAN 1472-1041
6 108889-01-708 EACAPACITOR-FAN, (7.5MFD.370U) - COLEMAN 1499-5461
7 108889-01-711 EAGASKET PACKAGE - COLEMAN 6792-3301
8 108889-01-715 EAMOTOR MOUNT & SHAFT SEAL KIT - COLEMAN 6792-3361
9 063903-01-700 EASHROUD, COLEMAN 6759-4601
10 108889-01-703 EACONDENSER COIL - COLEMAN 1452-1301
11 108889-02-700 EACOMPRESSOR-TECUMSEH, COLEMAN 1452-2029
12 108889-01-707 EACAPACITOR-RUN, COMPRESSOR-25MFD/370 - COLEMAN 1499-5661
13 108889-01-709 EAEVAPORATOR COIL - COLEMAN 1452-1311
108889-01-710 EAFILLER PAD-CONDENSER AIR SEAL - COLEMAN 6759A3971
108889-01-713 EASUCTION LINE, (3/8" OD X .032" WALL - COLEMAN 6792-130
108889-01-714 EADISCHARGE LINE ASSEMBLEY - COLEMAN 6792-531
108889-02-702 EACAPACITOR-START, COLEMAN 1497-0891
108889-02-703 EARELAY-START, COLEMAN 1497-4141
102289-01-000 EASPRING-SCREW, ROOF A/C GASKET - COLEMAN 6757-150
CEILING ASSEMBLY 13,500 BTU A/C - EUROPEAN
KEYPART NUMBER U/MDESCRIPTION
108891-01-01A EACEILING ASM-A/C COOL TSR HO - COLEMAN 7330-714 IV
042204-01-709 EATHERMOSTAT-IN 64-OUT 58, COLEMAN 6701-3401
063903-01-702 EALOUVER-COLEMAN 6703A5191
073742-01-701 EASELECTOR SWITCH (5 TERMINAL), COLEMAN 6759-3251
073742-01-702 EADECAL COOL ONLY, COLEMAN 6759C3431
076303-01-707 EAFILTER - 6" X 14 3/4" X 1/2", 12 PER PKG - COLEMAN 6703A3151
081606-01-712 EACEILING SHROUD (IVORY), COLEMAN 6769-5061
091225-01-713 EAKNOB (2 PER PACKAGE), COLEMAN 6701-3351
091225-01-717 EADECAL (THERMOSTAT) COOL ONLY, COLEMAN 6799A3441
093766-02-701 EADECAL-LEFT SIDE, COLEMAN 6799-3971
108891-01-700 EASINGLE PARTS PACKAGE (KNOBS &NUTS) COLEMAN 6792-5991
108891-01-701 EARETAINER CLIPS F/FILTER (6 PER) COLEMAN 6799-3141
9
10
4
8
11
3
2
13
5
7
12
6
1
KEYPART NUMBER U/MDESCRIPTION
108891-01-01A EACEILING ASM-A/C COOL TSR HO - COLEMAN 7330-714 IV
042204-01-709 EATHERMOSTAT-IN 64 OUT 58, COLEMAN 6701-3401
063903-01-702 EALOUVER-COLEMAN 6703A5191
073742-01-701 EASELECTOR SWITCH (5 TERMINAL), COLEMAN 6759-3251
073742-01-702 EADECAL COOL ONLY, COLEMAN 6759C3431
076303-01-707 EAFILTER - 6" X 14 3/4" X 1/2", 12 PER PKG - COLEMAN 6703A3151
081606-01-712 EACEILING SHROUD (IVORY), COLEMAN 6769-5061
091225-01-713 EAKNOB (2 PER PACKAGE), COLEMAN 6701-3351
091225-01-717 EADECAL (THERMOSTAT) COOL ONLY, COLEMAN 6799A3441
093766-02-701 EADECAL-LEFT SIDE, COLEMAN 6799-3971
108891-01-700 EASINGLE PARTS PACKAGE, COLEMAN 6792-5991
108891-01-701 EARETAINER CLIPS F/FILTER, COLEMAN 6799-3141
