WINDOW, VENT & EXTERIOR DOOR GROUP (CONTINUED)

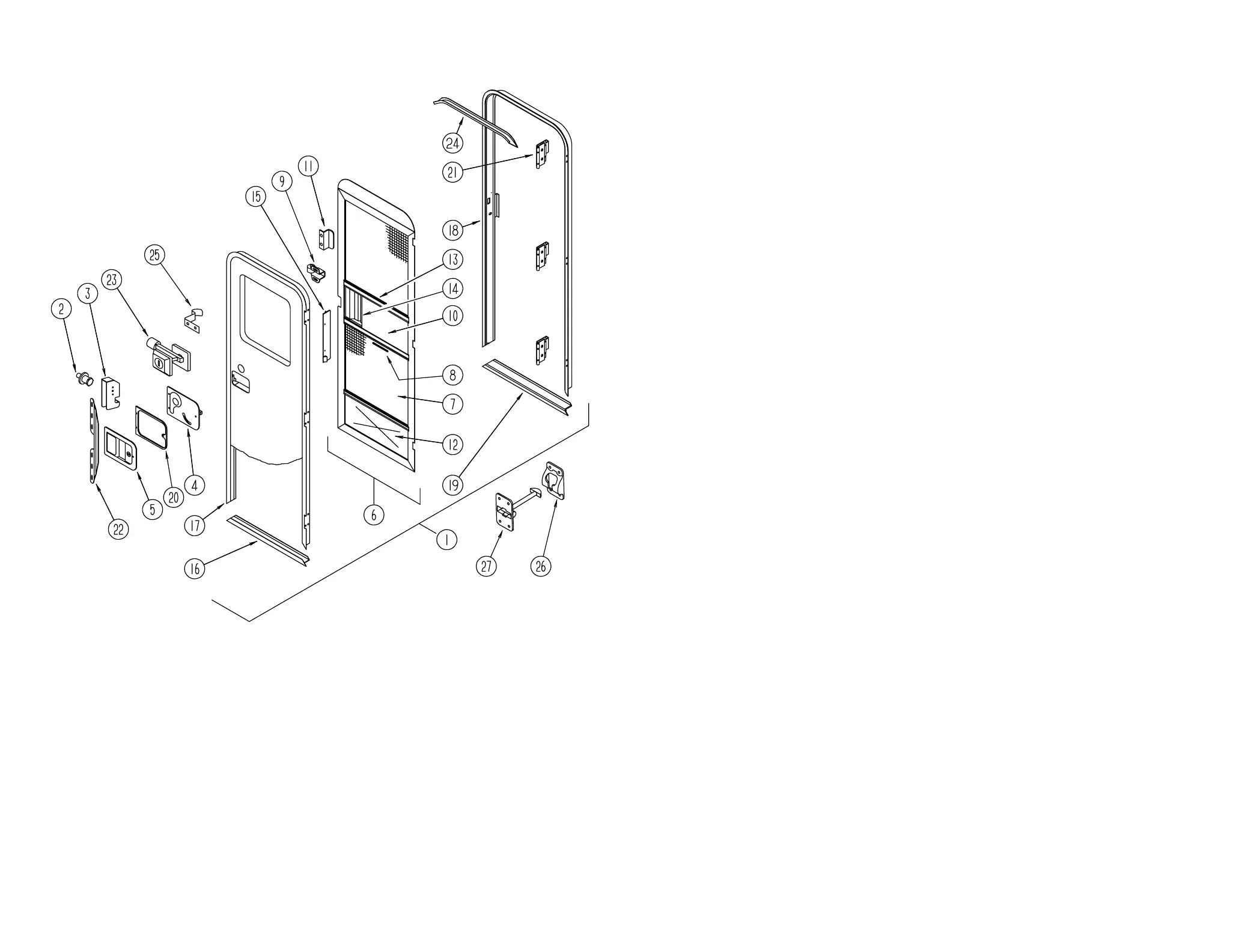

ENTRANCE DOOR W/O WINDOW
KEYPART NUMBER U/MDESCRIPTION
2 039539-01-000 EASTRIKE-LOCK, ENTRY DOOR - ROUND W/THREADED WASHER
3 039540-01-000 EALATCH MECHANISM-HOOK, ENTRY DOOR - INTERIOR
039715-01-000 EANUT-SERT, 1/4" DIAMETER - 20 THREADS
4 039979-04-000 EACOVER-INTERIOR LATCH, W/TRIP ARM - RIGHT - BLACK
039984-01-000 EACAP-ROUND, VINYL - .28" ID X .62" LONG - BLACK
041546-05-000 EABRACKET-DOOR ANGLE, 5" X 1.9" - OFF WHITE - METAL
5 045017-11-000 EALATCH-ENTRY DOOR, MECHANISM W/LOCK & KEY - BLACK
045017-11-701 EAKEY BLANK
063729-04-000 EARIVNUT, 10-32 UNF - .010-.080
058806-03-000 EAPLUG-TAPERED, PLASTIC - 1.06" DIAMETER - RED
075671-04-000 FT SEAL-SPONGE, LAZY T SHAPE - W/ADHESIVE STRIPE - .5" WIDE
6 079012-09-F15 EADOOR-SCREEN, OFF WHITE
FROM: 00-00-00 THRU: 09-18-94
6 079012-09-F24 EADOOR-SCREEN, BRIGHT WHITE
FROM: 09-19-94 THRU: 99-99-99
7 002293-02-000 SFSCREENING-WINDOW/DOOR, 26" - CHARCOAL
8 002294-01-000 FT SPLINE-SCREENING, .135" X .138" - BLACK
9 109403-01-000 EACATCH-ASM-SINGLE ROLLER
10 016454-01-000 EAINSERT-CENTER, LEATHER GRAIN ALUMINUM - UNPAINTED
10 001014-01-013 EAINSERT-CENTER, 10.25" X 16.31" - UNPAINTED
KEYPART NUMBER U/MDESCRIPTION
1 115108-01-FC4 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHT (F24/F27)
FROM: 00-00-00 THRU: 10-23-94
1 115108-01-FC5 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHITE (F25)
FROM: 00-00-00 THRU: 10-23-94
1 115108-01-FC6 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHITE (F26)
FROM: 00-00-00 THRU: 10-23-94
1 115108-05-F24 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHT (F24/F27)
FROM: 10-24-94 THRU: 99-99-99
1 115108-05-F25 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHITE (F25)
FROM: 10-24-94 THRU: 99-99-99
1 115108-05-F26 EADOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHITE (F26)
FROM: 10-24-94 THRU: 99-99-99
11 050712-04-000 EAHANDLE-SCREEN DOOR, ALUMINUM - OFF WHITE
11 050712-06-000 EAHANDLE-SCREEN DOOR, ALUMINUM - BRIGHT WHITE
12 078552-03-000 EAKICK PANEL-SCREEN DOOR, LOWER INSERT - UNPAINTED
078595-01-000 EATOP PLATE-SCREEN DOOR, CURVED TOP - 4.7" X 25.35"
13 078777-01-000 EACHANNEL-SLIDE, SCREEN DOOR CENTER SLIDER COVER
14 079086-02-000 EASLIDER-SCREEN DOOR, OFF WHITE
14 079086-03-000 EASLIDER-SCREEN DOOR, BRIGHT WHITE
15 079087-02-000 EASTRIKE-SLIDER, W/LIP FOR ELBOW CATCH - 1.5" X 8.6" - OFF WHITE
15 079087-03-000 EASTRIKE-SLIDER, W/LIP FOR ELBOW CATCH - 1.5" X 8.6" - BRIGHT WHITE
081914-01-000 EABUMPER-RUBBER, ROUND - .43" DIAMETER - BLACK
104692-01-000 FT SEAL-3/4" X 3/4", ADHESIVE BACK
16 089748-21-000 EAFRAME-BOTTOM, ENTRY DOOR - 24.8" LONG - BRIGHT WHITE
17 095276-07-03A EAFRAME-ENTRY DOOR, W/O BOTTOM - BRIGHT WHITE
18 095277-08-03A EAJAMB-ENTRY DOOR, W/BOTTOM - BRIGHT WHITE
FROM: 00-00-00 THRU: 10-23-94
18 095277-09-02A EAJAMB-ENTRY DOOR, W/BOTTOM - BRIGHT WHITE
FROM: 10-24-94 THRU: 99-99-99
19 051049-01-000 EAJAMB-BOTTOM, ENTRY DOOR - 25.9" - UNPAINTED
20 096810-01-01A EAPLATE-LATCH, ENTRY DOOR - PLASTIC - BLACK
21 106719-01-01A EAHINGE-ENTRY DOOR, UNPAINTED
22 098173-01-04A EASTIFFENER-ENTRY DOOR, SUPPORTS LATCH/STRIKE AREA - UNPAINTED
100128-02-000 FT SEAL-FOAM, ADHESIVE BACK - .37" WIDE X .37" THICK - SCREEN DOOR
23 101145-01-01A EADEADBOLT-ENTRY DOOR, W/2 KEYS W/O BACK SET BOLT OR SCREWS
095229-01-700 EAKEY BLANK FOR DEADBOLT
101147-01-000 EABOLT-SECURITY, 4.12" BACKSET
102524-01-000 EABUMPER-RUBBER, FLAT - BLACK
24 044582-44-000 EACAP-DRIP, ENTRY DOOR - JAMB MOUNTED - ALUMINUM - BRIGHT WHITE
115222-01-01A EAGARNISH-RADIUS, ENTRY DOOR - OFF WHITE
077461-03-000 EACOVER-STRIKE, ENTRY DOOR - 6.5" X 2.5" - PLASTIC - WHITE
091876-01-000 EARETAINER-DOOR, 1.9" X .8" - METAL
25 100412-01-000 EACATCH-SCREEN DOOR, THUMB CLIP W/BLACK PLASTIC CAP
26 104099-02-02A EACATCH-DOOR HOLDER, RETAINER - OFF WHITE
26 104099-02-04A EACATCH-DOOR HOLDER, RETAINER - BRIGHT WHITE
27 104099-01-02A EACATCH-DOOR HOLDER, STRIKE - OFF WHITE
27 104099-01-04A EACATCH-DOOR HOLDER, STRIKE - BRIGHT WHITE
009126-02-000 EAHANDLE-ASSIST, ENTRY DOOR - BLACK
