PM00PCII
WIRQUIN Ltd.
Warmsworth Halt Industrial Estate, Warmsworth, Doncaster DN4 9LS, United Kingdom
Technical and Sales enquiries: 0044 (0) 333 222 4488
Email: sales@wirquin.co.uk www.macdee-wirquin.co.uk

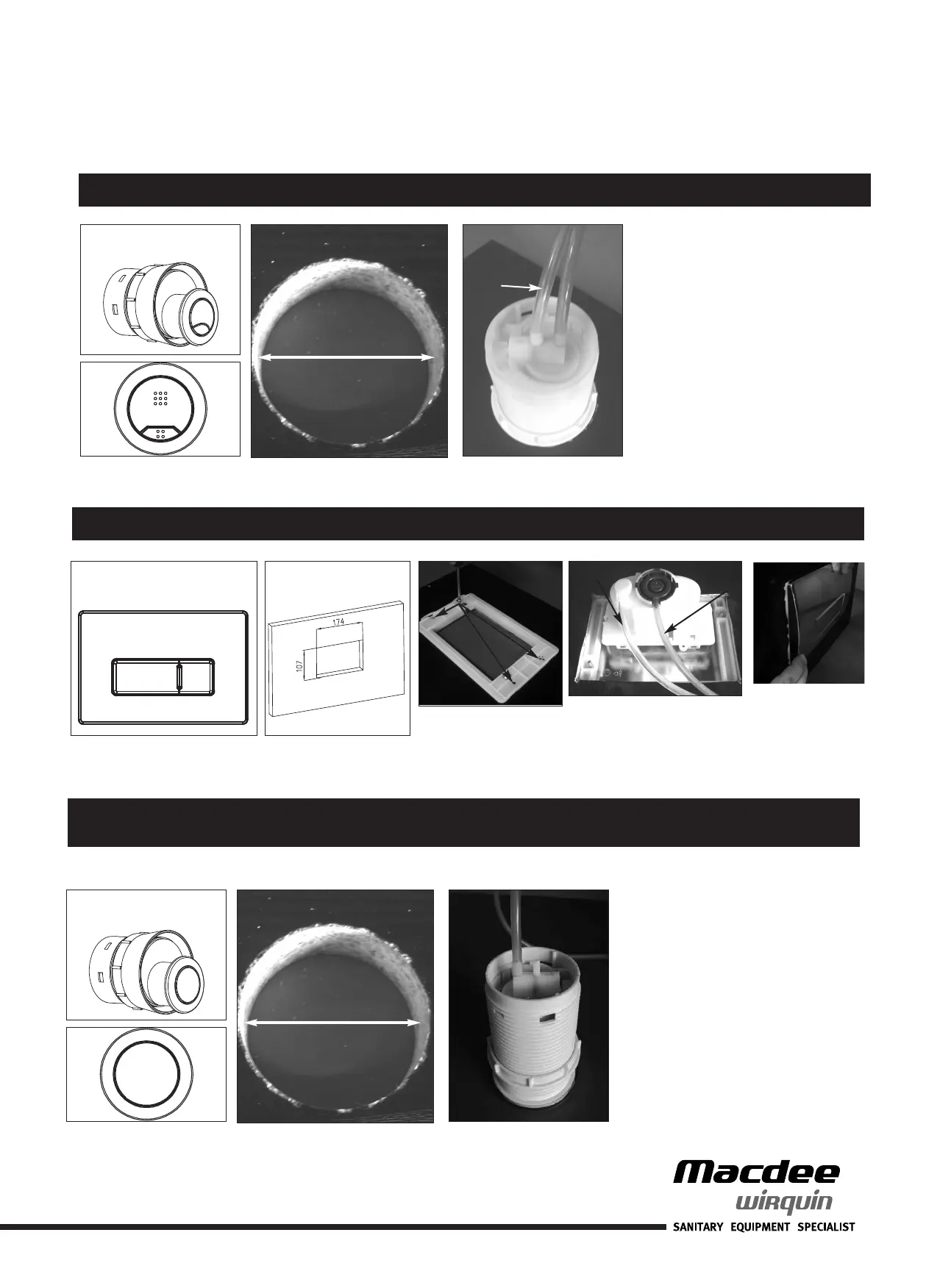

D
UAL FLUSH BUTTON ASSEMBLY
KARA 50mm &
KARA 72mm Buttons
1
. Cut out 38mm hole for Kara 50 and
61mm hole for Kara 72.
2. Put the threaded tail of the button
through the hole and hand tighten the
backnut.
3. Connect the hoses to the button, blue
hose to the end of the barrel nozzle,
clear to the centre nozzle.
KARA 50mm & KARA 72mm DUAL FLUSH BUTTONS
CHROME
PUSH BUTTON
38mm CUT OUT Kara 50
61mm CUT OUT Kara 72
Clear
HOSE
CONNECTOR
CASPIA DUAL FLUSH PUSHPLATES
Blue
Clear
Connect the hoses as follows :
Blue to Centre Blue Cap
and Clear to white cap as shown
Clip on the push plate
as above, to remove the
push plate push the
buttons in and pull left
to unclip
AVAILABLE IN CHROME
MATT OR WHITE FINISHES
CUT OUT
DIMENSIONS
Fix using 4 screws
as indicated
KARA 50mm & KARA 72mm SINGLE FLUSH BUTTONS
SINGLE FLUSH BUTTON ASSEMBLY
KARA 50mm &
KARA 72mm Buttons
1. Cut out 38mm hole for Kara 50 and
61mm hole for Kara 72.
2. Put the threaded tail of the button
through the hole and hand tighten the
backnut.
3. Connect the hoses to the button, clear
to the end of the barrel nozzle.
CHROME
PUSH BUTTON
38mm CUT OUT Kara 50
61mm CUT OUT Kara 72
Clear
HOSE
CONNECTOR
KARA PUSH BUTTONS and CASPIA Push Plates
