4
Power Edition 40 E-1 - Power Edition 40 EA-1
F

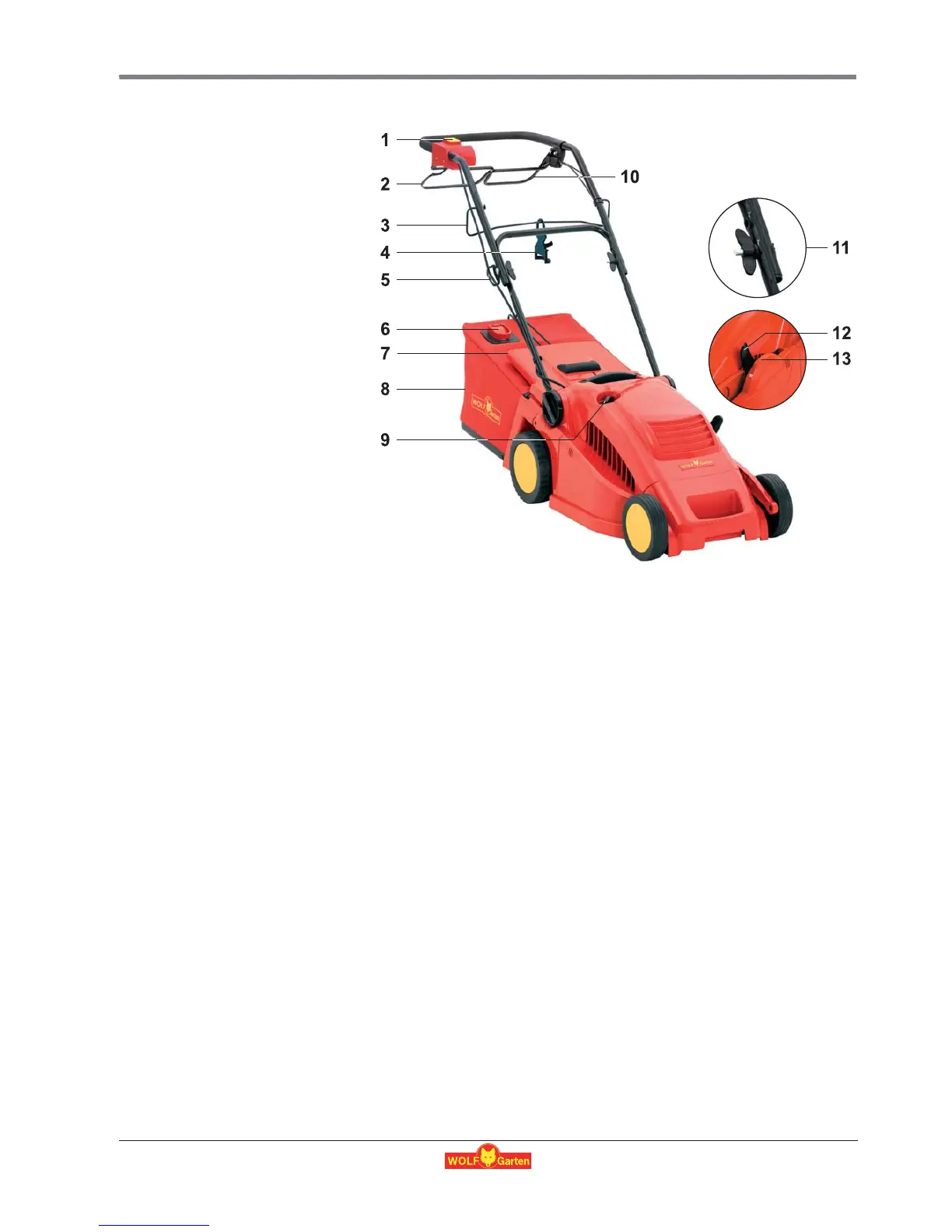

1 Interrupteur
2 Etrier du mécanisme d‘entranement (Po-
wer Edition 40 EA-1)
3 Guide-cable (Flick/Flack®)
4 Cable-fixe
5 Protection antipliage du câble
6 Indicator du niveau de remplissage
7 Clapet de sécurité
8 Sac de ramassage
9 Commutateur CCM (cut-collect-mulch)
10 Etrier de sécurité
11 Réglage de la hauteur du guidon
12 Reglage de la hauteur de coupe
13 Croquis de la hauteur de coupe
I
1 Interrutore per avviare
2 Archi di azionamento (Power Edition 40
EA-1)
3 Slitta (Flick/Flack®)
4 Portacavo
5 Regolazione profondit di lavoro
6 Indicatore di pieno carico
7 Deflettore
8 Raccoglierba
9 Interruttore CCM (cut-collect-mulch)
10 Archi di sicurezza
11 Regolazione altezza impugnatura
12 Regolazione dell‘altezza di taglio
13 Indicator dell‘ altezza
n
1 In- en uitschakelaar
2 Aandrijfbeugel (Power Edition 40 EA-1)
3 Kabelgeleiding (Flick/Flack®)
4 Kabel trekontlaster
5 Kabel knikbeschermer
6 Vulindikator
7Achterklep
8 Grasvangzak
9 CCM-Schakelaar (cut-collect-mulch)
10 Veiligheidsbeugel
11 Duwboomhoogte instelling
12 Maaihoogte instelling
13 Maaihoogte aanwijzing
T
1 Açma/Kapama alteri
2
Tahrik maas (Power Edition 40 EA-1)
3 Kablo yolu (Flick/Flack®)
4 Kablo çekme kuvveti azaltcs
5 Kablo bükülme korumas
6 Dolum durumu göstergesi
7 Koruyucu kapak
8 Çimen toplama torbas
9 CCM-alteri (cut-collect-mulch)
10
Emniyet maas
11 Tutma yükseklii ayar
12 Kesme yükseklii ayar
13 Kesme yükseklii göstergesi
g
1   /

2
  (Power Edition 40 EA-1)
3   (Flick/Flack®)
4  
5   
6   
7  
8   
9  CCM (cut-collect-mulch)
10
 
11   
12   
13   
D
1 Ein-/ Ausschalter
2 Antriebsbügel (Power Edition 40 EA-1)
3 Kabelführung (Flick/Flack®)
4 Kabelzugentlastung
5 Kabelknickschutz
6 Füllstandsanzeige
7 Schutzklappe
8 Grasfangsack
9 CCM-Schalter (cut-collect-mulch)
10 Sicherheitsbügel
11 Griffhöheneinstellung
12 Schnitthöheneinstellung
13 Schnitthöhenanzeige
G
1 On-/Off-switch
2 Driving bar (Power Edition 40 EA-1)
3 Cable-guide (Flick/Flack®)
4 Cable-kink protection
5 Cable anti-king protection
6 Filling indicator
7 Deflector plate
8 Collector
9 CCM switch (cut-collect-mulch)
10 Operator presence bail arm
11 Handle height adjustment
12 Height adjustment
13 Indicator to cutting
